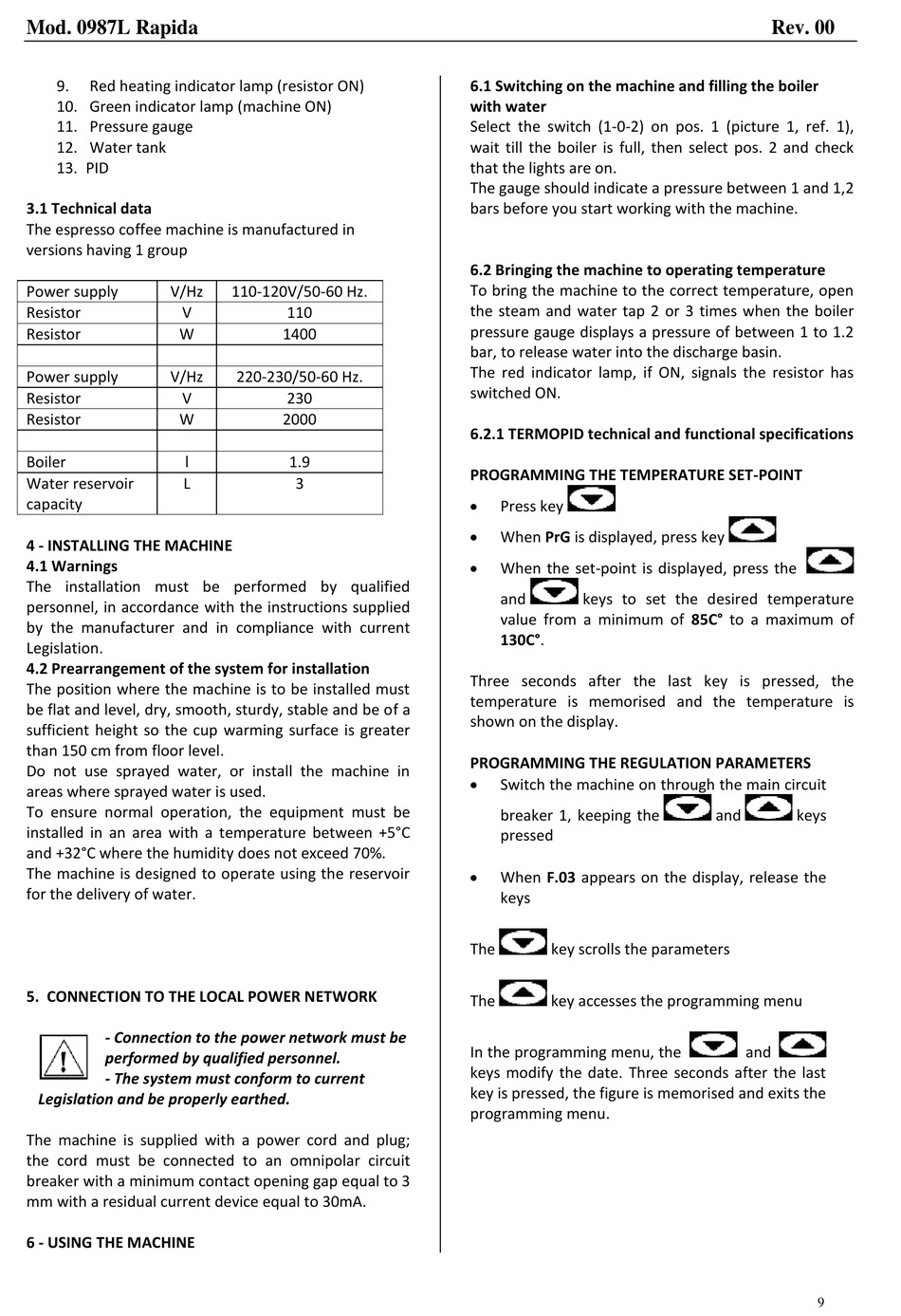

Mod. 0987L Rapida
9.
Red heating indicator lamp (resistor ON)
10. Green indicator lamp (machine ON)
11. Pressure gauge
12. Water tank
13. PID
3.1 Technical data
The espresso coffee machine is manufactured in
versions having 1 group
Power supply
V/Hz
Resistor
V
Resistor
W
Power supply
V/Hz
Resistor
V
Resistor
W
Boiler
l
Water reservoir
L
capacity
4 - INSTALLING THE MACHINE
4.1 Warnings
The installation must be performed by qualified
personnel, in accordance with the instructions supplied
by the manufacturer and in compliance with current
Legislation.
4.2 Prearrangement of the system for installation
The position where the machine is to be installed must
be flat and level, dry, smooth, sturdy, stable and be of a
sufficient height so the cup warming surface is greater
than 150 cm from floor level.
Do not use sprayed water, or install the machine in
areas where sprayed water is used.
To ensure normal operation, the equipment must be
installed in an area with a temperature between +5°C
and +32°C where the humidity does not exceed 70%.
The machine is designed to operate using the reservoir
for the delivery of water.
5. CONNECTION TO THE LOCAL POWER NETWORK
- Connection to the power network must be
performed by qualified personnel.
- The system must conform to current
Legislation and be properly earthed.
The machine is supplied with a power cord and plug;
the cord must be connected to an omnipolar circuit
breaker with a minimum contact opening gap equal to 3
mm with a residual current device equal to 30mA.
6 - USING THE MACHINE
110-120V/50-60 Hz.
110
1400
220-230/50-60 Hz.
230
2000
1.9
3
6.1 Switching on the machine and filling the boiler
with water
Select the switch (1-0-2) on pos. 1 (picture 1, ref. 1),
wait till the boiler is full, then select pos. 2 and check
that the lights are on.
The gauge should indicate a pressure between 1 and 1,2
bars before you start working with the machine.
6.2 Bringing the machine to operating temperature
To bring the machine to the correct temperature, open
the steam and water tap 2 or 3 times when the boiler
pressure gauge displays a pressure of between 1 to 1.2
bar, to release water into the discharge basin.
The red indicator lamp, if ON, signals the resistor has
switched ON.
6.2.1 TERMOPID technical and functional specifications
PROGRAMMING THE TEMPERATURE SET-POINT
Press key
When PrG is displayed, press key
When the set-point is displayed, press the
and
keys to set the desired temperature
value from a minimum of 85C° to a maximum of
130C°.
Three seconds after the last key is pressed, the
temperature is memorised and the temperature is
shown on the display.
PROGRAMMING THE REGULATION PARAMETERS
Switch the machine on through the main circuit
breaker 1, keeping the
pressed
When F.03 appears on the display, release the
keys
The
key scrolls the parameters
The
key accesses the programming menu
In the programming menu, the
keys modify the date. Three seconds after the last
key is pressed, the figure is memorised and exits the
programming menu.
Rev. 00
and
keys
and
9
9
