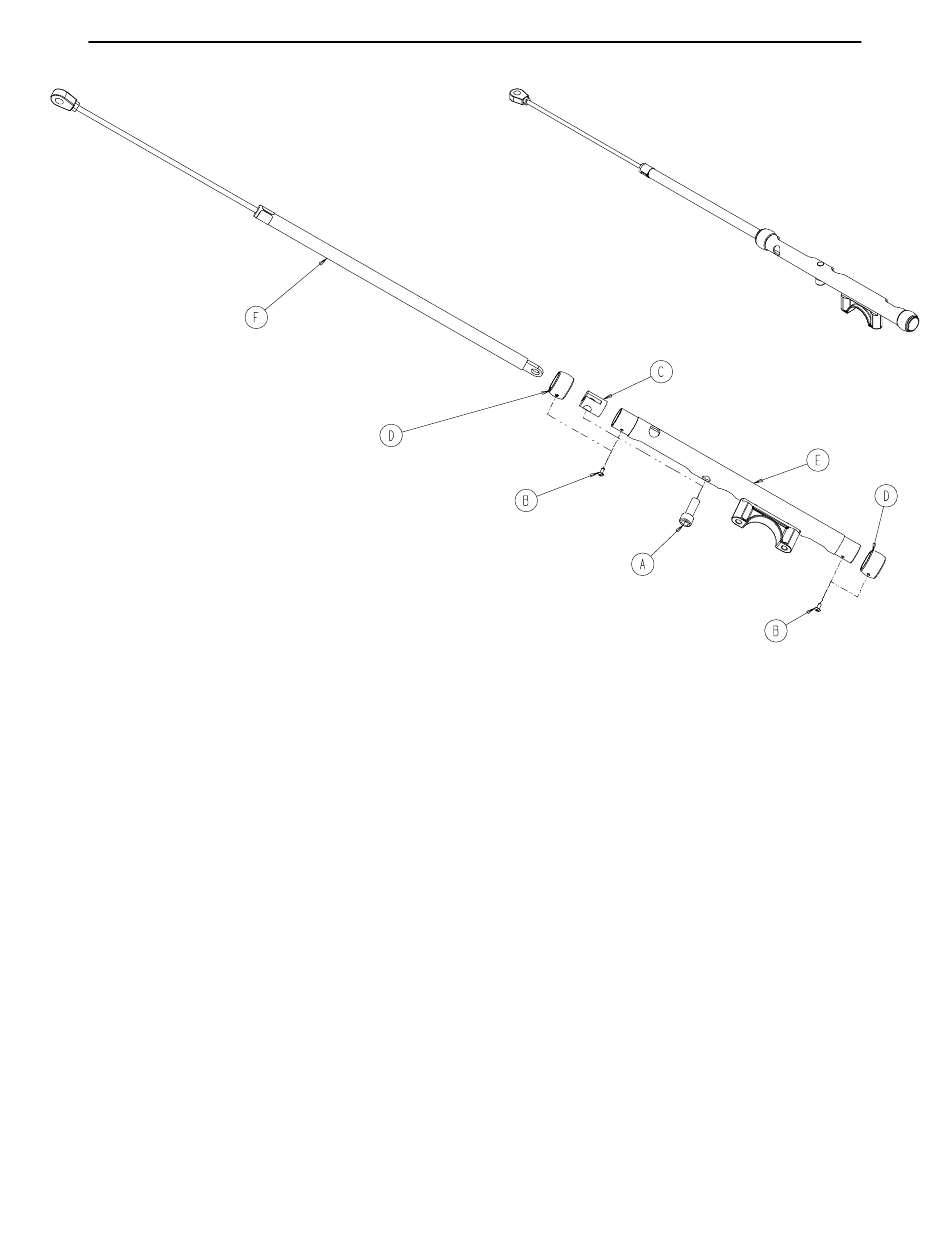

Load Slide Tube Assembly

Assembly part number 6100–3–18 (reference only)
Item
A
B
C
D
E
F
Part No. Part Name
4–164 Socket Hd. Cap Screw
25–40 Blind Rivet
6100–3–116 Cylinder Mounting Block
6100–3–190 Lock Tube Slide Bearing
6100–3–250 Hd. End Load Slide Tube Wldmt. 1
6100–3–27 Pneumatic Spring Assembly
23
Qty.
1
2
1
2
1
