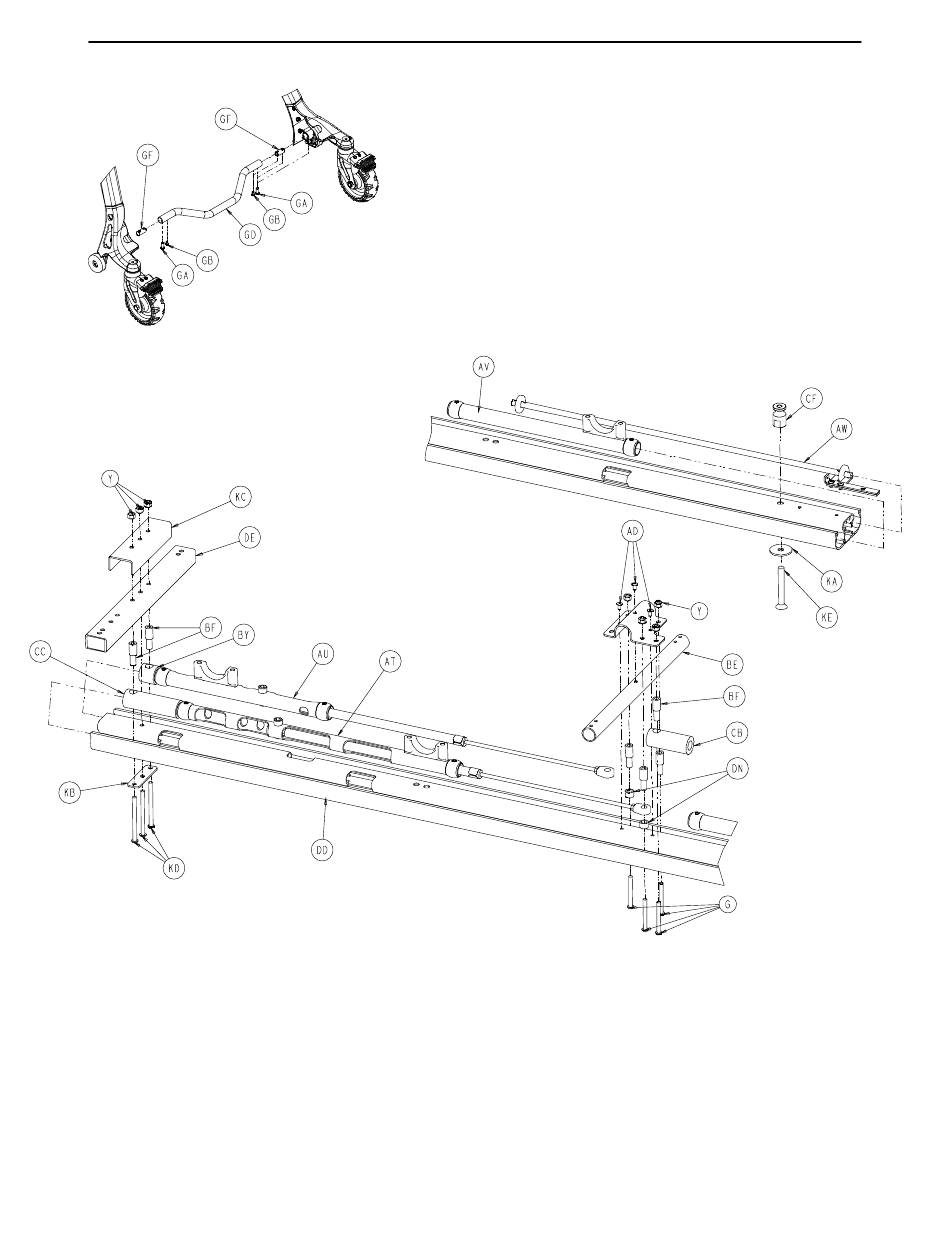

Base Assembly and Options
AS / NZS 4535 OPTION – PART NUMBER 6100–18
Item Part No.
KA 6100–18–11
KB 6100–18–12
KC 6100–18–13
KD 3–206
KE 3–83
RETAINING POST OPTION – P/N 6100–14
Item Part No.
GA 4–484
GB 25–79
GC 6100–3–58
GD 6100–3–242
GE 6100–31–120
GF 6100–14–61
Part Name
Washer
Spacer
Support Bracket
Hex Hd. Cap Screw
Hex Hd. Cap Screw
13
Part Name Qty.
But. Hd. Cap Scr. 2
Blind Rivet 2
Retaining Post Wldmt. 1
Foot End Crosstube 1
Retaining Post 1
Threaded Plug 2
Qty.
1
1
1
3
1
