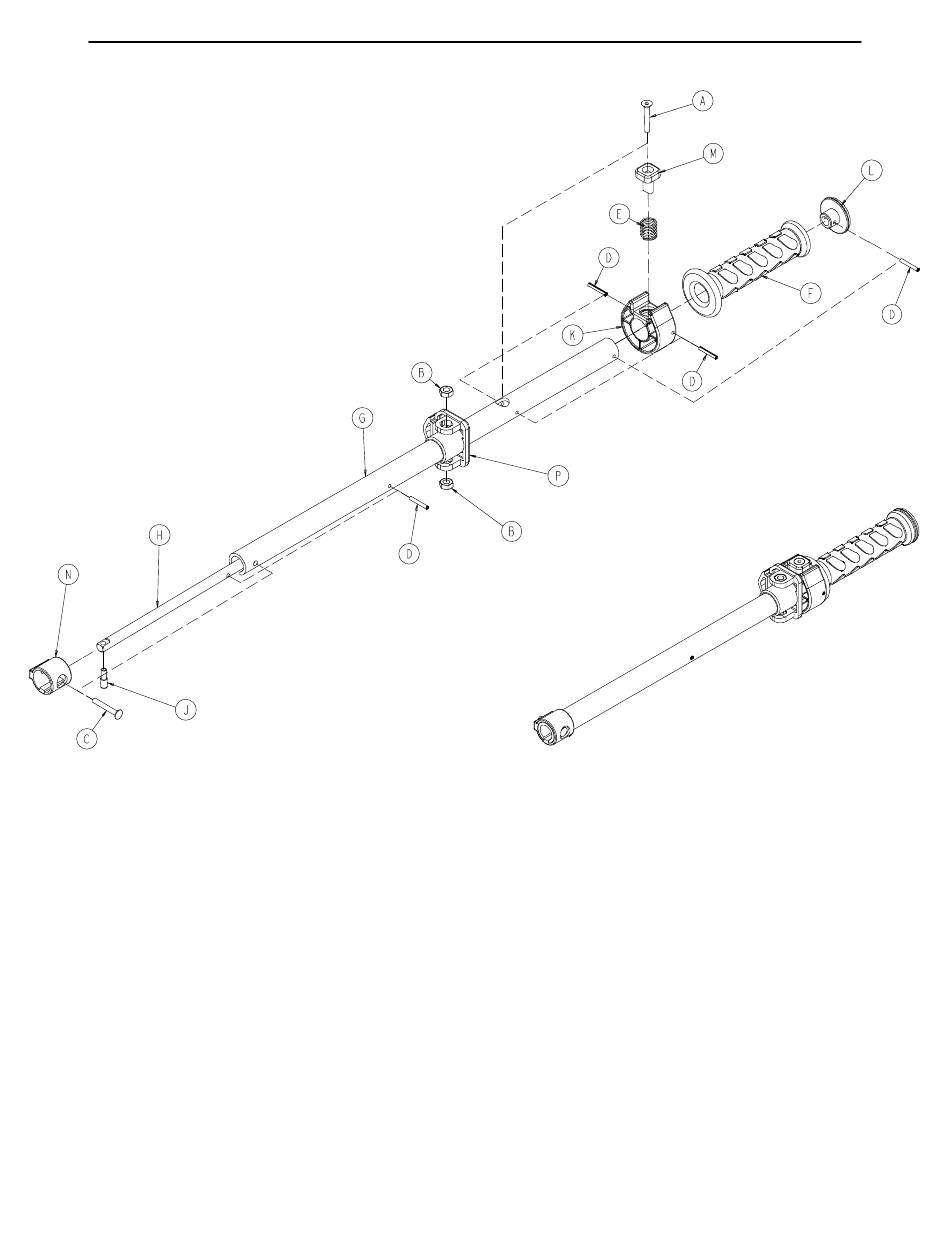

6100–31–12 Litter Hand Grip Extension Assembly #1
Item
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Part No. Part Name
1–138 Flat Countersunk Hd. Cap Screw
15–21 Hex Nut
25–106 Semi–Tubular Rivet
26–312 Coiled Spring Pin
38–462 Compression Spring
6080–40–11 Grip
6100–31–60 Handle Extension Support Tube
6100–31–61 Handle Extension Pivot Lock Lever 1
6100–31–62 Extension Handle Lock Pin
6100–31–63 Handle Extension Collar
6100–31–64 Handle Extension Retaining Plug
6100–31–65 Handle Extension Push Button
6100–31–66 Handle Extension Tube Bushing
6100–231–78 Extrusion End Cap
42
Qty.
1
2
1
4
1
1
1
1
1
1
1
1
1
