Base Assembly and Options

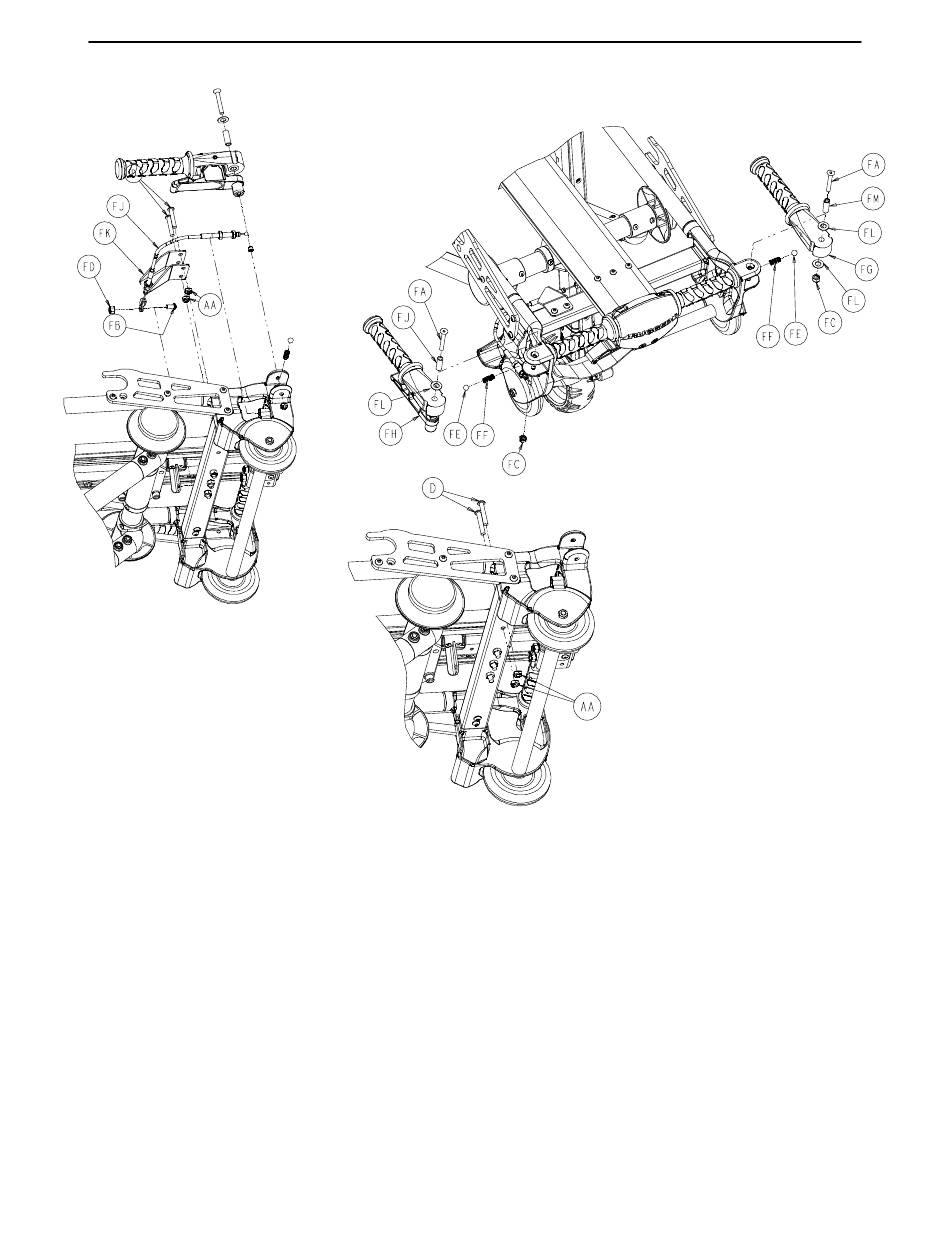

HEAD END BOTTOM VIEW
RETRACTABLE LIFT HANDLE OPTION
NO LIFT HANDLE OPTION
BOTTOM VIEW
RETRACTABLE LIFT HANDLE OPTION – PART NUMBER 6100–10
Item Part No.
FA 1–135
FB 4–232
FC 16–28
FD 16–78
FE 31–136
FF 38–382
FG (page 28)
FH (page 29)
FJ 6100–210–65
FK 6100–210–66
FL 14–20
FM 6100–10–68
Part Name
Flat Ctrsnk. Hd. Cap Scr.
H. Soc. But. Hd. Cap Scr.
Hex Nut
Centerlock Hex Nut
Nylon Ball
Compression Spring
Lift Handle Assembly
Lift Handle Assembly, Lt.
Retract. Handle Pull Cable
Retract. Handle Pull Brkt.
Nylon Washer
Lift Handle Spacer
12
Qty.
2
1
2
1
2
2
1
1
1
1
4
2
