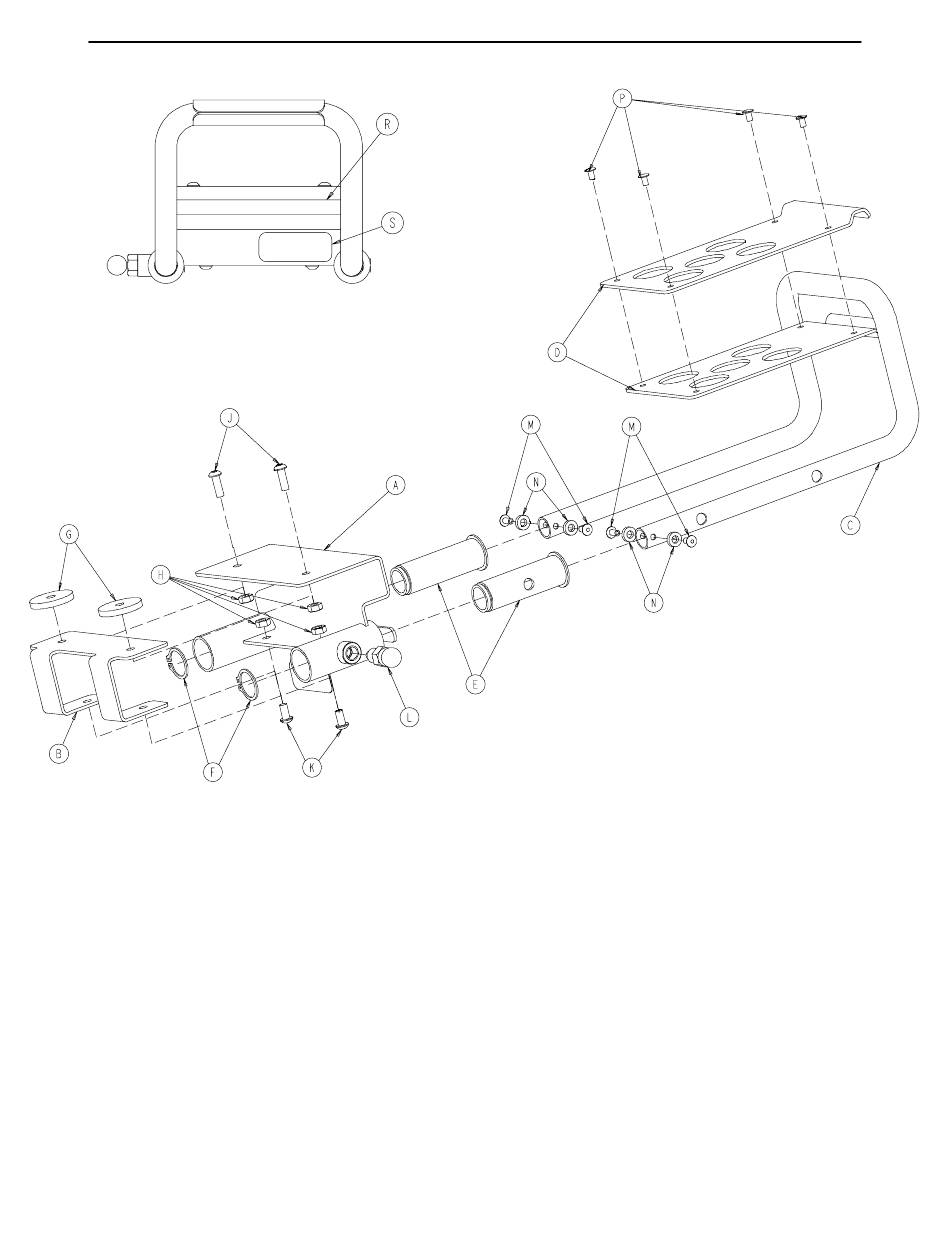

6100–44–12 Optional Head Extension Assembly
Item
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
Part No. Part Name
6100–44–10 Bracket Weldment
6100–44–7 Support
6100–44–11 Extension Tube
6100–44–8 Pillow Support
6100–44–5 Insert
28–76 Clip
6100–44–6 Spacer
16–28 Nylock Nut
4–161 But. Hd. Cap Screw
4–232 But. Hd. Cap Screw
(page 65) Pull Pin Assembly
25–79 Rivet
14–67 Washer
25–31 Semi–Tubular Rivet
6060–90–4 Small Rugged Label
6100–90–13 Specification Label
64
Qty.
1
1
1
2
2
2
2
4
2
2
1
4
4
4
1
1
