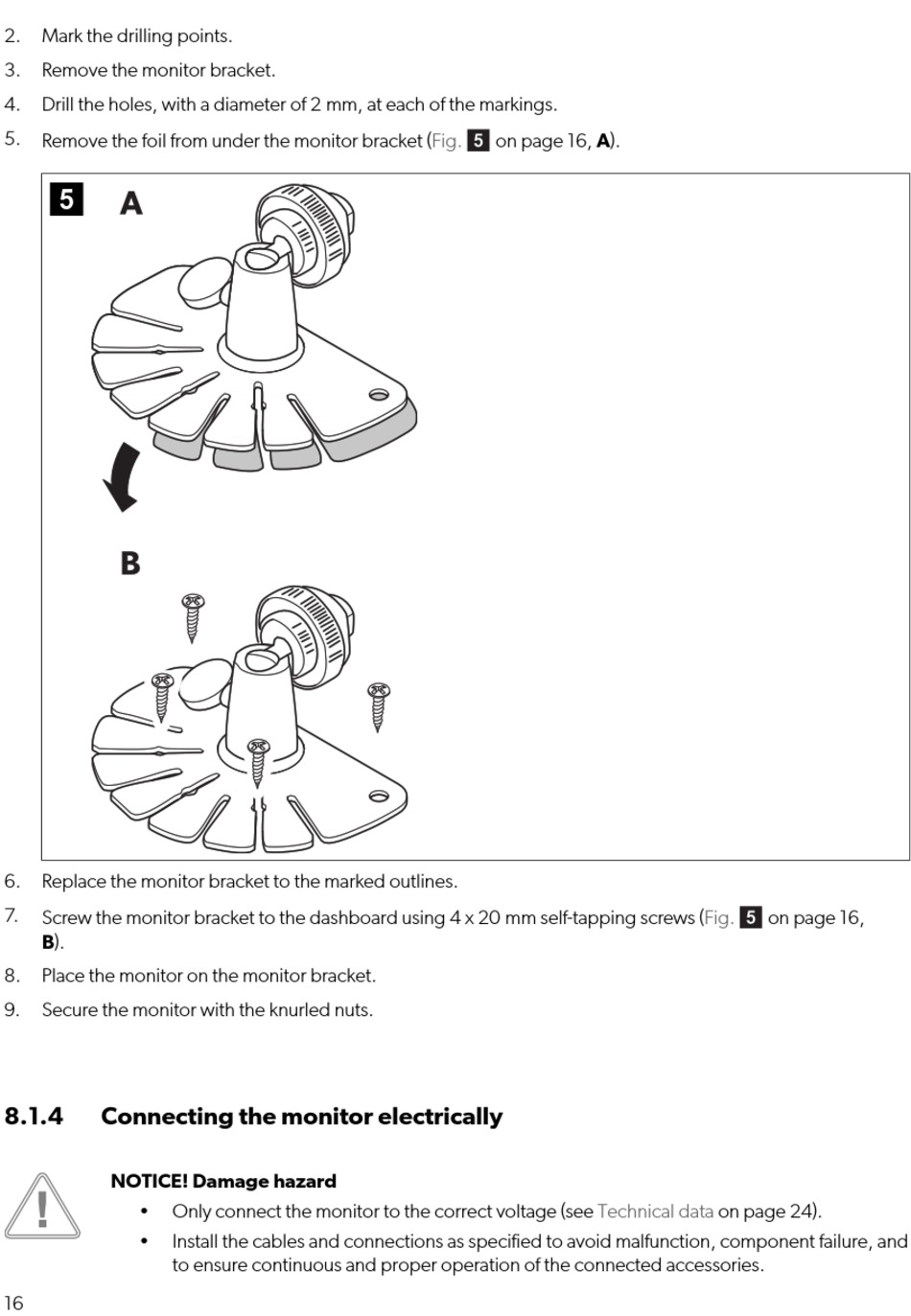

2. Mark the drilling points.
3. Remove the monitor bracket.
4. Drill the holes, with a diameter of 2 mm, at each of the markings.
5. Remove the foil from under the monitor bracket

6. Replace the monitor bracket to the marked outlines.
7.
Screw the monitor bracket to the dashboard using 4 x 20 mm self-tapping screws
B).
8. Place the monitor on the monitor bracket.
9. Secure the monitor with the knurled nuts.
8.1.4 Connecting the monitor electrically
NOTICE! Damage hazard
• Only connect the monitor to the correct voltage (see
• Install the cables and connections as specified to avoid malfunction, component failure, and
to ensure continuous and proper operation of the connected accessories.
16
(Fig.  on page 16, A).
Technical data
(Fig.  on page 16,
on page 24).
