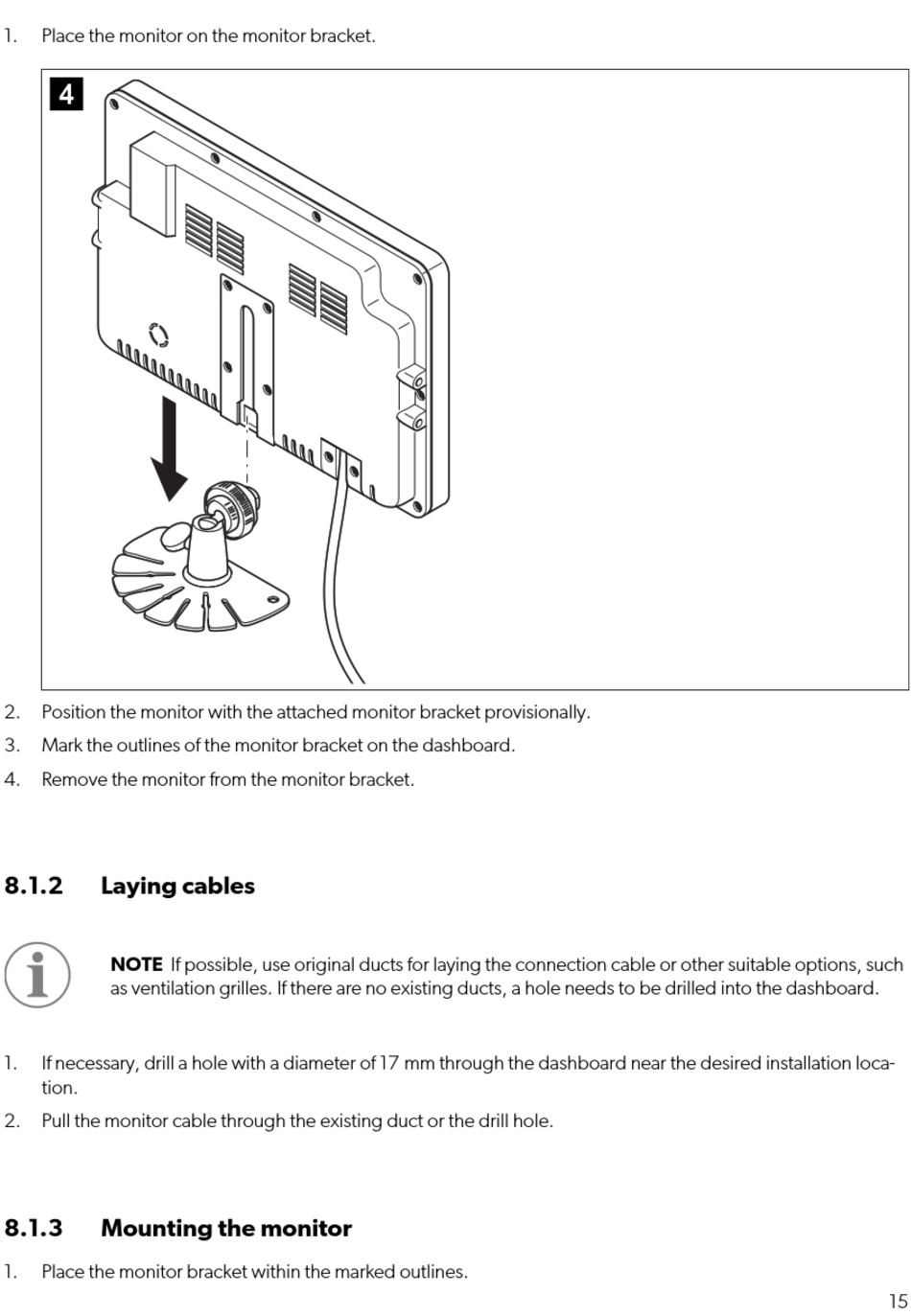

1. Place the monitor on the monitor bracket.

2. Position the monitor with the attached monitor bracket provisionally.
3. Mark the outlines of the monitor bracket on the dashboard.
4. Remove the monitor from the monitor bracket.
8.1.2

Laying cables

NOTE If possible, use original ducts for laying the connection cable or other suitable options, such
as ventilation grilles. If there are no existing ducts, a hole needs to be drilled into the dashboard.
1. If necessary, drill a hole with a diameter of 17 mm through the dashboard near the desired installation loca-
tion.
2. Pull the monitor cable through the existing duct or the drill hole.
8.1.3

Mounting the monitor

1. Place the monitor bracket within the marked outlines.
