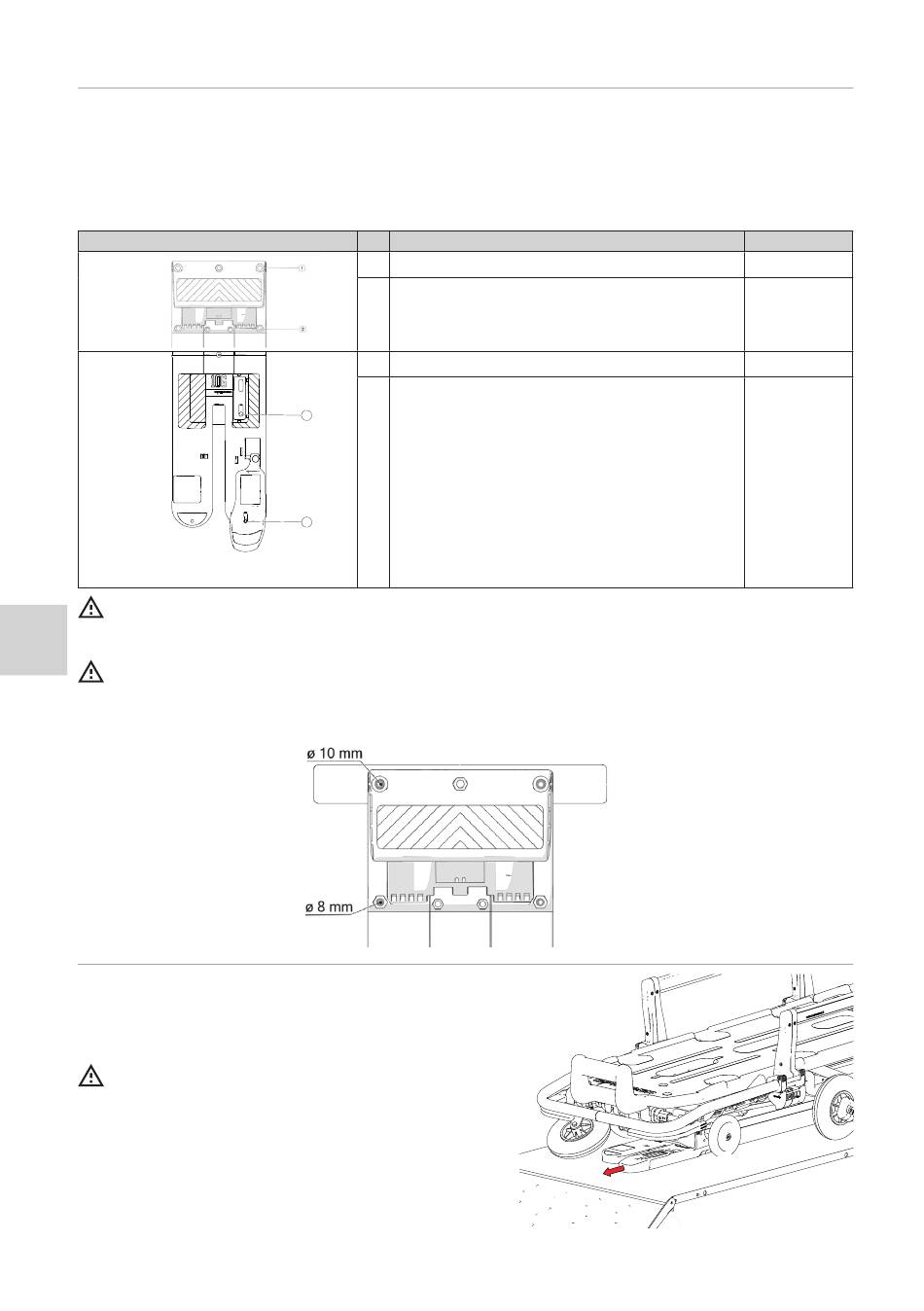

10.2 INSTALLATION
For proper installation of the fastener, it is fundamental that the floor is perfectly horizontal. The surface on which the device is installed, must be perfectly flat both in the
fixing and supporting areas. Failure to comply with these specifications may result in an alteration of the geometry of the device resulting in non-compliance of the device with
its original design specifications.
The structure of the fastener is equipped with 8 holes required for installation; 4 for the front part and 4 for the rear one.
The rear part of the fastener has two pairs of slots which can be accessed by temporarily removing the access covers. For the installation is sufficient to use only a pair of
such slots, but they must be chosen symmetrical with respect to the longitudinal axis of the fastener. It is necessary to choose which slots will be used for the installation
before drilling. Use the fastener as a drilling template of the surface on which the device has to be installed, positioning it parallel to direction of movement of the vehicle.
For the front part, use the four holes at the corners of the front anchor.
The following table shows details of screws to be used:
TAB. 1
IT
Before drilling, you must ensure that no part, component or device in the vehicle is compromised during this phase. Be particularly careful to ensure the integrity and
the possibility of maintenance on circuits and electrical components, structural and any gas pipes.
EN
If the device is installed on a loading platform, the installation must consider also the increased dimensions caused by the use of accessories like front adapters installed on
the stretcher, so that the loading trolley wheel do not protrude from the loading platform.
S-MAX Pro is supplied with two counter-plates to be used for the installation and to be used both on the front and rear part. The safety and functionality of the device
can be seriously compromised if such counter-plates are not used.
DE
After the drilling has been performed, install the device using bolts having suitable length in relation to the thickness of the installation surface according to the specifications
of TAB. 1.
FR
ES
PT
10.3 USE OF THE FASTENER
- Load the stretcher on the loading platform.
- Push the stretcher against the front anchor making sure that the fifth wheel of the stretcher is
correctly inserted inside the seat on the back side if the fastener.
- To release the stretcher from the fastener, pull the red release lever as shown in the picture until
is possible to feel a slight movement of the stretcher.
- Terminate the release of the stretcher pulling it out from the vehicle only after the unlocking
lever has been released. Keeping hands in the vicinity of the lever could lead to crushing injuries.
Warning: After the stretcher has been unlocked, in order to ensure a safe unload from the
ambulance, is necessary to grab the main frame of the stretcher with both hands.
16
ID
1 TCEI 10 x (80 + installation surface thickness)
2 TCEI 8 x (30 + installation surface thickness)
3 TCEI 8 x (20 + installation surface thickness)
3
TPSEI 5 x (30 + installation surface thickness)
4
Note: Left and right side could require different lenghts
4
Bolt Resistance Class
10.9
8.8
8.8
8.8
