DESCRIPTION
1
Fifth wheel insertion area
2
Stretcher release lever
3
Stretcher release lever for Sharp system
4
Metal profile
5
Fixing counter plates
6
Locking flap
7
Front anchor
8.
START UP
Before the first use verify that:
• The packaging is intact and has protected the device during transport
• Check that are present all the components included in the accompanying list.
• Functionality of the device according to the user manual
• The ambulance has installation surfaces capable to ensure compliance with EN 1789 requirements, and allowing an installation that does not compromise the access to
other devices.
• The installation has been carried out like described in this manual and the functionality of the product has been fully verified.
Do not modify for any reason any part or component of the fastener as this may cause injury to the patient and/or rescuers.
If conditions mentioned above are not satisfied, the device cannot be considered secure, safe use is compromised and it is a possible cause of injury for patient and
operators and can cause damage to the device.
It is recommended to practice with the device in non-operating conditions before the regular start-up.
For instructions on use after start-up, follow the operations described on paragraph 12.
If the above conditions are met, the device may be considered ready for use; otherwise you must immediately remove the device from service and contact the manufacturer. .
Do not alter or modify in any way the appliance; any such interference could cause malfunctions and injury to the patient and/or rescuer. Moreover the manufacturer will
no longer recognize the product warranty and will accept no responsibility.
9.

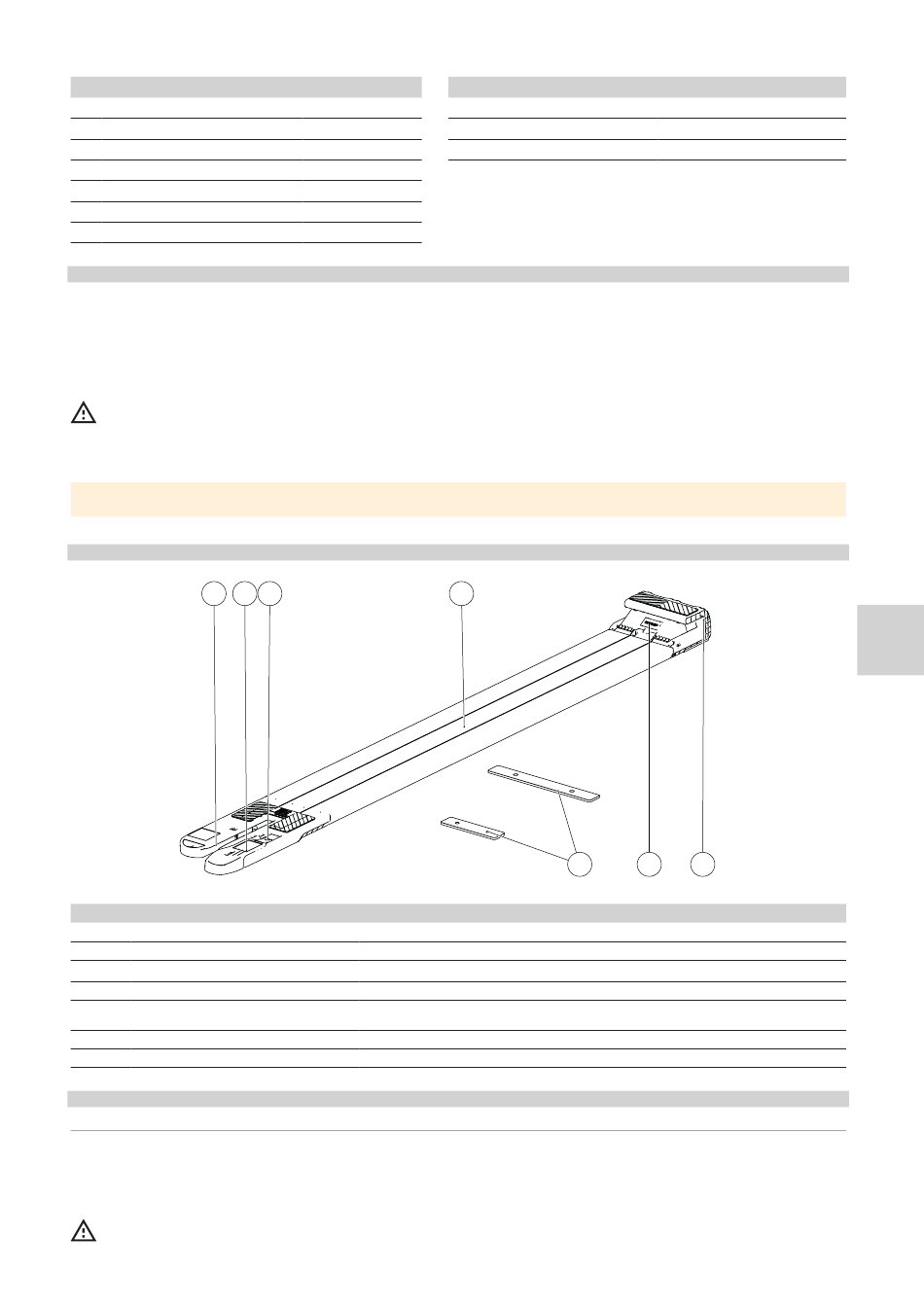

FUNCTIONAL CHARACTERISTICS
A
B
ELEMENT
DESCRIPTION
A
Fifth wheel insertion area
B
Stretcher release lever
C
Stretcher release lever for Sharp system
D
Metal profile
E
Fixing counter plates
F
Locking flap
G
Front anchor
10. INSTRUCTIONS FOR USE
10.1 MEDICAL VEHICLE REQUIREMENTS
The fastener S-MAX is designed for installation inside an ambulance.
For its installation, the emergency vehicle must be equipped with suitable surface to hold the fastener and the stretcher safely in position.
The vehicle must therefore meet the following essential requirements:
- Loading platform sufficiently big to contain without creating obstacles the anchoring system with the stretcher.
- The fixing platform must be perfectly horizontal and completely flat
- Installation surfaces capable to withstand forces like described in the standard EN 1789, considering the stretcher being used and its maximum loading capacity.
Failure to comply with these requirements or incorrect installation can endanger the safety of patients and operators.
MATERIAL
-
Nylon
Nylon
Al
Galvanized steel
Nylon
Nylon/Steel
C
FUNZIONE
Required fot the coupling with the fifth wheel of the stretcher
Used to release the stretcher from the fastener
Area of the release lever used only if the stretcher is equipped with Sharp release system
Connection component between front and rear part of the fastener
Supplied with the fastener, they must be used for the installation of the device, placing them under the
installation surface
Allows to lock and unlock the stretcher
Component of the fastener that secures the stretcher in position acting on its front part
CHARACTERISTICS
Dimensions (mm)
Metal profile thickness
Weight (without counterl plates)
D
E
1790x190x80 ± 5mm
30 mm
5,2 ± 0,1 kg
G
F
IT
EN
DE
FR
ES
PT
15
