EasyTeach philosophy
Adjustment of the sensitivity with EasyTeach by Wire (ETW):
The EasyTeach menu starts, by activating the EasyTeach connection (Teach wire / Teach pin with the
supply voltage UB+). The menu goes through the different menu items. The desired Menu point is se-
lected by disconnecting the wire.
Adjustment of the sensitivity with EasyTeach by Button (ETB):
The EasyTeach menu starts, by pushing the EasyTeach Button. The menu goes through the different
menu items. The desired menu item is selected by releasing the EasyTeach button
Adjustment of the sensitivity with EasyTeach by Magnet (ETM):
The EasyTeach menu starts, by holding the EasyTeach magnet on the teachspot. The menu goes
through the different menu items. The desired menu item is selected by removing the magnet
EasyTeach menu
Antivalente output
Adjustment "empty"
Adjustment "full"
Test
The procedures of the EasyTeach menu are different depending on which mode of the output
i
function you are in. There are options for an adjustment "Empty" or an adjustment "Full" with
the Antivalent output function. With the Normally Open / Normally Closed function there are
two "Full" adjustments for the two independent switching points.

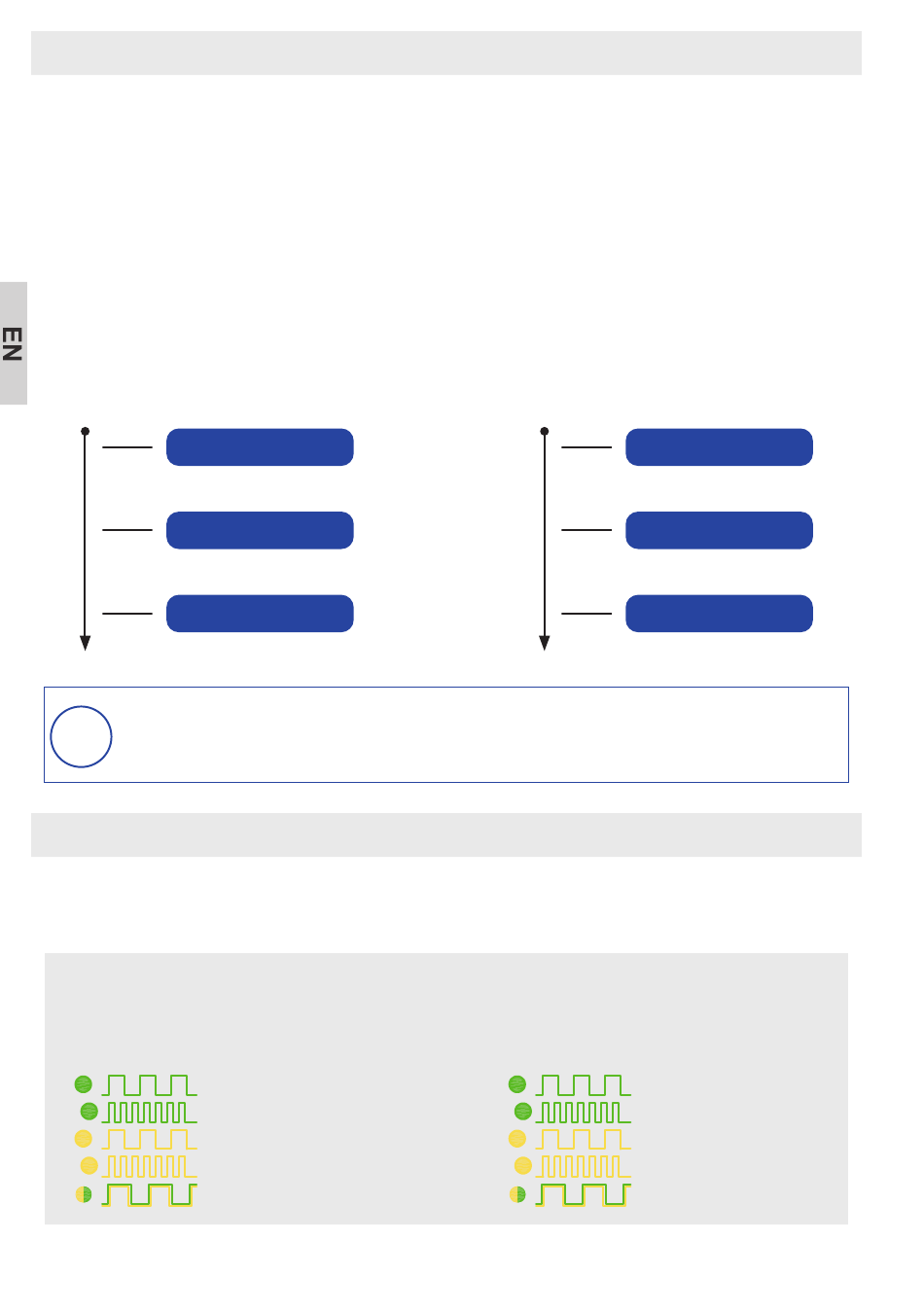

EasyTeach Chart
The EasyTeach charts are used for optical menu navigation. They illustrate the flashing behaviour of the
LED and the switching of the output at the various menu items
EasyTeach Chart
Antivalente output
LED / output function
Yellow = A1, green = A2
24
Adjustment "empty"
Initializing "empty"
Adjustment "full"
Initializing "full"
Test
EasyTeach menu
2 x norm. open / 2 x norm. closed
Adjustment S1
Adjustment S2
Test
EasyTeach Chart
2 x norm. open / 2 x norm. closed
Adjustment S1
Initializing S1
Adjustment S2
IInitializing S2
Test
