2.2. Mechanical mounting Series 20/30

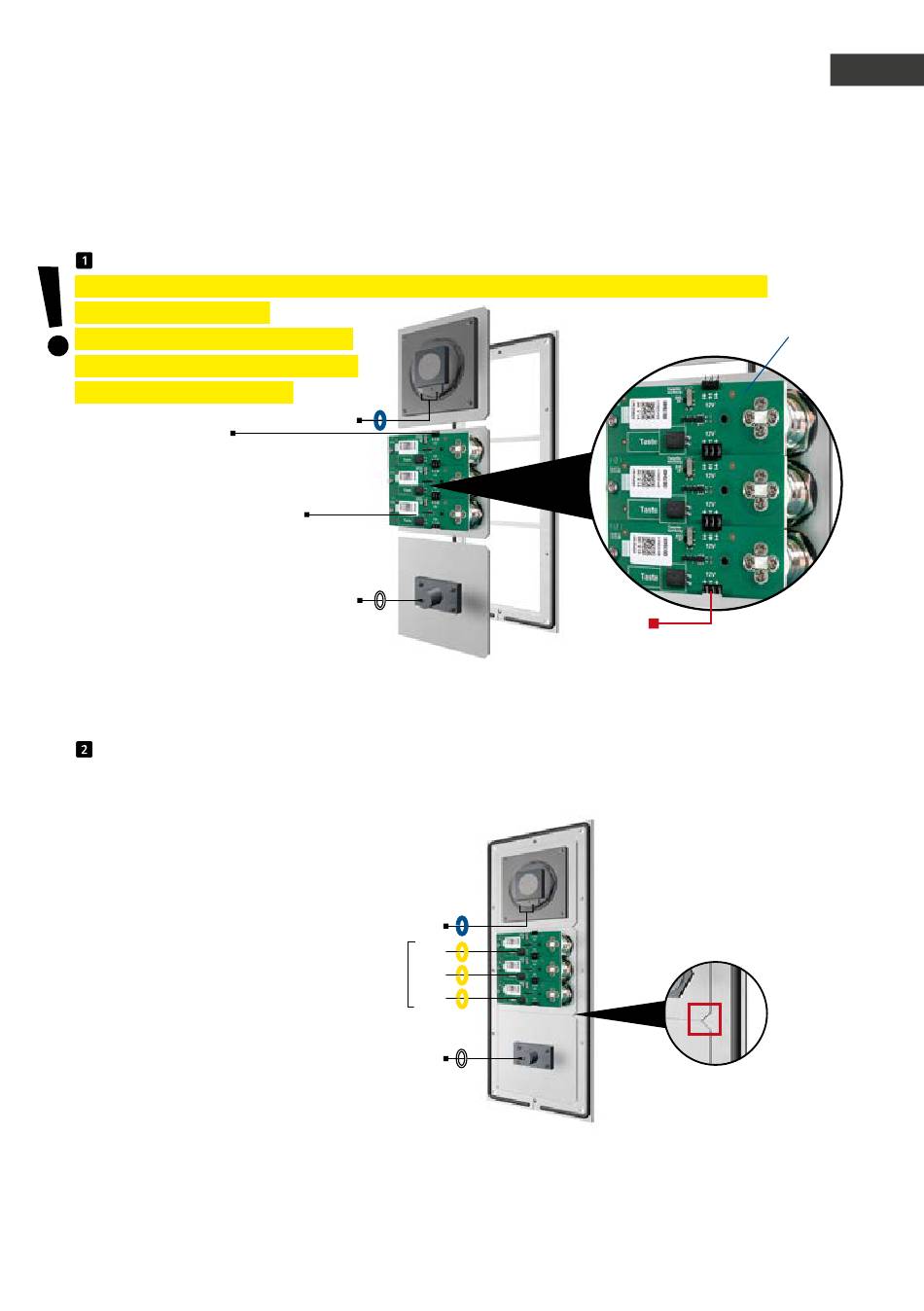

Insert the function modules into the front frame.
Please note: When using the loudspeaker types 20-1107-IP/21-1107-IP, 20-1109-IP/21-1109-IP
and 43-9913, please note
that the loudspeakers are not placed
in the immediate vicinity of the relays
of the basic electronics (AIF).
to the next module,
if applicable
Illumination 12 V=
Insert the modules into the frame from the rear.
Function modules into the front frame
to the ribbon cable
with marking T1-T8.
Note the order, important
for the later configuration.
to the ribbon cable
When inserting the modules, please make sure to maintain the anti-twist protection and also have
the modules "click" audibly into position.
www.behnke-online.de
LS
Mic
LS
CB
ribbon cable
T
CB
T
CB
T
Mic
Instructions for Behnke SIP 2.0
Installation
Lighting board
Illumina-
tion 12V=
12V-bridges to illuminate
the label positions
