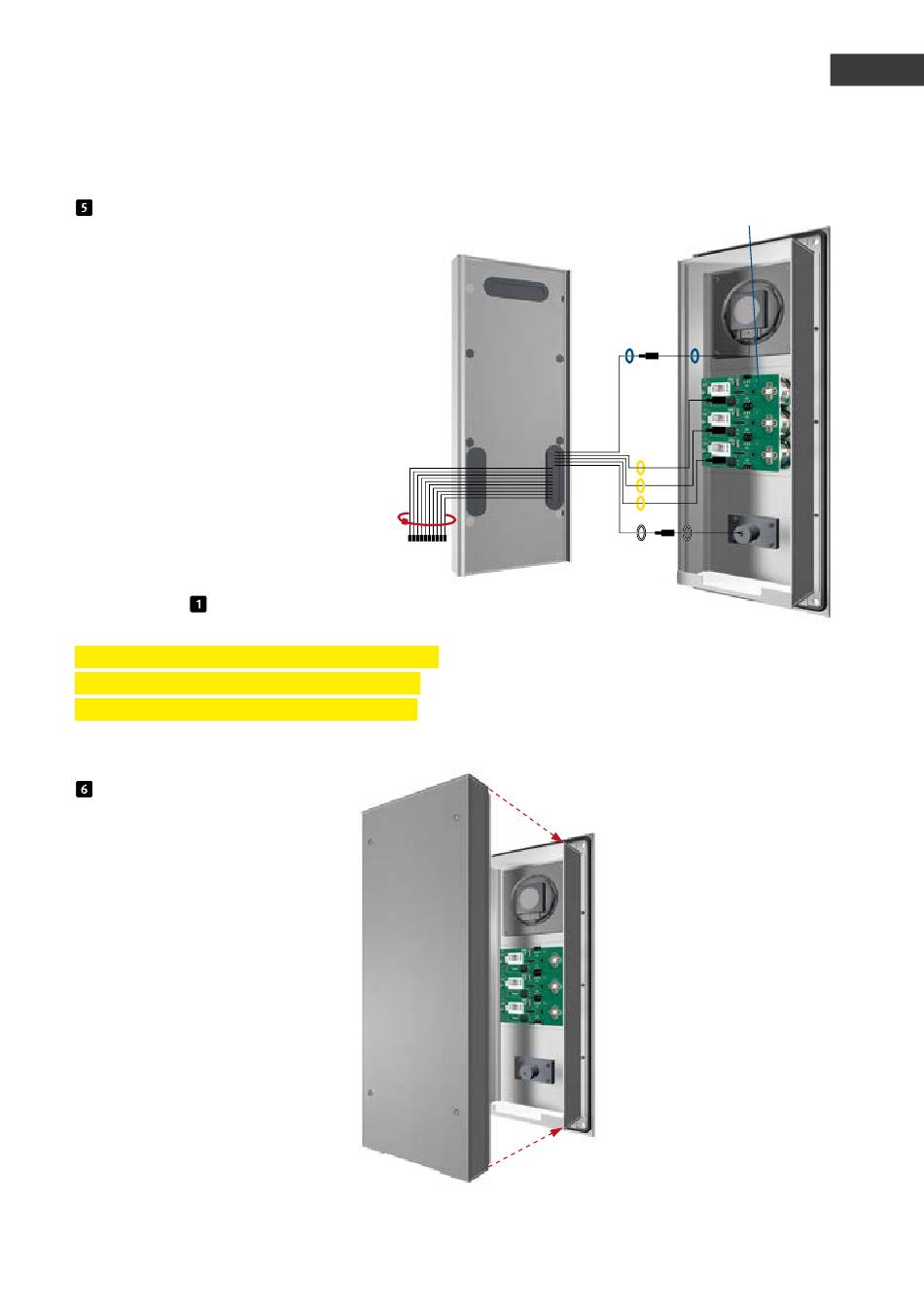

Connect the ribbon cable to the installation
components (speaker, microphone, buttons etc.)
Plug connection for the branch line
Series 20, 30, 50:
LP (blue)
speaker
Mic (white)
microphone
T1 to T8 (yellow)
button 1 to 8
(plug-in contact, lighting board)
12-pin plug
key pad
HPI Contact (white)
label field
(cf. also sectio
)
Please note: Connect the available components
using the ribbon cable. Use a cable tie to con-
nect the wires not in use (plugs facing down).
Then clip the electronics box
back onto the module housing.
www.behnke-online.de
Instructions for Behnke SIP 2.0
Electronics box
Installation
Lighting board
T1
T2
T3
Module housing
GB
51
