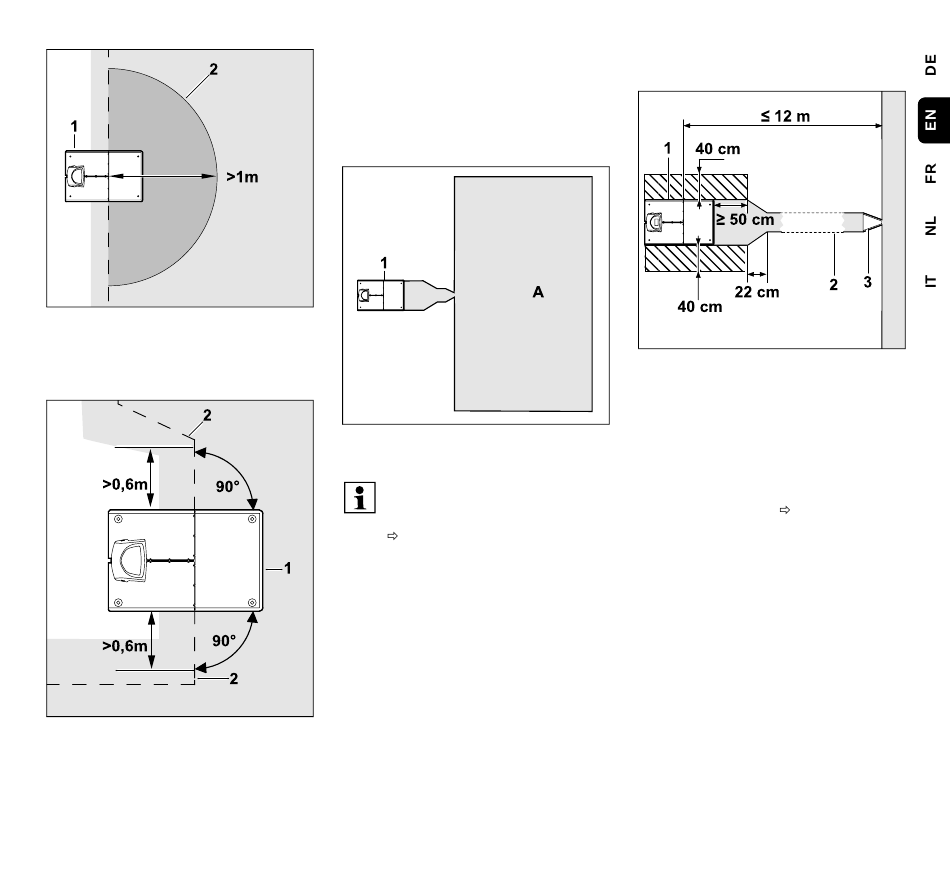

There must be a free, level area (2) with a
radius of at least 1 m in front of the docking
station (1). Remove any bumps or
depressions.
0478 131 9957 A - EN
Route the perimeter wire (2) in front of and
behind the docking station (1) for 0.6 m in
a straight line and at right angles to the
floor plate. Then follow the edge of the
mowing area with the perimeter wire.
External docking station:
The docking station (1) is installed outside
the mowing area (A).
In conjunction with an external
docking station, guide loops must
be installed for offset drive home.
(
12.12)
Space requirement for external docking
station:
The docking station (1) can be installed as
illustrated with a corridor (2) for docking
and undocking to take place correctly. The
areas around the docking station and
outside of the perimeter wire must be flat
and freely travellable. Remove any bumps
or depressions.
The corridor (2) is installed using the
corridor template (3). (
12.11)
Minimum clearance from the floor plate
to the start of the corridor: ≥ 50 cm
Width of the free area to the side: 40 cm
Maximum clearance to the mowing area:
≤ 12 m
