Prior to commissioning

General remarks The push-pull unit must be aligned prior to each initial start-up and after every
update of the wirefeeder software. If no alignment of the push-pull unit is carried
out, the standard parameters will be used - which may result in the welding result
not being satisfactory.
Aligning the
push-pull unit
For an overview of the error messages which may occur during alignment of the
pushpull unit, please refer to "Troubleshooting".
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
20
23
24
50
51
52
53
20
Fronius "Abspul-VR" unreeling device "VR 1530-22" 22 m/min or 865 ipm
*)
Fronius "Abspul-VR" unreeling device "VR 1530-30" 30 m/min or 1180
ipm (display reads: 1.18) *)
Fronius robot push-pull "KD Drive"10m/min *)
Fronius robot push-pull "Robacta Drive" (Master-control) *)
Fronius robot push-pull "Robacta Drive" (Slave-control)
Fronius manual push-pull "PullMig" with power potentiometer
Fronius manual push-pull "PullMig" without power potentiometer
Binzel manual push-pull 42V" with power potentiometer **)
Binzel manual push-pull 42V" without power potentiometer **)
Binzel robot push-pull 42V" **)
Binzel robot push-pull 24V" **)
Dinse robot push-pull 42V" **)
Hulftegger manual push-pull 24 V **)
Fronius "VR 143-2" intermediate drive
Fronius "Abspul-VR" (unreeling device) "MS" 22 m/min or 865 ipm *)
"Cobra Gold" manual push-pull 24 V **)
Fronius "Abspul-VR" unreeling device "VR 1530-12" 12 m/min or 470 ipm
*)
Binzel robot push-pull 32V **)
Dinse robot push-pull new 42V **)
Fronius manual push-pull "PT Drive" (d=0.8 mm or 0.030 in; material: alu-
minium) ***)
Fronius manual push-pull "PT Drive" (d = 1.0 mm or 0.040 in; materials:
aluminium) ***)
Fronius manual push-pull "PT Drive" (d = 1.2 mm or 0.045 in; materials:
aluminium) ***)
Fronius manual push-pull "PT Drive" (d=1,6 mm oder 1/16 in; material:
Aluminium) ***)

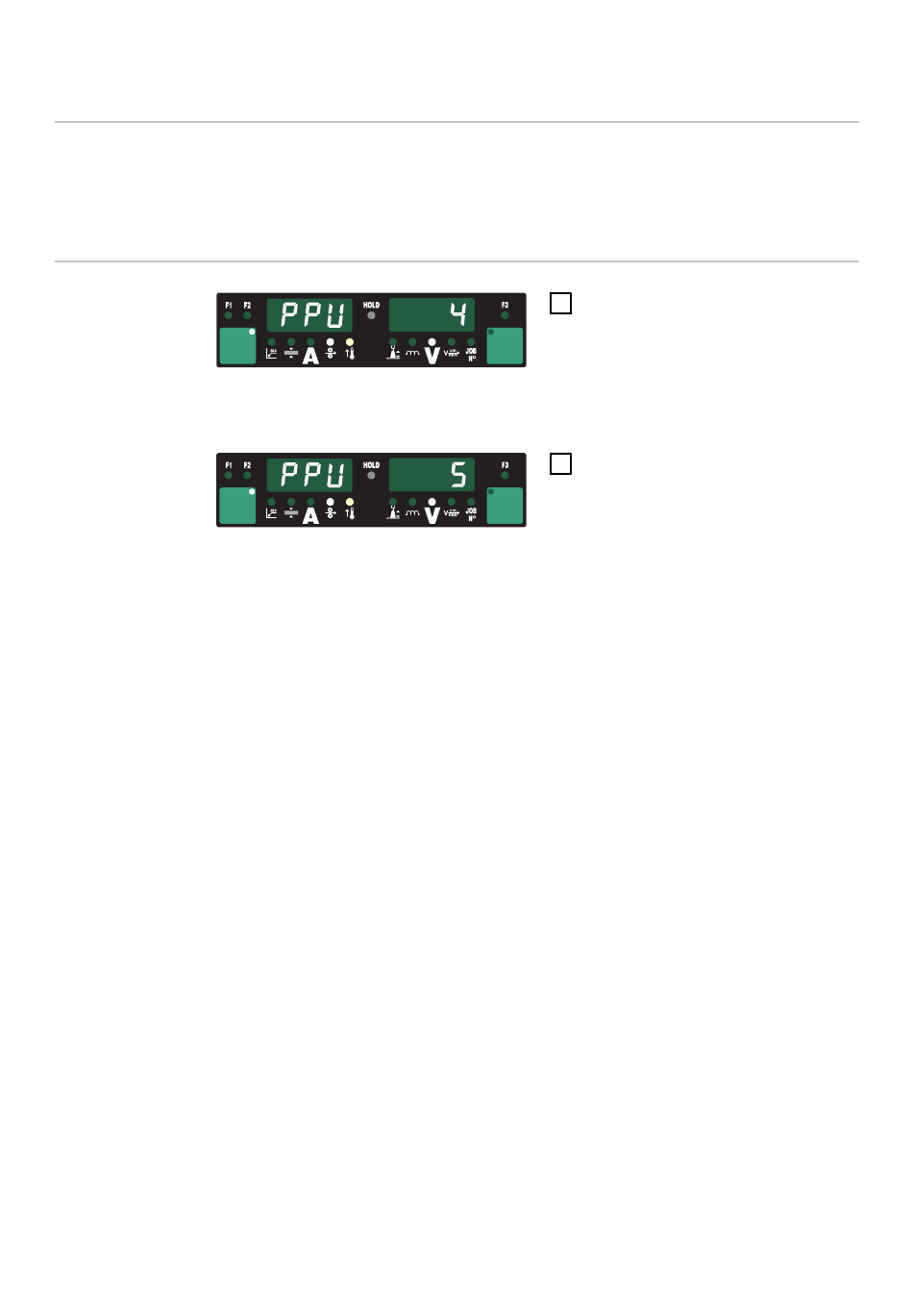

Select the "PPU" function in the
1
second menu level (2nd).
Use the adjusting dial (1) (or "Mo-
2
de" button (5) on the "Standard"
control panel) to select the rele-
vant push-pull unit from the fol-
lowing list:
