Fitting PushPull- IMPORTANT! The motor feeder cable harness (3) and the motor feeder extensi-
Unit to VR 1500 on (4) is not required when fitting PushPull unit to VR 1500.

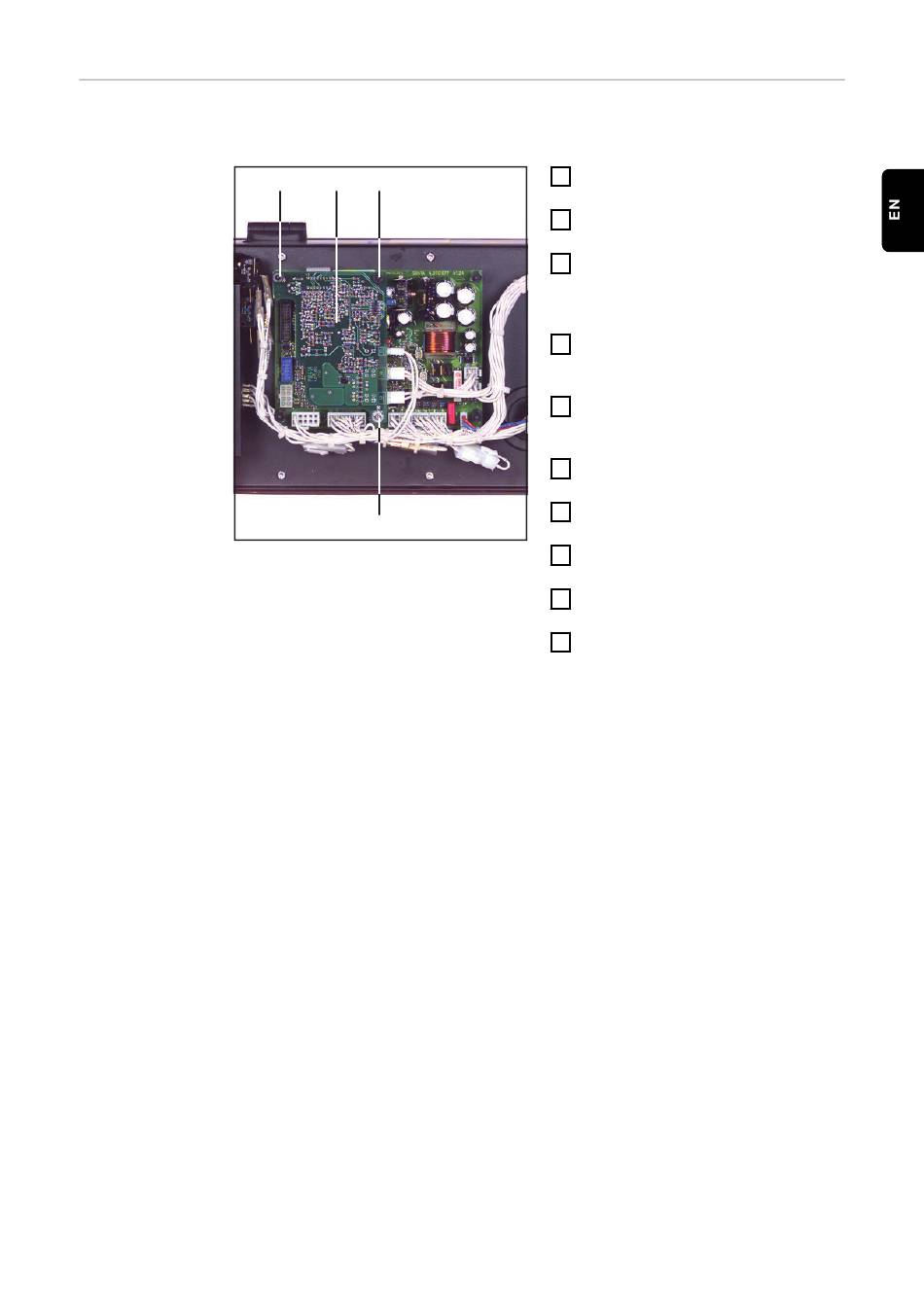

Fitting PushPull unit to VR 1500
(8) (1) (8)
(6) (7)
Take off the right-hand wire feeder
1
cover
Connect flat cable from pc board
2
PM41A/X4 at pc board SR41/X12
Use hex-nut (6), serrated lock was-
3
her (7) and plastic spacer blocks
(8) to fix PM41A board (1) parallel
to SR41 board
Disconnect connection cable
4
SR41/X11 and connect at pc board
PM41A/X3
Connect board feeder cable
5
harness (2) at pc boards PM41A/X2
and SR41/X11
Cut cable tie at the free Molex
6
connector for the motor-supply
Connect Molex connector for the
7
motor-supply at PM41A/X1
Use cable ties to secure cable
8
harness
Mount the right-hand wire feeder
9
cover
Adjust wire feeder (see section
10
„Adjusting PushPull unit")
