Operating the field indicator
6.2 Display and operating elements
6.2.1 Display
1
1a
2
3
4

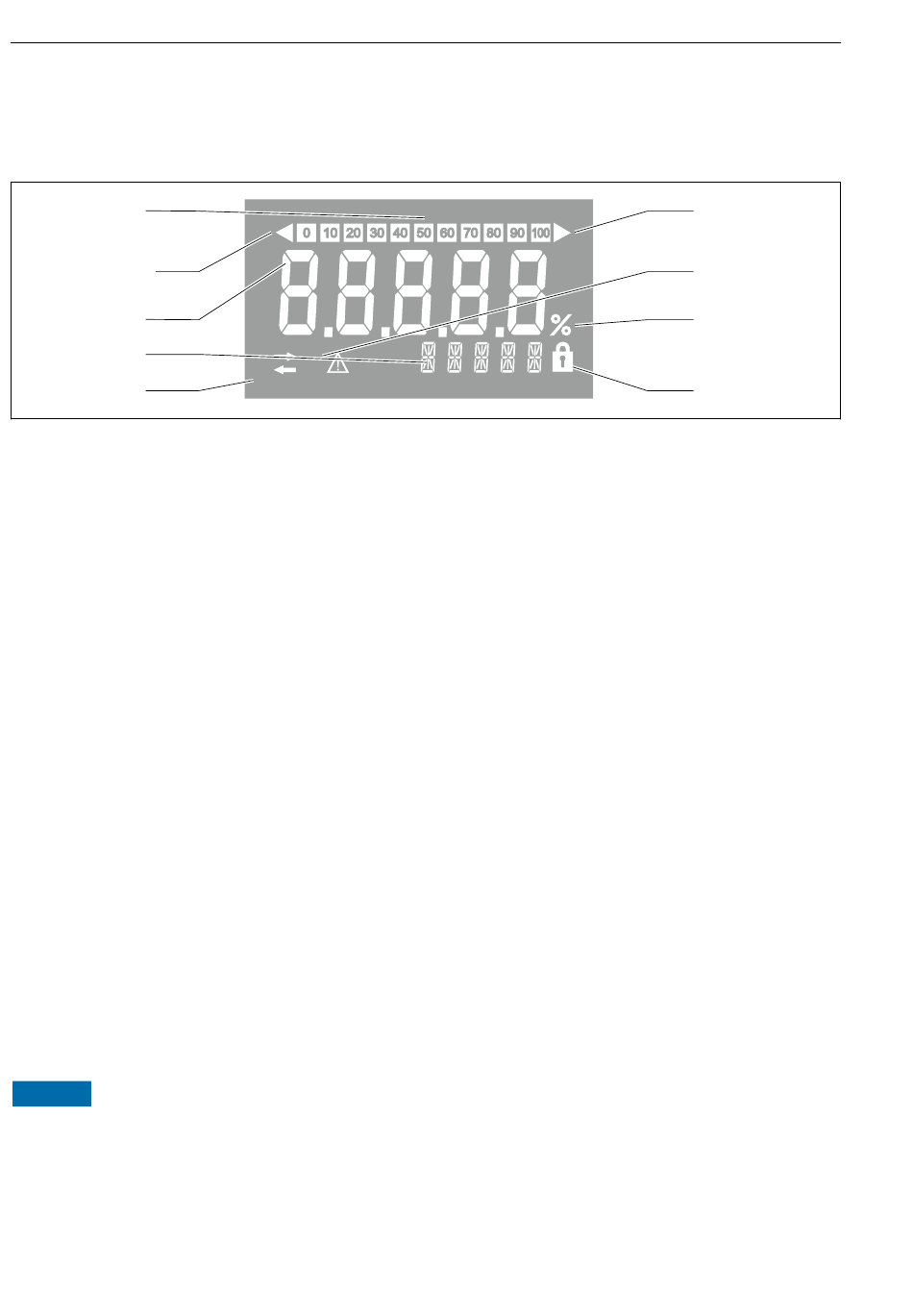

 12 LC display of the field indicator
1 Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging
(item 1b)
2 Measured value display, status indication "Bad measured value status"
3 14-segment display for units and messages
4 "Communication" symbol
5 "Parameters cannot be modified" symbol
6 "%" unit
7 "Uncertain measured value status" symbol
The backlit LCD display contains a bargraph (0-100) and arrows to indicate measurements
above or below the measurement range. Analog process values, digital status and failure
codes are displayed in the 7-segment area. Here up to 8 values can be displayed with a
alternating time between 2 and 20 seconds. Plain text can be displayed in the 14-segment
area (text is limited to 16 characters and is scrolled if needed (marquee text)).
The indicator also displays the quality of the measured value. If the status of the displayed
value is ' g ood' (quality code equal to or above 0x80), no symbol is lit and the indicator remains
in the normal operational state. If the status of the displayed value is ' u ncertain' (quality code
between 0x40 and below 0x80), the ' U ncertain measured value status' symbol is lit. If the
status is ' b ad' (quality code below 0x40), within the 7-segment area the display will show
"BAD-" and the channel number where the bad value is published. The entered text continues
to be displayed in the 14-segment area and the bar graph is not shown.
6.3 Configuration of the field indicator
NOTICE
The device is not explosion-protected when the housing is open
‣
The device must be configured outside the hazardous area.
To configure the device via the FieldCare Device Setup software, connect the device to your PC.
For this you will require a special interface adapter, the Commubox FXA291 (see ' A ccessories'
section in the Operating Instructions).
42
RID16
1b
7
6
5
A0011309
