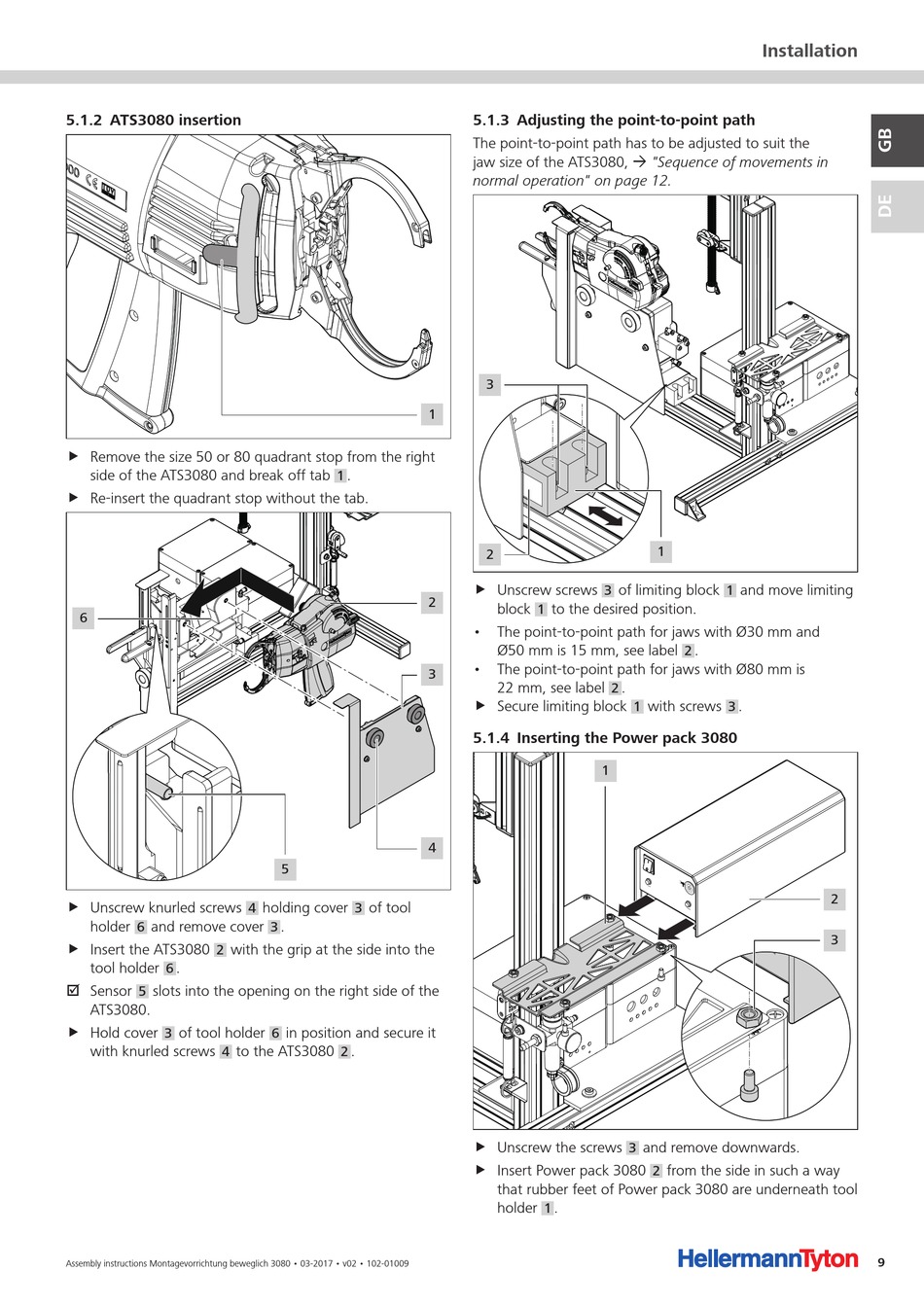

5 .1 .2 ATS3080 insertion

f Remove the size 50 or 80 quadrant stop from the right
side of the ATS3080 and break off tab
f Re-insert the quadrant stop without the tab.
6
f Unscrew knurled screws
holder and remove cover
6
f Insert the ATS3080 with the grip at the side into the
2
tool holder .
6
; Sensor slots into the opening on the right side of the
5
ATS3080.
f Hold cover
of tool holder
3
with knurled screws to the ATS3080
4
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009
.
1
5
holding cover of tool
4 3
.
3
in position and secure it
6
.
2

5 .1 .3 Adjusting the point-to-point path

The point-to-point path has to be adjusted to suit the
jaw size of the ATS3080, à "Sequence of movements in
normal operation" on page 12.
3
1
2
f Unscrew screws
2
block to the desired position.
1
• The point-to-point path for jaws with Ø30 mm and
Ø50 mm is 15 mm, see label
• The point-to-point path for jaws with Ø80 mm is
3
22 mm, see label
f Secure limiting block

5 .1 .4 Inserting the Power pack 3080

1
4
f Unscrew the screws
f Insert Power pack 3080
that rubber feet of Power pack 3080 are underneath tool
holder .
1
Installation
1
of limiting block and move limiting
3 1
.
2
.
2
with screws .
1 3
P ow
er
S ig
na
l
S ig
n a
l
and remove downwards.
3
from the side in such a way
2
2
3
