7 Technical data

Unless otherwise indicated, all sizes are rounded off and
stated in millimetres.
HellermannTyton offers special CAD models for planning
integration into automatic systems.

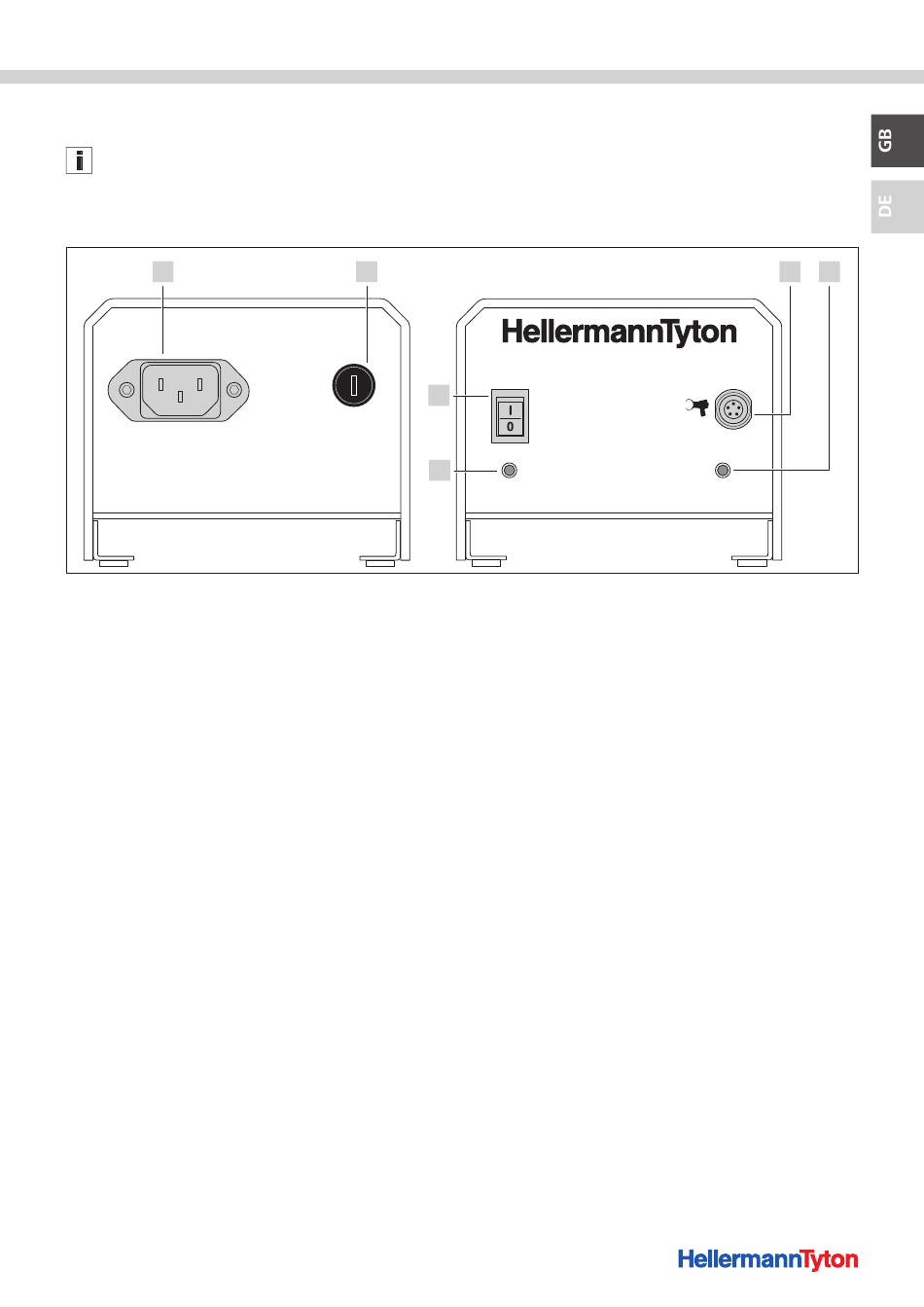

7 .1 Interface overview, Power pack 3080
1
1 Socket for power cable
2 Fuse
3 Socket for connection to ATS3080 or to the control boxes
4 Signal LED
Green: Operating voltage applied
5 LED indicator Power
Green: Power pack 3080 switched on
6 Main switch
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009
2
6
5
Power
ATS3080 Power Pack
Signal
Technical data
3 4
