7 .3 Control boxes

Voltage supply 48 V
Compressed air supply 5–7 bar, oil-free
Compressed air con- with stroke, dia. 80 jaws approx. 0.4 m³/h
sumption rate at 5 bar inlet pressure, 1500 cycles/h

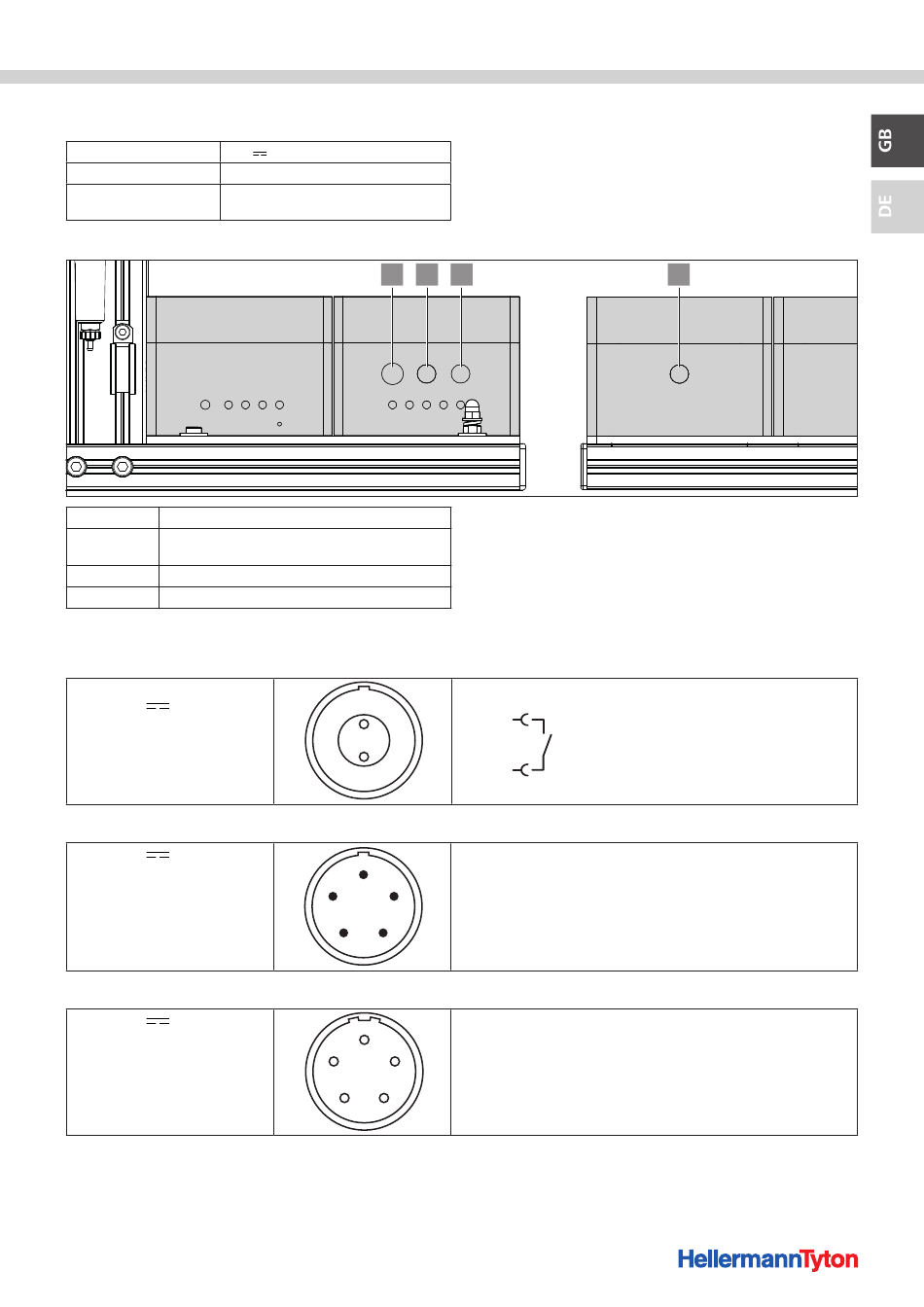

7 .3 .1 Interface overview, control boxes

X1 Socket for foot pedal
X2 Connection of Power pack 3080 (Bench mount kit
power supply beweglich 3080)
X3 Blanking plug
X4 Voltage supply ATS3080

7 .3 .2 Connector pinouts, control boxes

Socket X1
PIN 1 = start signal
PIN 2 = +24 V
Socket X2
PIN 3 = +48 V
PIN 4 = 0 V
Socket X4
PIN 3 = +48 V
PIN 4 = 0 V
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009
X1 X2 X3
PIN 1
1
2
PIN 2
Power supply Bench mount kit beweglich 3080
1
5 2
4 3
Power supply ATS3080
1
2 5
3 4
Technical data
X4
Start
