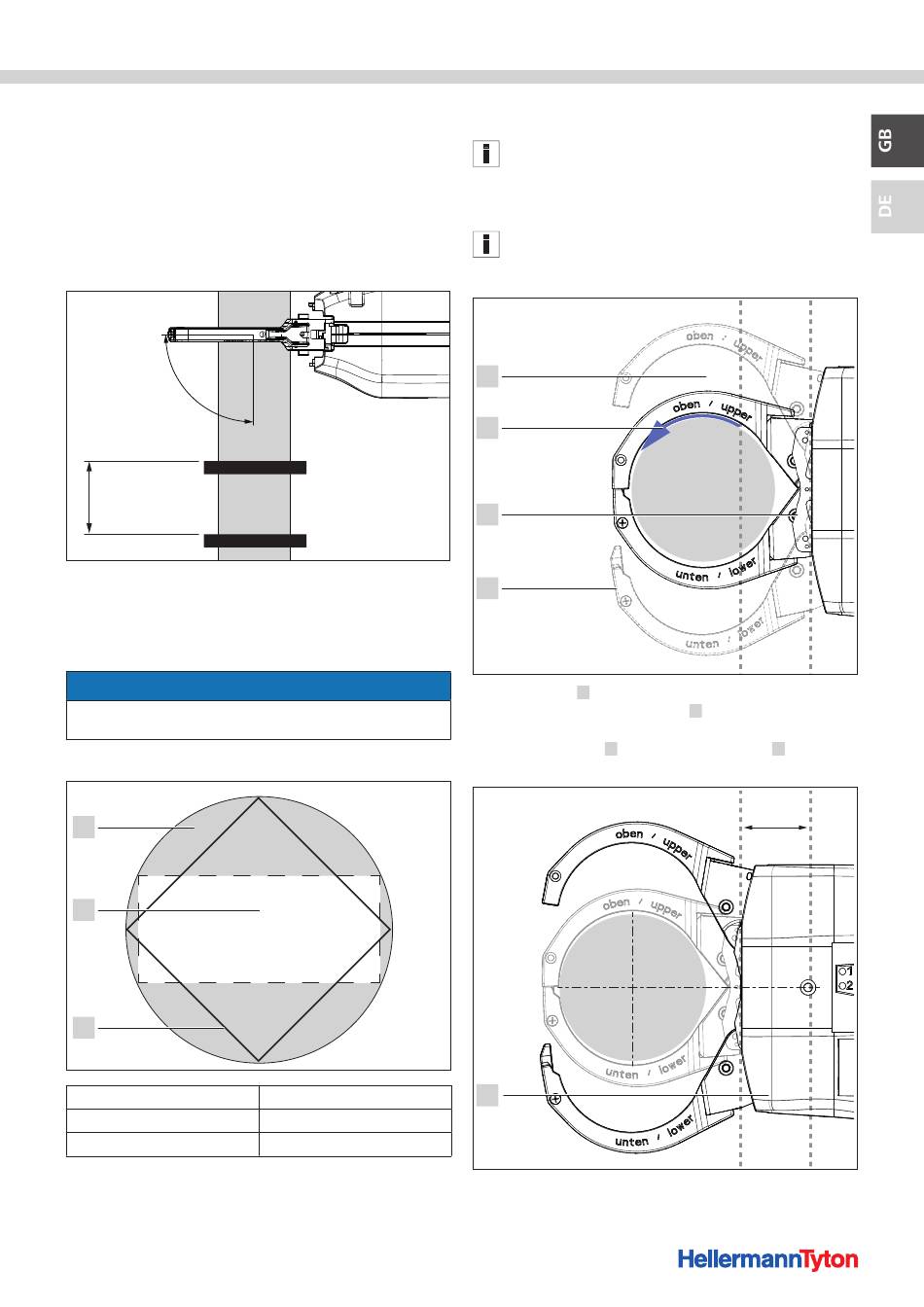

5 .2 Positioning
5 .2 .1 Positioning the material for bundling
f Make sure that the material for bundle is always in the
same position.
f Bundle the material neatly. Make sure there are no
projecting cable-tie ends.
f Make sure that the upper and lower jaws of the
ATS3080 are not obstructed.
90°
10 mm
f Guide the ATS3080 past the material to be bundled at an
angle of 90° to ensure that each binding is secure
without projecting cable-tie ends.
f Make sure that the straps are set with a minimum
distance of 10 mm.
NOTE
For correct binding, the ATS3080 always has to be centred
relative to the material to be bundled.
5 .2 .2 Geometries of materials for bundling
1
2
3
Diameter
Rectangle sizes
Square sizes
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009
max. 80 mm
max. 34 mm x 72 mm
max. 56 mm x 56 mm
5 .3 Check of finished bindings
The HellermannTyton components cannot perform a check
of the finished bindings. An external monitoring system (e.g.
camera monitoring) is required for such checks.
5 .4 Sequence of movements in normal operation
The sequence of movements as shown here is with Ø50 mm
jaws and a round object.
Start position
1
2
3
4
Step 1: Jaws close.
1
Step 2: The strap forms a loop
Step 3: The ATS3080 switches to reverse.
Step 4: Deflector moves back, jaws open
3
Tensioning position
5
Step 5: The strap is tensioned round the material.
Installation
round the material.
2
.
4
X
