The Power pack 3080 supplies electricity to the
ATS3080.
To the interfaces on both sides of the housing,
à "Interface overview, Power pack 3080" on
page 15.

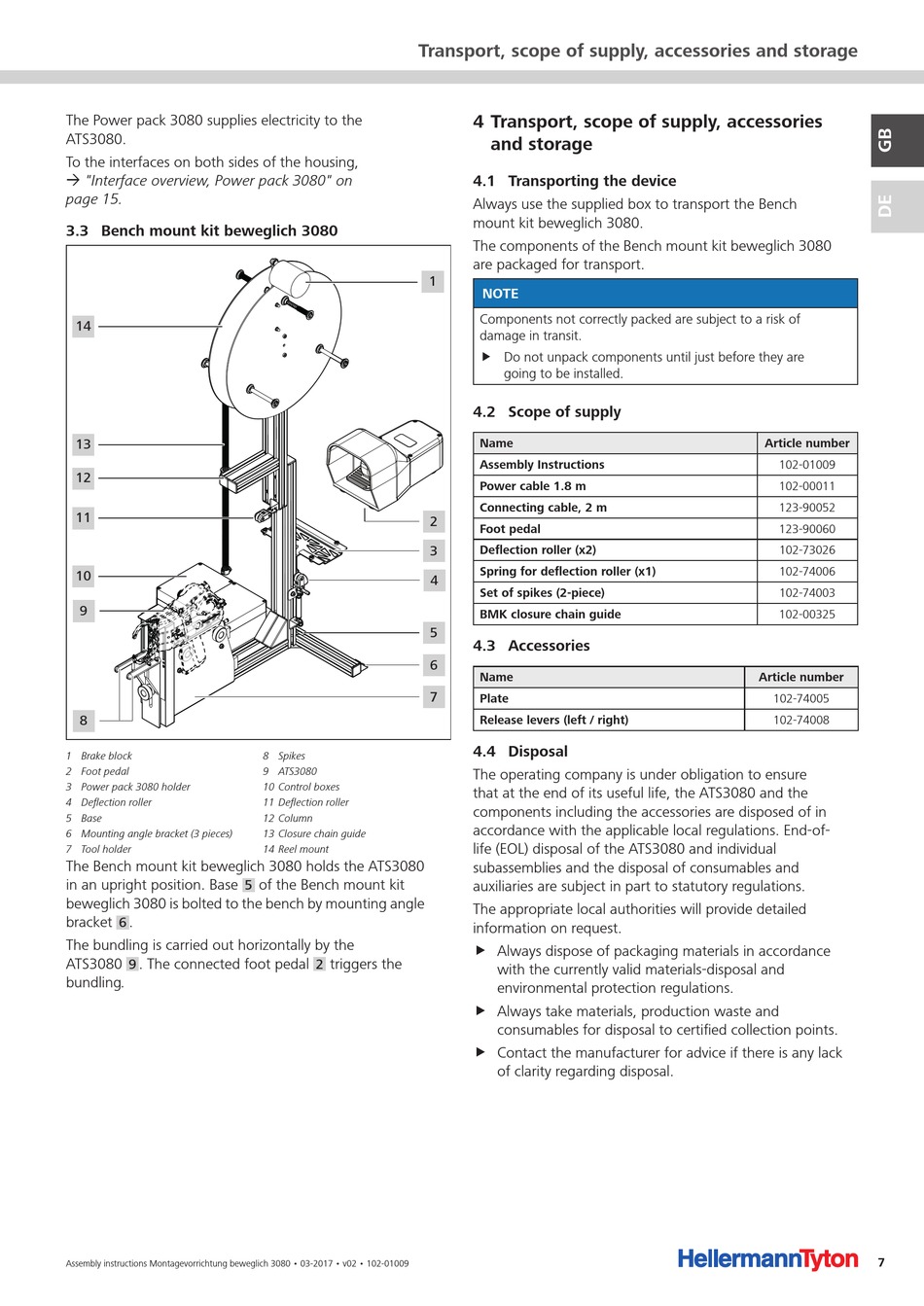

3 .3 Bench mount kit beweglich 3080
14
13
12
11
10
9
8
1 Brake block
2 Foot pedal
3 Power pack 3080 holder
4 Deflection roller
5 Base
6 Mounting angle bracket (3 pieces)
7 Tool holder
The Bench mount kit beweglich 3080 holds the ATS3080
in an upright position. Base
beweglich 3080 is bolted to the bench by mounting angle
bracket .
6
The bundling is carried out horizontally by the
ATS3080 . The connected foot pedal
9
bundling.
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009
Transport, scope of supply, accessories and storage
8 Spikes
9 ATS3080
10 Control boxes
11 Deflection roller
12 Column
13 Closure chain guide
14 Reel mount
of the Bench mount kit
5
triggers the
2
4 Transport, scope of supply, accessories
and storage

4 .1 Transporting the device

Always use the supplied box to transport the Bench
mount kit beweglich 3080.
The components of the Bench mount kit beweglich 3080
are packaged for transport.
1
NOTE
Components not correctly packed are subject to a risk of
damage in transit.
f Do not unpack components until just before they are
going to be installed.

4 .2 Scope of supply

Name
Assembly Instructions
Power cable 1 .8 m
Connecting cable, 2 m
2
Foot pedal
3 Deflection roller (x2)
Spring for deflection roller (x1)
4
Set of spikes (2-piece)
BMK closure chain guide
5

4 .3 Accessories

6
Name
7
Plate
Release levers (left / right)

4 .4 Disposal

The operating company is under obligation to ensure
that at the end of its useful life, the ATS3080 and the
components including the accessories are disposed of in
accordance with the applicable local regulations. End-of-
life (EOL) disposal of the ATS3080 and individual
subassemblies and the disposal of consumables and
auxiliaries are subject in part to statutory regulations.
The appropriate local authorities will provide detailed
information on request.
f Always dispose of packaging materials in accordance
with the currently valid materials-disposal and
environmental protection regulations.
f Always take materials, production waste and
consumables for disposal to certified collection points.
f Contact the manufacturer for advice if there is any lack
of clarity regarding disposal.
Article number
102-01009
102-00011
123-90052
123-90060
102-73026
102-74006
102-74003
102-00325
Article number
102-74005
102-74008
7
