2 .5 Underlying hazards associated with use of the
ATS3080 or the Bench mount kit beweglich 3080

2 .5 .1 Electricity and compressed air

f Always wear safety glasses and suitable safety
equipment whilst working.
f Before installation, cleaning and maintenance,
depressurise disconnect the ATS3080, the Power
pack 3080 and the Bench mount kit beweglich 3080 from
the power supply.

2 .5 .2 Cleanliness at the workplace

Orderliness, good lighting and cleanliness at the
workplace all help to make work easier and to minimise
hazards and the risk of injury.
Always comply with the following principles of
orderliness and cleanliness at the workplace:
f Put tools away as soon as they are no longer needed.
f Avoid trips (e.g. immediately dispose of waste by placing
it in the containers provided for the purpose).
f Immediately remove spillages of grease, oil and other
liquids.
f Avoid dirt on the display field of the ATS3080.

2 .5 .3 Spare parts and accessories

• Use only original replacement parts.
• After parts have been replaced, always make sure that
everything is in full working order.
• Use only accessories approved by HellermannTyton.
Accessories can affect the way in which the ATS3080 or
Bench mount kit beweglich 3080 works.
Assembly instructions Montagevorrichtung beweglich 3080 • 03-2017 • v02 • 102-01009

3 Functional description

ATS3080 and Power pack 3080 are not included in the scope
of supply. For a description of the ATS3080 and the Power
pack 3080, see the Operating Instructions for the ATS3080.

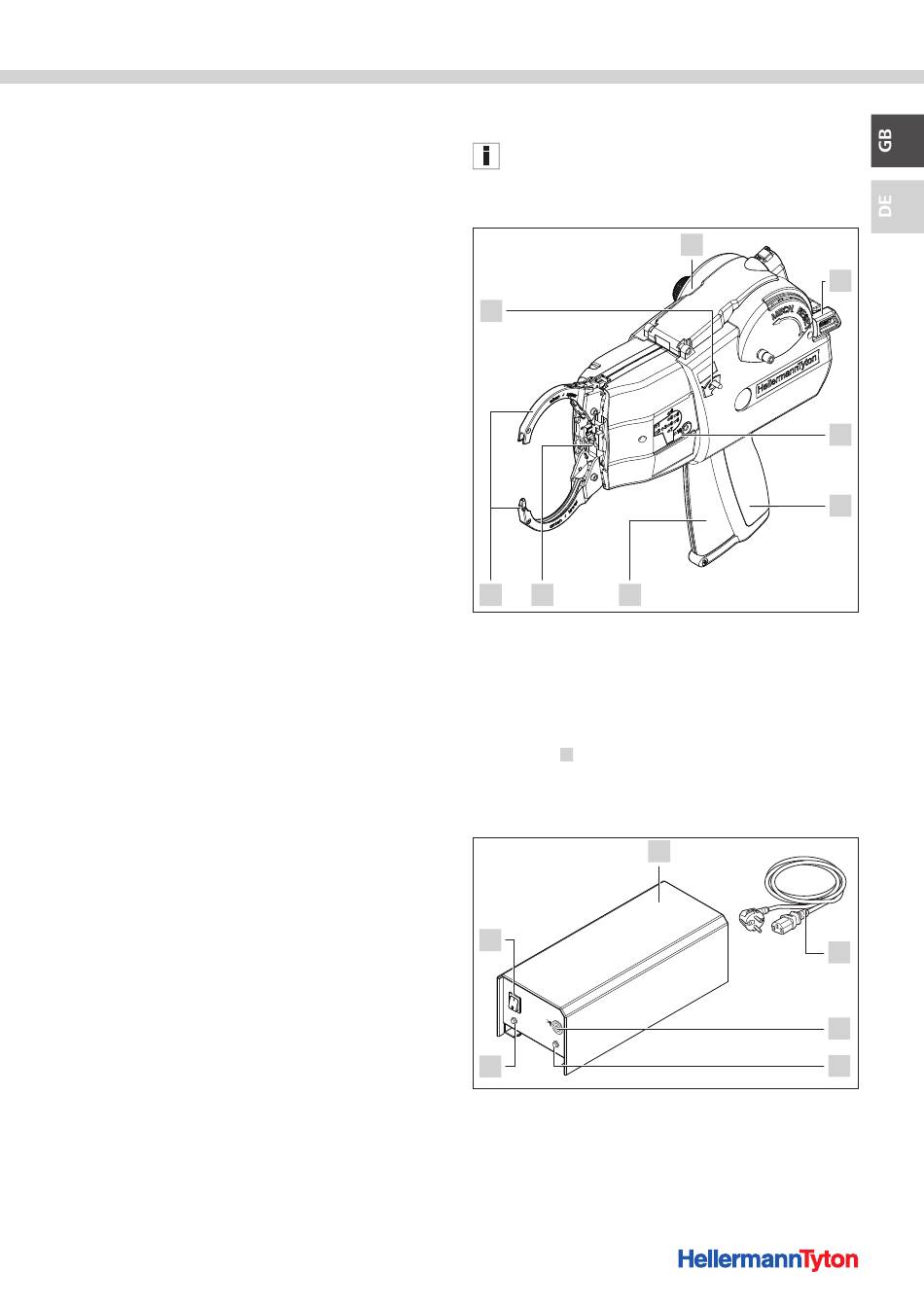

3 .1 ATS3080

8
7 6 5
1 ATS3080
2 Reset lever
3 Display
4 Grip
5 Triggering lever
6 Front cap with sensor
7 Upper and lower jaws
8 Jaw-opening lever
The ATS3080 loops the inserted strap round the
1
bundle, tensions and then cuts off the strap. Binding is a
zero-waste operation.

3 .2 Power pack 3080

6
P ow
er
S ig
na
l
5
1 Housing
2 Power cable (socket and fuse on the rear of the housing)
3 Socket for connection to ATS3080 or to the control boxes
4 LED indicator, operating voltage
5 LED indicator on Power pack 3080 switched on
6 Main switch
Functional description
1
1
2
3
4
2
3
4
6
