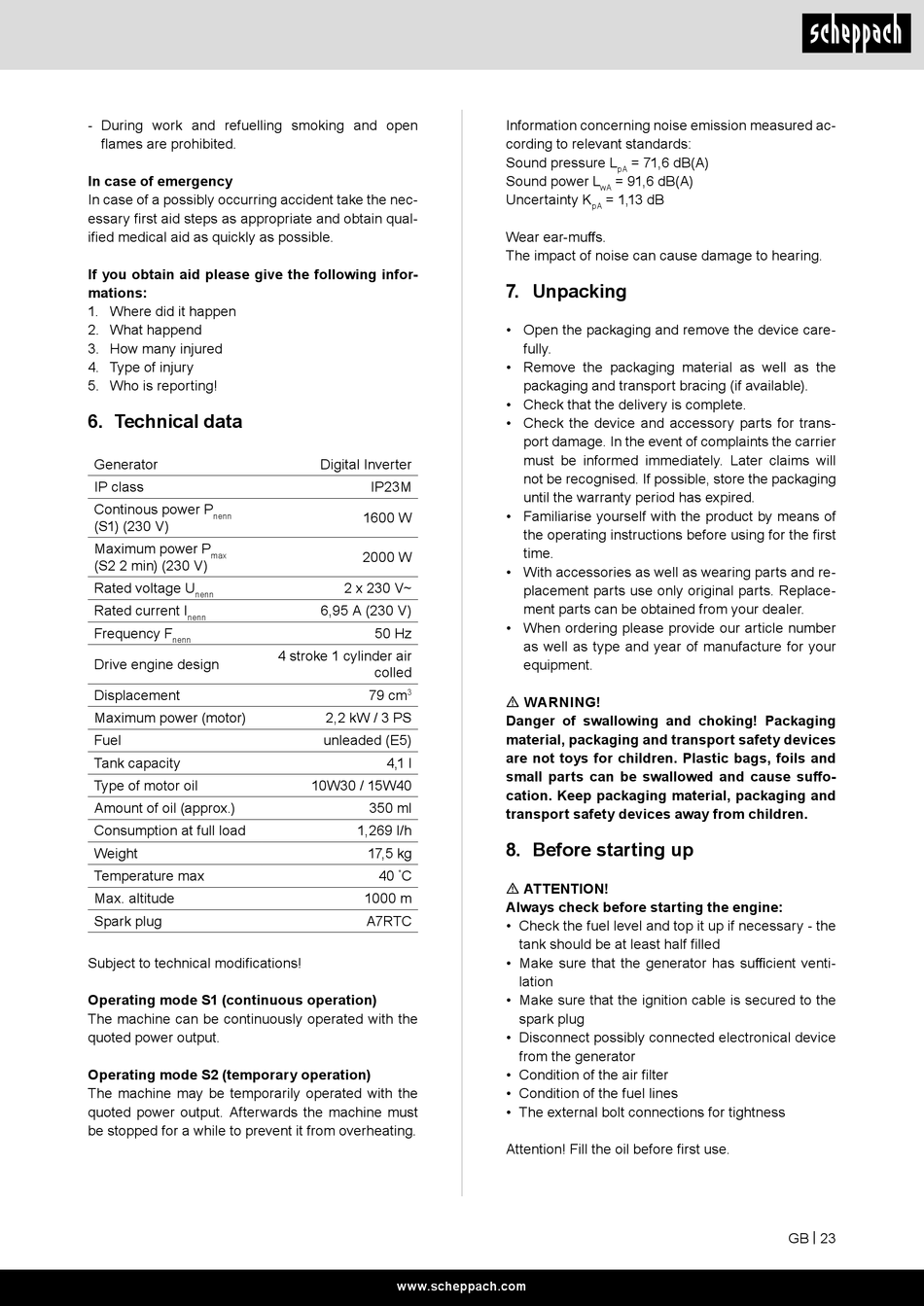

Scheppach SG2500i Originalbetriebsanleitung Seite 23

- During work and refuelling smoking and open
flames are prohibited.
In case of emergency
In case of a possibly occurring accident take the nec-
essary first aid steps as appropriate and obtain qual-
ified medical aid as quickly as possible.
If you obtain aid please give the following infor-
mations:
1. Where did it happen
2. What happend
3. How many injured
4. Type of injury
5. Who is reporting!
6. Technical data
Generator
IP class
Continous power P
nenn
(S1) (230 V)
Maximum power P
max
(S2 2 min) (230 V)
Rated voltage U
nenn
Rated current I
nenn
Frequency F
nenn
Drive engine design
Displacement
Maximum power (motor)
Fuel
Tank capacity
Type of motor oil
Amount of oil (approx.)
Consumption at full load
Weight
Temperature max
Max. altitude
Spark plug
Subject to technical modifications!
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power output. Afterwards the machine must
be stopped for a while to prevent it from overheating.
Digital Inverter
IP23M
1600 W
2000 W
2 x 230 V~
6,95 A (230 V)
50 Hz
4 stroke 1 cylinder air
colled
79 cm
3
2,2 kW / 3 PS
unleaded (E5)
4,1 l
10W30 / 15W40
350 ml
1,269 l/h
17,5 kg
40 C
°
1000 m
A7RTC
www.scheppach.com
Information concerning noise emission measured ac-
cording to relevant standards:
Sound pressure L = 71,6 dB(A)
pA
Sound power L = 91,6 dB(A)
wA
Uncertainty K = 1,13 dB
pA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
7. Unpacking
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage. In the event of complaints the carrier
must be informed immediately. Later claims will
not be recognised. If possible, store the packaging
until the warranty period has expired.
• Familiarise yourself with the product by means of
the operating instructions before using for the first
time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number
as well as type and year of manufacture for your
equipment.
m WARNING!
Danger of swallowing and choking! Packaging
material, packaging and transport safety devices
are not toys for children. Plastic bags, foils and
small parts can be swallowed and cause suffo-
cation. Keep packaging material, packaging and
transport safety devices away from children.
8. Before starting up
m ATTENTION!
Always check before starting the engine:
• Check the fuel level and top it up if necessary - the
tank should be at least half filled
• Make sure that the generator has sufficient venti-
lation
• Make sure that the ignition cable is secured to the
spark plug
• Disconnect possibly connected electronical device
from the generator
• Condition of the air filter
• Condition of the fuel lines
• The external bolt connections for tightness
Attention! Fill the oil before first use.
