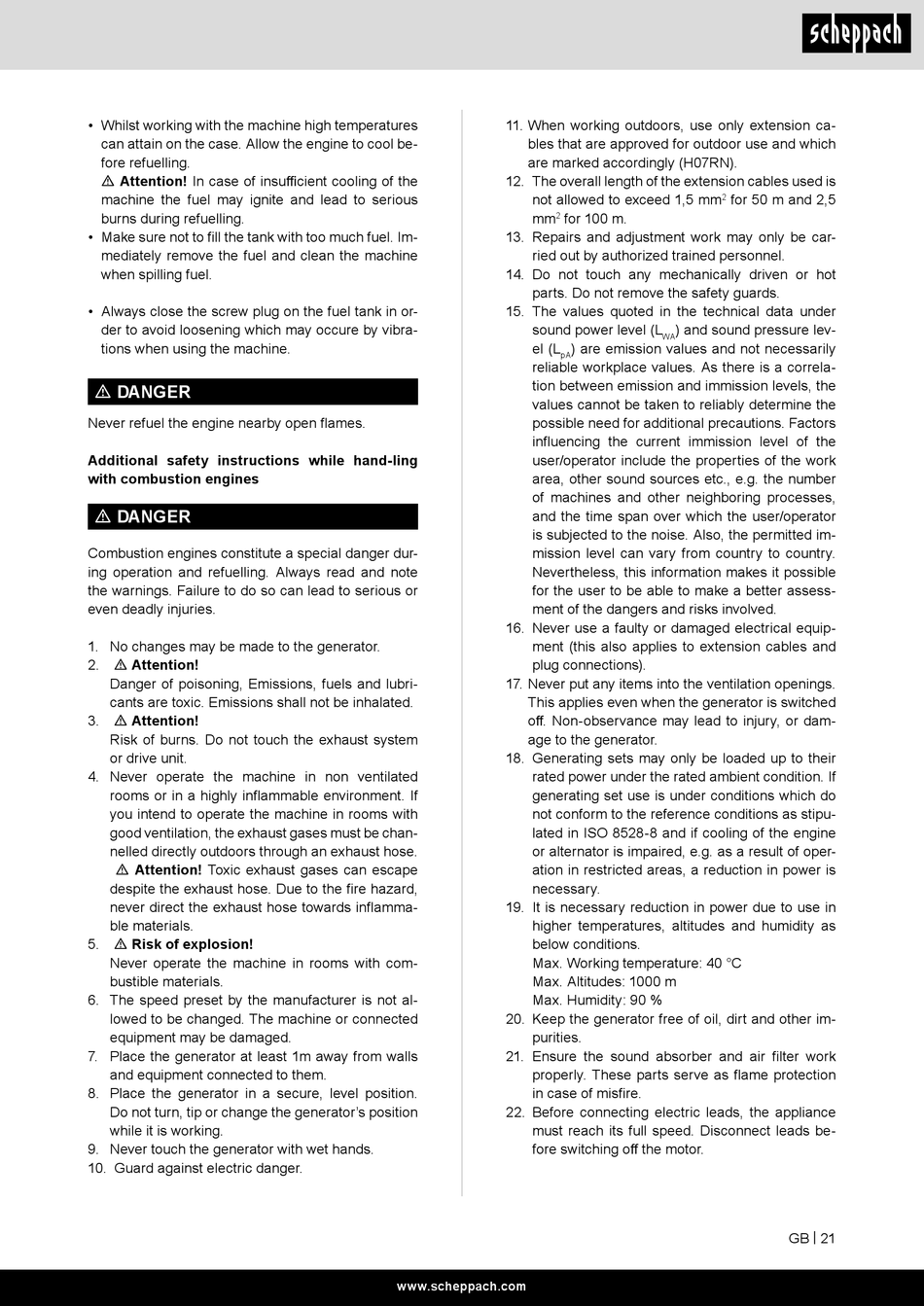

Scheppach SG2500i Originalbetriebsanleitung Seite 21

• Whilst working with the machine high temperatures
can attain on the case. Allow the engine to cool be-
fore refuelling.
m Attention! In case of insufficient cooling of the
machine the fuel may ignite and lead to serious
burns during refuelling.
• Make sure not to fill the tank with too much fuel. Im-
mediately remove the fuel and clean the machine
when spilling fuel.
• Always close the screw plug on the fuel tank in or-
der to avoid loosening which may occure by vibra-
tions when using the machine.
m DANGER
Never refuel the engine nearby open flames.
Additional safety instructions while hand-ling
with combustion engines
m DANGER
Combustion engines constitute a special danger dur-
ing operation and refuelling. Always read and note
the warnings. Failure to do so can lead to serious or
even deadly injuries.
1. No changes may be made to the generator.
2. m Attention!
Danger of poisoning, Emissions, fuels and lubri-
cants are toxic. Emissions shall not be inhalated.
3. m Attention!
Risk of burns. Do not touch the exhaust system
or drive unit.
4. Never operate the machine in non ventilated
rooms or in a highly inflammable environment. If
you intend to operate the machine in rooms with
good ventilation, the exhaust gases must be chan-
nelled directly outdoors through an exhaust hose.
m Attention! Toxic exhaust gases can escape
despite the exhaust hose. Due to the fire hazard,
never direct the exhaust hose towards inflamma-
ble materials.
5. m Risk of explosion!
Never operate the machine in rooms with com-
bustible materials.
6. The speed preset by the manufacturer is not al-
lowed to be changed. The machine or connected
equipment may be damaged.
7. Place the generator at least 1m away from walls
and equipment connected to them.
8. Place the generator in a secure, level position.
Do not turn, tip or change the generator's position
while it is working.
9. Never touch the generator with wet hands.
10. Guard against electric danger.
11. When working outdoors, use only extension ca-
bles that are approved for outdoor use and which
are marked accordingly (H07RN).
12. The overall length of the extension cables used is
not allowed to exceed 1,5 mm
mm for 100 m.
2
13. Repairs and adjustment work may only be car-
ried out by authorized trained personnel.
14. Do not touch any mechanically driven or hot
parts. Do not remove the safety guards.
15. The values quoted in the technical data under
sound power level (L
el (L ) are emission values and not necessarily
pA
reliable workplace values. As there is a correla-
tion between emission and immission levels, the
values cannot be taken to reliably determine the
possible need for additional precautions. Factors
influencing the current immission level of the
user/operator include the properties of the work
area, other sound sources etc., e.g. the number
of machines and other neighboring processes,
and the time span over which the user/operator
is subjected to the noise. Also, the permitted im-
mission level can vary from country to country.
Nevertheless, this information makes it possible
for the user to be able to make a better assess-
ment of the dangers and risks involved.
16. Never use a faulty or damaged electrical equip-
ment (this also applies to extension cables and
plug connections).
17. Never put any items into the ventilation openings.
This applies even when the generator is switched
off. Non-observance may lead to injury, or dam-
age to the generator.
18. Generating sets may only be loaded up to their
rated power under the rated ambient condition. If
generating set use is under conditions which do
not conform to the reference conditions as stipu-
lated in ISO 8528-8 and if cooling of the engine
or alternator is impaired, e.g. as a result of oper-
ation in restricted areas, a reduction in power is
necessary.
19. It is necessary reduction in power due to use in
higher temperatures, altitudes and humidity as
below conditions.
Max. Working temperature: 40 °C
Max. Altitudes: 1000 m
Max. Humidity: 90 %
20. Keep the generator free of oil, dirt and other im-
purities.
21. Ensure the sound absorber and air filter work
properly. These parts serve as flame protection
in case of misfire.
22. Before connecting electric leads, the appliance
must reach its full speed. Disconnect leads be-
fore switching off the motor.
www.scheppach.com
for 50 m and 2,5
2
) and sound pressure lev-
WA
GB | 21
