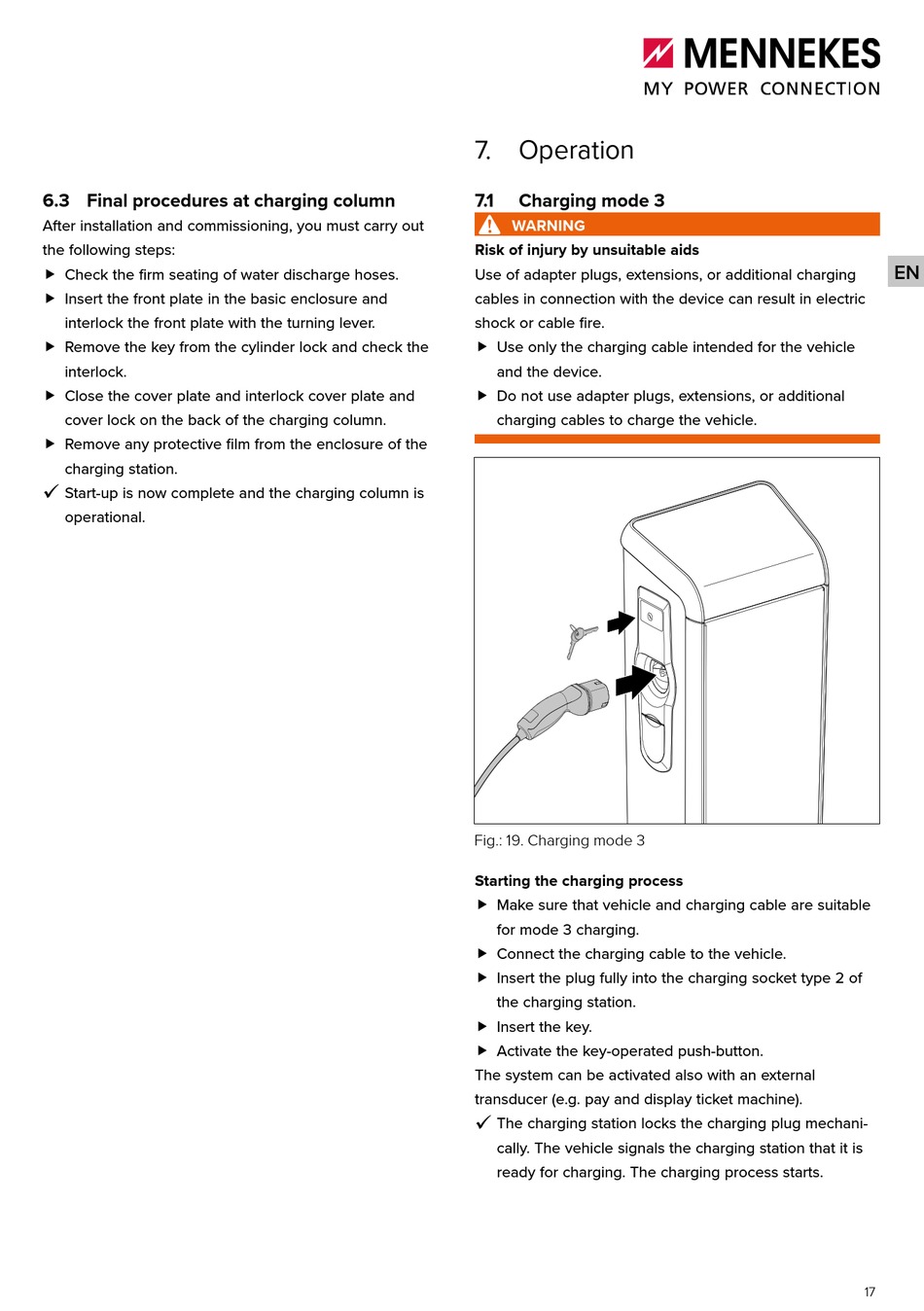

6.3 Final procedures at charging column
After installation and commissioning, you must carry out
the following steps:
f Check the firm seating of water discharge hoses.
f Insert the front plate in the basic enclosure and
interlock the front plate with the turning lever.
f Remove the key from the cylinder lock and check the
interlock.
f Close the cover plate and interlock cover plate and
cover lock on the back of the charging column.
f Remove any protective film from the enclosure of the
charging station.
9 Start-up is now complete and the charging column is
operational.
7. Operation
7.1 Charging mode 3
T
T
WARNING
Risk of injury by unsuitable aids
Use of adapter plugs, extensions, or additional charging
cables in connection with the device can result in electric
shock or cable fire.
f Use only the charging cable intended for the vehicle
and the device.
f Do not use adapter plugs, extensions, or additional
charging cables to charge the vehicle.
Fig.: 19. Charging mode 3
Starting the charging process
f Make sure that vehicle and charging cable are suitable
for mode 3 charging.
f Connect the charging cable to the vehicle.
f Insert the plug fully into the charging socket type 2 of
the charging station.
f Insert the key.
f Activate the key-operated push-button.
The system can be activated also with an external
transducer (e.g. pay and display ticket machine).
The charging station locks the charging plug mechani-
9
cally. The vehicle signals the charging station that it is
ready for charging. The charging process starts.
