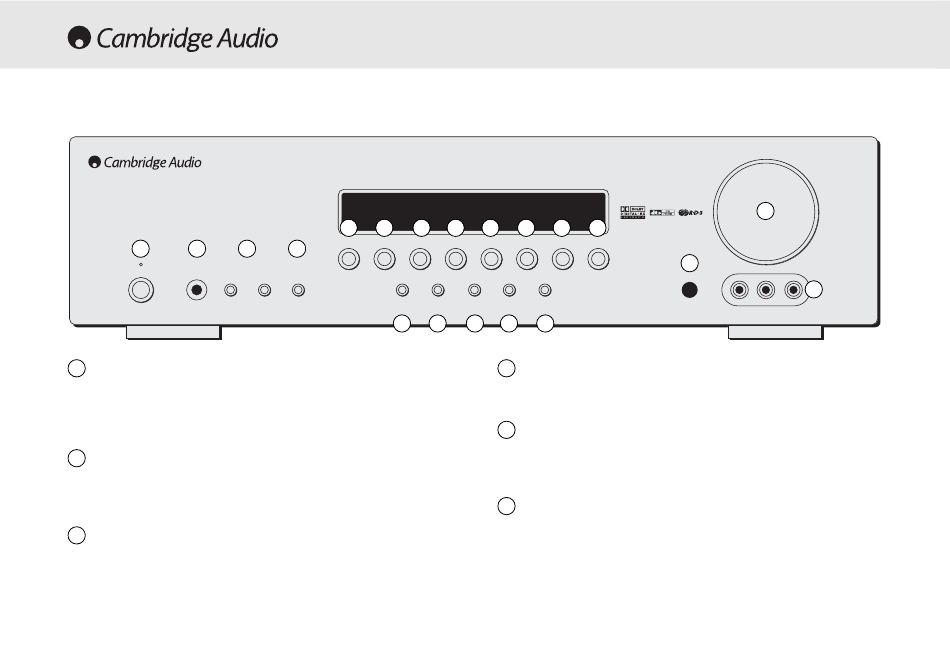

FRONT PANEL CONTROLS
1
2
3
Standby / On
Phones
–
Tuning
Standby/On
1
Switches the unit between Standby mode (indicated by dim power LED)
and On (indicated by bright power LED). Standby is a low power mode
where the power consumption is less than 10 Watts. The unit should be
left in Standby mode when not in use.
Phones
2
Allows for the connection of stereo headphones with a ¼" Jack plug.
Headphones with an impedance of between 32 and 600 ohms are
recommended.
Tuning + + /-
3
Used to tune FM frequencies and skip presets in Tuner mode.
8 Azur AV receiver
10
11
12
DVD
Video 1
Video 2
4
+
Mode/Store
Stereo
Dolby Digital EX/
DTS ES
5
6
13
14
15
16
17
Video 3
Tuner FM/AM Tape/MD/CDR
CD/Aux
6.1 Direct
Pro Logic II/
DSP
Input
Neo 6
Mode
Mode
7
8
9
Mode/Store
4
Press to cycle between Tuner modes (refer to the 'Operating
Instructions' of this manual for more information).
Stereo
5
Press to listen to a source in either analog stereo or digital (LPCM)
stereo (depending on the input mode) from the front left and right
loudspeakers only.
Dolby D D igital E E X / / D D TS E E S
6
Press to select between various standard Dolby Digital or DTS surround
5.1 modes (with suitably encoded digital source material). Also selects
extended Dolby Digital EX and DTS ES modes which provide 6.1 output
with suitably encoded EX/ES material. These modes can only be
decoded from digital audio sources (via Coaxial or Optical inputs). An
Autodetect mode is also available which allows the 540R V2.0 to
automatically set itself to the appropriate mode for digital material.
Volume
azur
540R
AV Receiver
19
18
Video
Left
Right
20
Video 3 inputs
