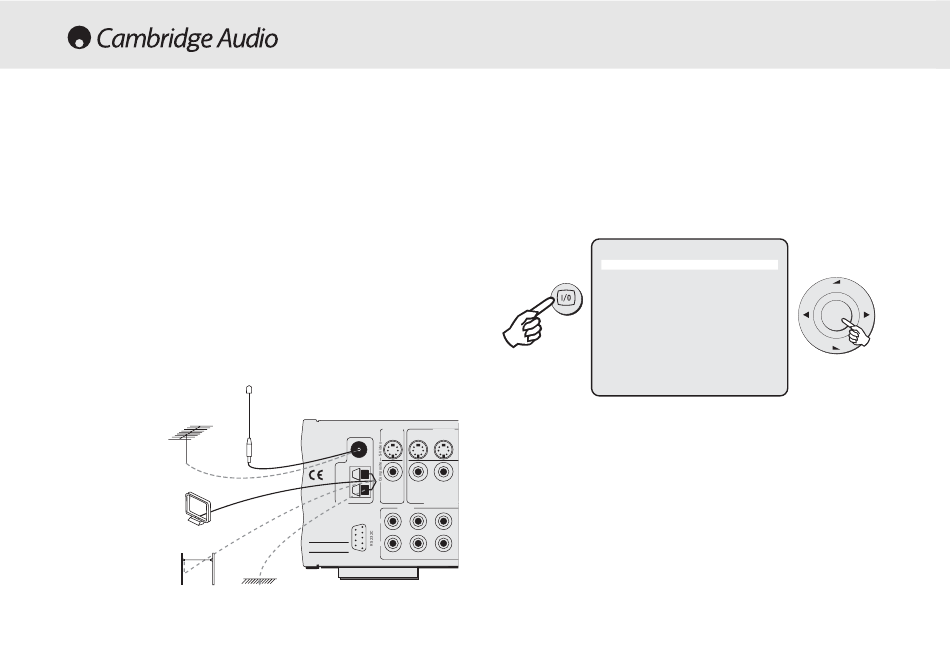

AERIAL CONNECTIONS

FM a a erial
Connect an aerial to the FM 75 ohm socket (a simple wire aerial is
supplied for temporary use). Extend the lead and move the aerial around
until you get the best reception. For continued use, we strongly
recommended using a 75 ohm outdoor FM aerial.
AM l l oop a a erial
Connect each end of the single length antenna to the antenna
terminals. Place the antenna as far from the main system as possible to
prevent unwanted noise and to obtain optimum reception. If the AM loop
aerial provided does not receive sufficient reception, it may be
necessary to use an outdoor AM aerial.
F F M M a a e e r r i i a a l l
O O R R
F F M M e e x x t t e e r r n n a a l l a a e e r r i i a a l l
A A M M l l o o o o p p a a e e r r i i a a l l
O O R R
A A M M e e x x t t e e r r n n a a l l a a e e r r i i a a l l
G G r r o o u u n n d d
20 Azur AV receiver
azur 540R V2.0
TV/Mon Out S-Video In
AV Receiver
Video 2 Video 1
FM 75Ω
AM
Loop
300Ω
This device
complies with
part 15 of Video 2 Video 1
FCC rules
Tuner Composite Video
Manufactured
Audio In
in an ISO9002
approved facility
L
Caution / Avis /Achtung
Risk of electric shock
Do not open
R
Risque de choc electrique
Ne pas ouvrir
Vorm öffnen des gërates
CD/Aux Video 2 Video 1
Netzstecker ziehen

ON-SCREEN DISPLAY (OSD)

Once the 540R V2.0 is connected to all AV components, the system
setup can be completed either using the display on the front of the unit,
or if connected to a screen/monitor, via an on-screen display setup
menu (recommended). To access this menu, press the On-screen
Display button on the remote control.
azur 540R V2.0 Menu
1. Speaker Config
2. Speaker Dealy
3. Level Calibration
4. Input Setup
5. Output Setup
6. Input Assign
7. OSD Setup
8. Bass/Treble Config
9. Sub Crossover
10. Software Version
(Quit OSD)
To move around the OSD setup menu, simply use the Navigator controls
on the remote. Press the Arrow right/left to scroll through the menu
options, and Volume up/down to move up or down. Press the centre
Enter button to progress into a sub-menu. Press the OSD button to save
the settings and exit the setup menu.
Note: T T he O O SD s s etup m m enu i i s o o nly a a vailable o o n a a
screen/monitor c c onnected v v ia S S -V V ideo o o r C C omposite i i nputs.
