LOUDSPEAKER CONNECTIONS

To avoid damaging the speakers with a sudden high-level signal, be sure
to switch the power off before connecting the speakers. Check the
impedance of your speakers. Speakers with an impedance of between
4 and 8 ohms (each) are recommended.
The coloured speaker terminals are positive (+) and the black speaker
terminals are negative (-). Make sure correct polarity is maintained at
each speaker connector or the sound can become weak and "phasey"
with little bass.

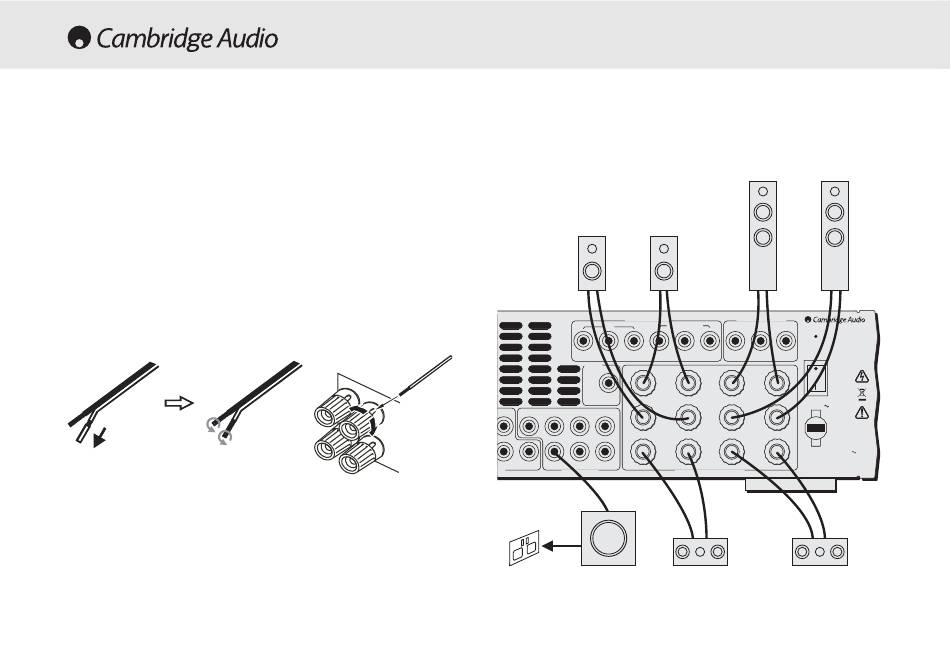

Prepare the speaker cords for connection by stripping off approximately
10mm (3/8") or less (no more than 10mm, as this could cause a short-
circuit) of the outer insulation. Twist the wire tightly together so there are
no loose ends. Unscrew the speaker terminal knob, insert the speaker
cable, tighten the knob and secure the cable.
Note: All connections are made via loudspeaker cable, except if using an
active subwoofer which would be connected via a standard RCA phono
cable. Banana Plugs (4mm standard) connected to the speaker cable
are recommended for direct insertion into the speaker terminals.
16 Azur AV receiver
S S u u r r r r o o u u n n d d S S u u r r r r o o u u n n d d
r r i i g g h h t t s s p p e e a a k k e e r r l l e e f f t t s s p p e e a a k k e e r r
Component Video In
Video 1/Video 2
DVD
Cr/Pr Cb/Pb Y Cr/Pr
Control
Bus
Sur
Left
In
Cen SB C SL L
Sur
Right
Sur
Back
SW SB SW SR R
t In 6.1 Preamp Out Speaker Impedance 4-8 Ohms
P P h h o o n n o o / / R R C C A A c c a a b b l l e e
S S u u r r r r o o u u n n d d b b a a c c k k
P P o o w w e e r r e e d d
s s u u b b w w o o o o f f e e r r
F F r r o o n n t t r r i i g g h h t t
F F r r o o n n t t l l e e f f t t
s s p p e e a a k k e e r r
s s p p e e a a k k e e r r
Component Video Out
Designed in London, England
www.cambridge-audio.com
Reset
Cb/Pb Y Cr/Pr Cb/Pb Y
On
Power
Left
Off
Power AC
Right
Centre
Power Rating: 230V AC 50Hz
Max Power Consumption :
Serial No. label fitted on underside
F F r r o o n n t t c c e e n n t t r r e e
s s p p e e a a k k e e r r
s s p p e e a a k k e e r r
615W
