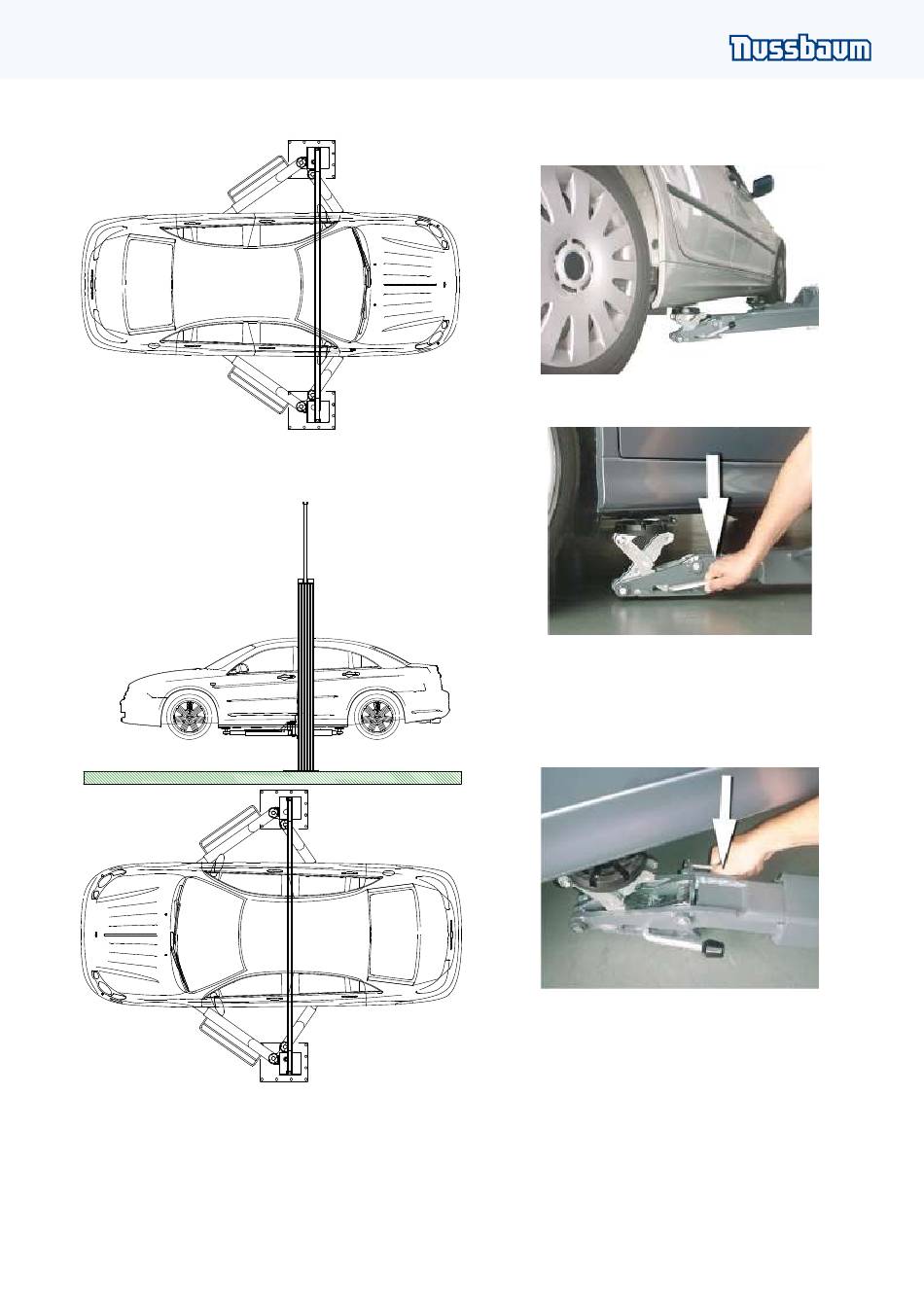

Bild. B) Drive in the middle of the lift.
Alternative lifting position
Swivel in the carrier arm and pull out properly to the de-
sired length.
The adjustable receiving plates must be placed at the
points specified by the vehicle manufacturer.
OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL_V4.6_DE-EN-FR-ES-IT
Version with MINI-MAX lifting arms
Figure 1: Position carrier plate below the fixture points approved by the
vehicle manufacturer
Figure 2: If required, place the carrier plate by pushing the lever at the
fixture points
Ensure that the ratchet is securely locked
!
into the intended position. Otherwise the
"MINI-MAX" can sink to its lowest position.
Figure 3: To release the fixture plate, the rear lever must be pushed.
• The lifting arm block must be ratcheted in after the fix-
ture point has been reached.
• After each set down of the vehicle, check the lifting arm
positions below the fixture points again and adjust as
required.
• Check that there are no people or objects in the hazard-
ous area of the lift.
