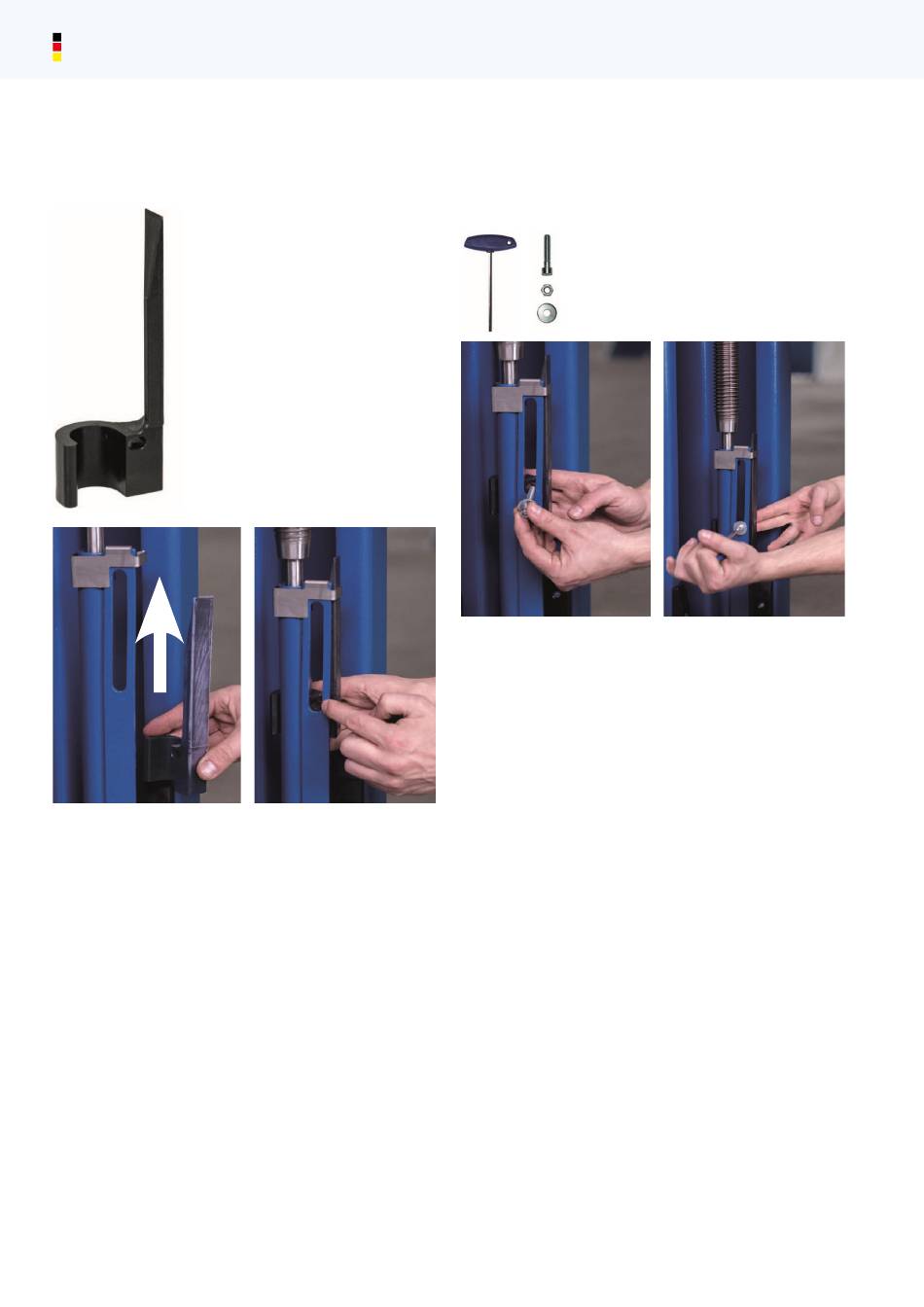

F) Place the guide bar onto the spindle bearing
and push from below into the fixing brack-
et.
Guide bar
130
G) Fasten the guide bar with M8 screws
Ensure that the guide bar and slot hole are fastened flush,
the guide bar reaches slightly over the edge.
Allen key 6 mm
Screw M8, Nut, Base plate
H) Visual inspection
Then do another safety inspection to ensure that nothing
shifted during screw tightening.
The guide bar and fixing bracket remain installed on the
lift.
Capture bar fixation to be integrated into
!
both columns!
