8.1.2 Configure analogue input 0-10 V
The analogue input of the module can be adapted for various applications.

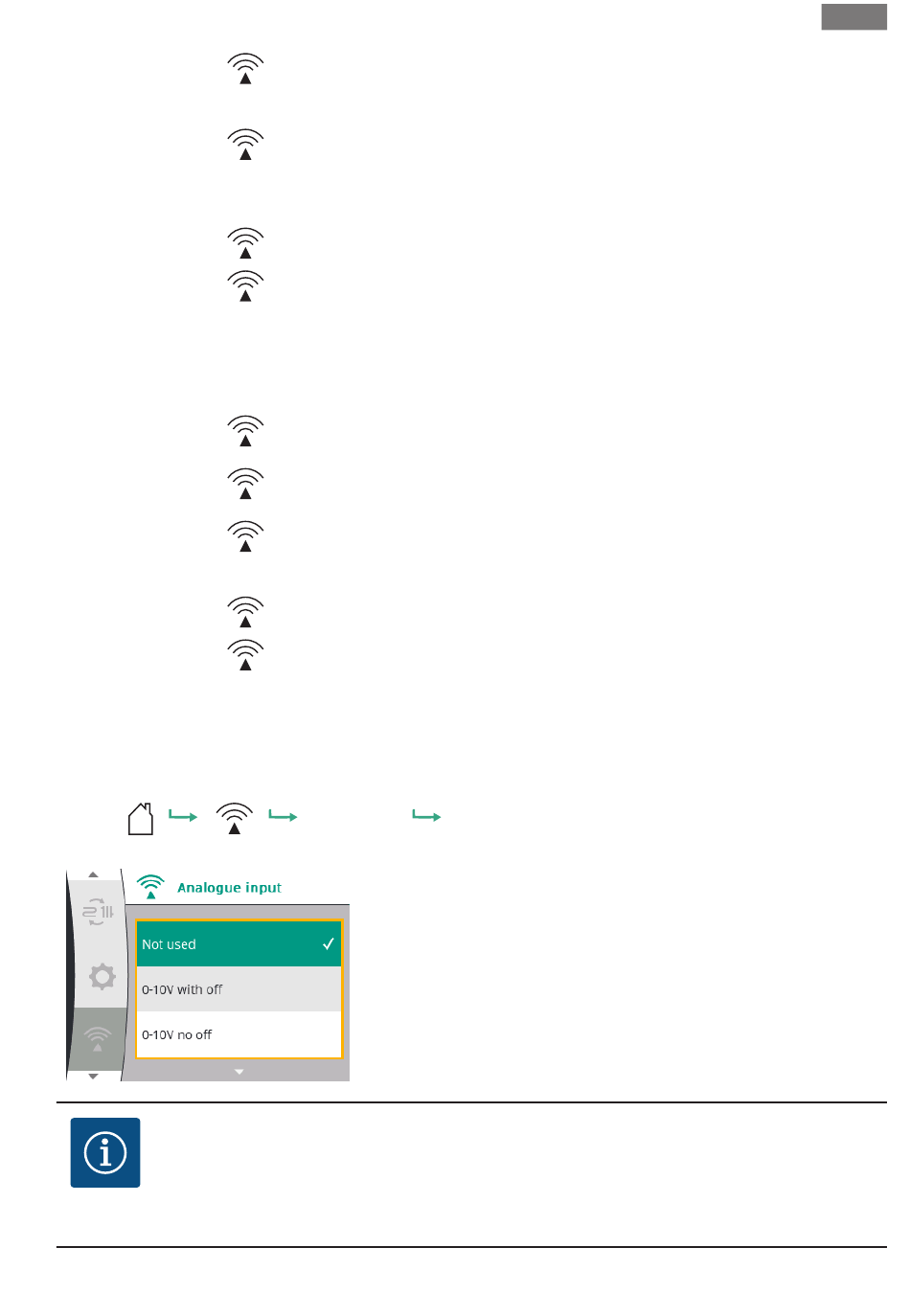

Settings are made via the pump operating element. Select menu:
NOTICE
Transfer curves for the 0-10 V signal are described in Section 6.1.
When control via the 0-10 V signal is activated, no setpoint adjustments of the control
mode can be made via the pump's operating button.
Installation and operating instructions • Wilo-Connect module BMS • Ed.01/2023-06
2-10V CB detec.
Digital input
Ext. MIN set.
Relay function
Relay active delay
Relay inactive delay
Relay test ctrl
SW version
Stacked WCM
WCM BMS
Not used (factory setting)
No 0-10 V signal is evaluated.
The analogue input is not active and does not influence the
pump's function.
The setpoint can still be adjusted via the pump's operating but-
ton.
Max setpoint
Min setpoint
No cable break detection
Not used
Ext. OFF
Ext. MAX
Ext. Min
5% ... 50%
Not used
SSM only errors
SSM err & warn
SBM motor in operation
SBM ready op.
SBM power ready
0 s ... 60 s
0 s ... 60 s
Normal
Forced active
Forced inactive
(Information)
Yes
No
Analogue input
