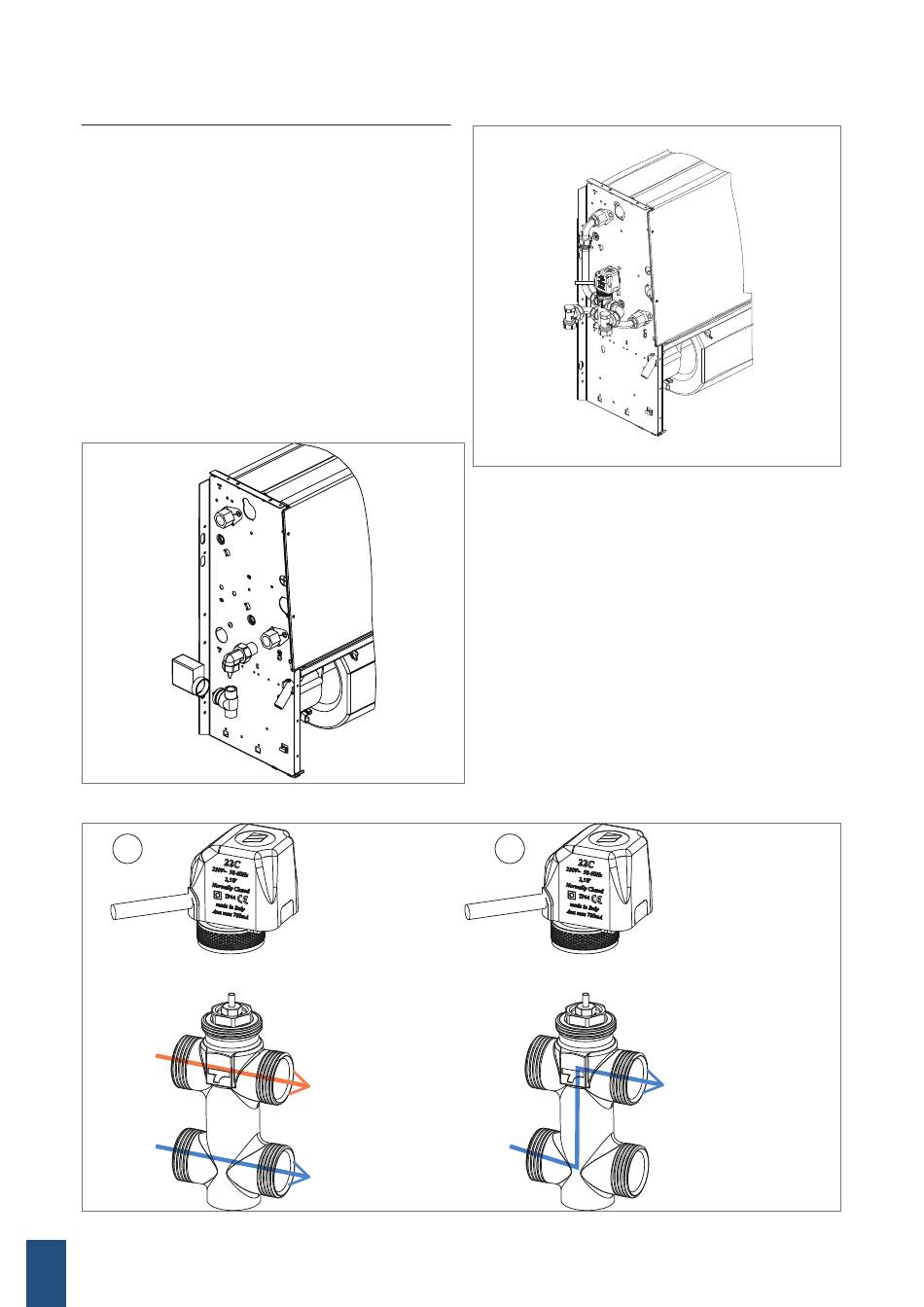

FACTORY MOUNTED KIT VALVES
The kit valves are available in different configurations:
• ON/OFF or MODULATING motor driven 2-way valve (table page 59)
• ON/OFF or MODULATING motor driven 3-way valve (table page 59)
• Pressure indipendent ON/OFF motor driven 2-way valve (refer to
Pressure independent manual FC66006204) p. 59.
connected to the control panel for fan coils, control the room tempera-
ture by stopping the water flow through the heat exchanger.
The kit includes:
• valve
• electrothermal actuator
• plumbing kits for installing the valve on the heat exchanger.
For Kv and hydraulic characteristics of 2, 3 way valves refer to tables page
59.
For other information refer to specific technical manual.
Factory mounted 2 way kit valve
Kit valvole 3vie montate in fabbrica 1) On mode ; 2) By-Pass mode
1
OUTLET COIL
INLET VALVE
14
FWZ / FWR / FWS
Factory mounted 3 way kit valve
OUTLET VALVE
INLET VALVE
INLET COIL
2
OUTLET VALVE
