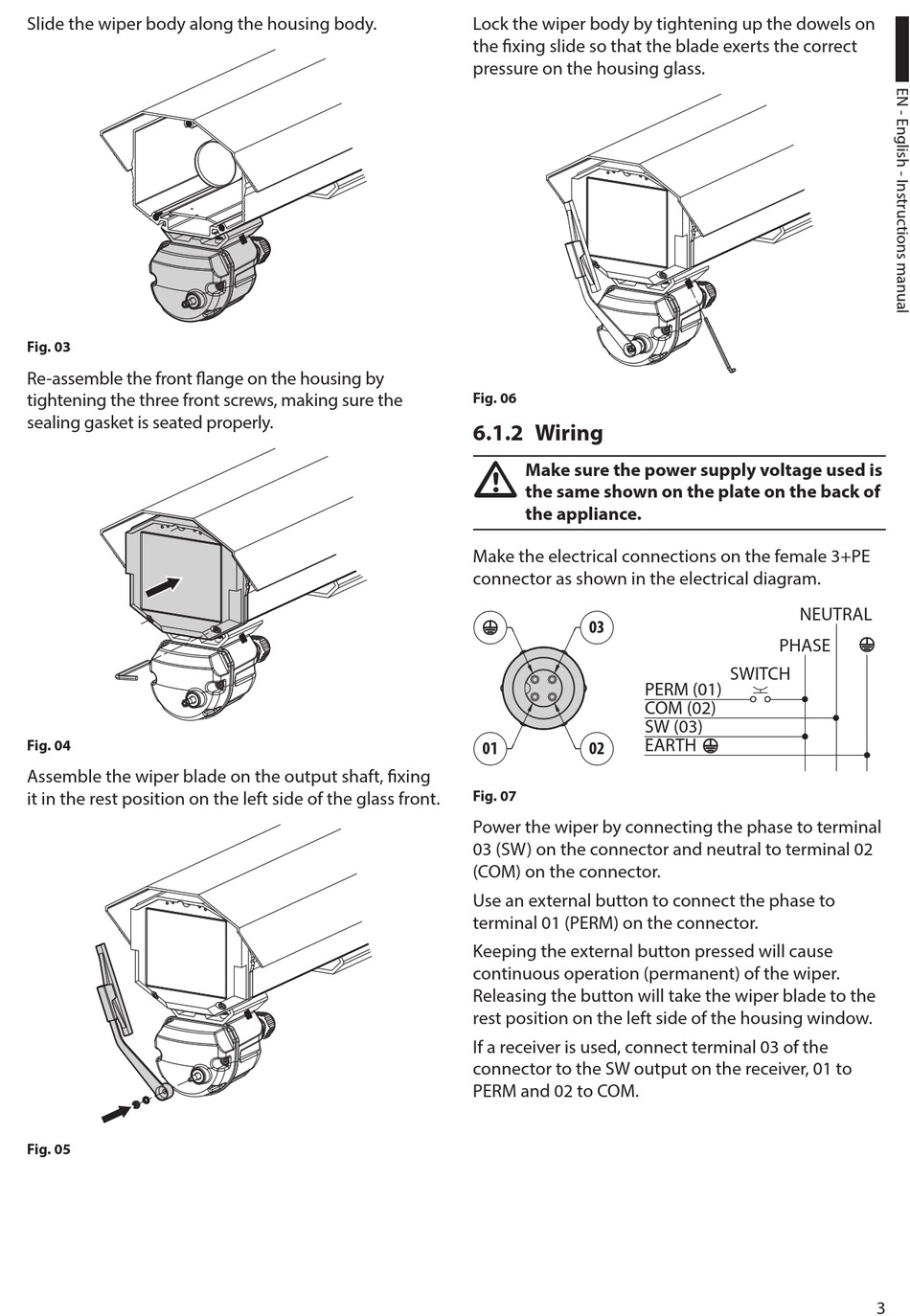

Slide the wiper body along the housing body.
Fig. 03
Re-assemble the front flange on the housing by
tightening the three front screws, making sure the
sealing gasket is seated properly.
Fig. 04
Assemble the wiper blade on the output shaft, fixing
it in the rest position on the left side of the glass front.
Fig. 05
Lock the wiper body by tightening up the dowels on
the fixing slide so that the blade exerts the correct
pressure on the housing glass.
Fig. 06
6.1.2 Wiring
Make sure the power supply voltage used is
h
the same shown on the plate on the back of
the appliance.
Make the electrical connections on the female 3+PE
connector as shown in the electrical diagram.
03
PERM (01)
COM (02)
SW (03)
EARTH
01 02
Fig. 07
Power the wiper by connecting the phase to terminal
03 (SW) on the connector and neutral to terminal 02
(COM) on the connector.
Use an external button to connect the phase to
terminal 01 (PERM) on the connector.
Keeping the external button pressed will cause
continuous operation (permanent) of the wiper.
Releasing the button will take the wiper blade to the
rest position on the left side of the housing window.
If a receiver is used, connect terminal 03 of the
connector to the SW output on the receiver, 01 to
PERM and 02 to COM.
NEUTRAL
PHASE
SWITCH
