TECHNICAL DOCUMENTATION – ORIGINAL
TYPE: VARIANT
DOCUMENTATION NO: IN0129
CHAPTER NO.: 040
CHAPTER: MAINTENANCE
!
Keep the unit clean and service periodically.
Protect the electrical installation against shock or water damage.
Do not use any sharp objects to remove dirt!

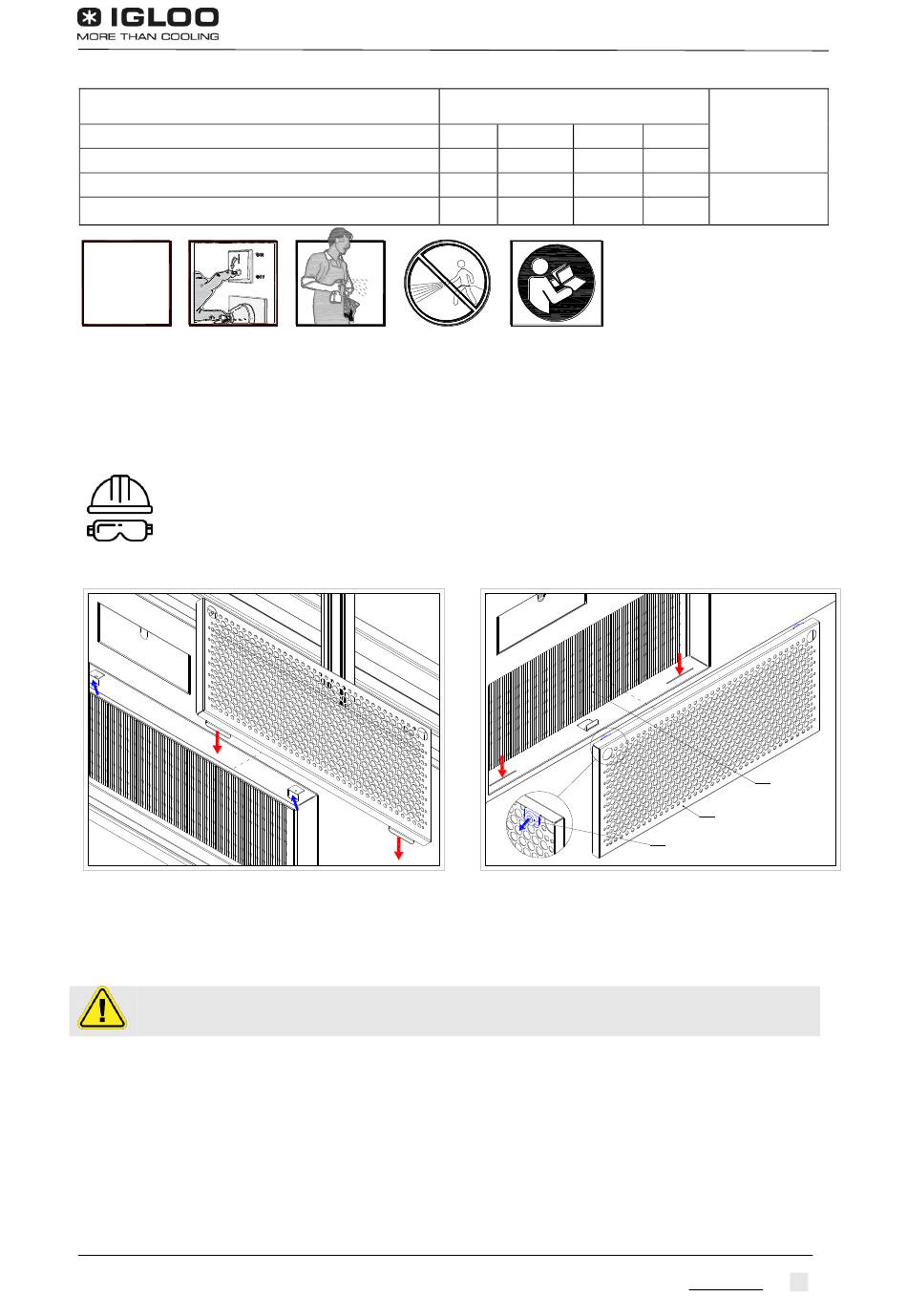

CAUTION! DEVICE CONDENSER (PLUG-IN)
To clean the condenser, remove the wind girder. Insert your fingers into the large holes located on
the sides of the air vent grille in its lower position and pull slightly downwards in your direction,
overcoming the magnet's pull, and then pull downwards so that the air vent grille hooks move out
of the perforations in the front panel.
31 - Air vent grille - used for proper ventilation of the unit. It is forbidden to cover the perforation!
560 - Device condenser (NOTE: should be cleaned regularly!)
700 – Neodymium magnet – tightening the wind chests to the right position.
ELECTRICAL DIAGRAM OF THE DEVICE
Each device sent to the Customer is equipped with a paper circuit diagram. The protected circuit diagram is
located near the device's control box and is intended for authorized service only.
IGLOO Stary Wiśnicz 289, 32-720 Nowy Wiśnicz, Tel.: +48 14/662 19 10
REVISION
No. DATE No.
A 02.12.22 D
B E
C F
info@igloo.pl / www.igloo.pl
EN
PAGE: 1/1
DATE
1st revision
DATE:
01.07.2022
560
31
700
19
