TECHNICAL DOCUMENTATION – ORIGINAL
TYPE: VARIANT
DOCUMENTATION NO: IN0129
CHAPTER NO.:
022
CHAPTER: OPERATION

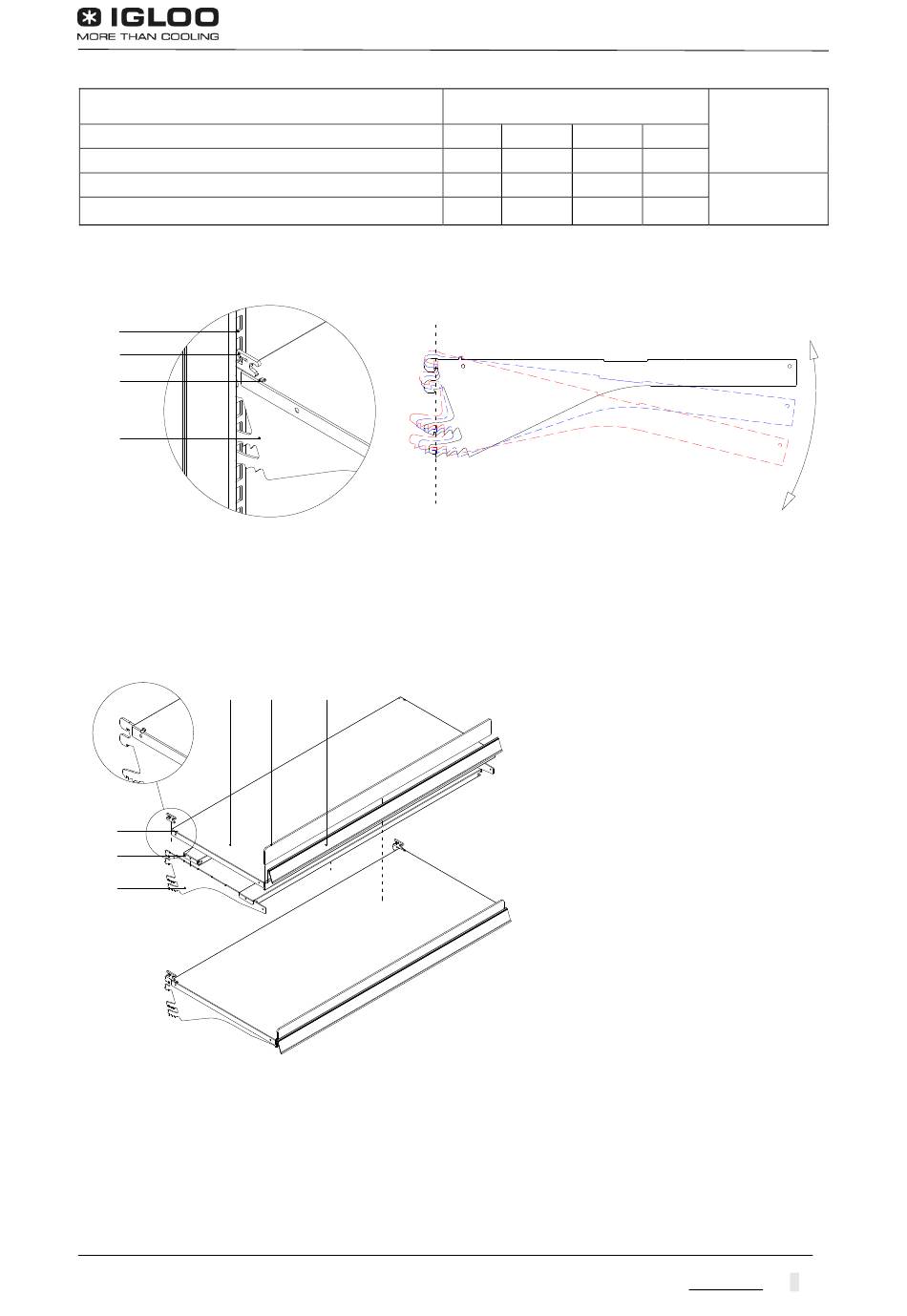

POSITION OF THE HOOK IN THE RACK AND ADJUSTMENT OF THE DISPLAY SHELF TILT
ANGLE:
200
173
167
180
167 – Protruding element on top of the hook to block the shelf from moving forward and backward
173 – Hook locking clip
180 – Display shelf assembly hook
200 – Perforated rack posts - hooks of display shelves are attached in the rack perforations
INSTALLATION OF THE METAL DISPLAY SHELF ON THE RACK
A
150 172
A
165
170
180
150 – Metal display shelves
165 – Perforation in the rear part of the shelf – The opening fits the protruding element (tooth) of the hook – The
shelf is blocked against moving forward and backward when the tooth is inserted into the perforation
170 – Shelf bracket – used as a reinforcement
171 – Shelf price bar
172 – Plastic shelf fence – prevents goods from sliding and falling off the shelf
180 - Display shelf assembly hook
