TECHNICAL DOCUMENTATION – ORIGINAL
TYPE: VARIANT
DOCUMENTATION NO: IN0129
CHAPTER NO.: 025

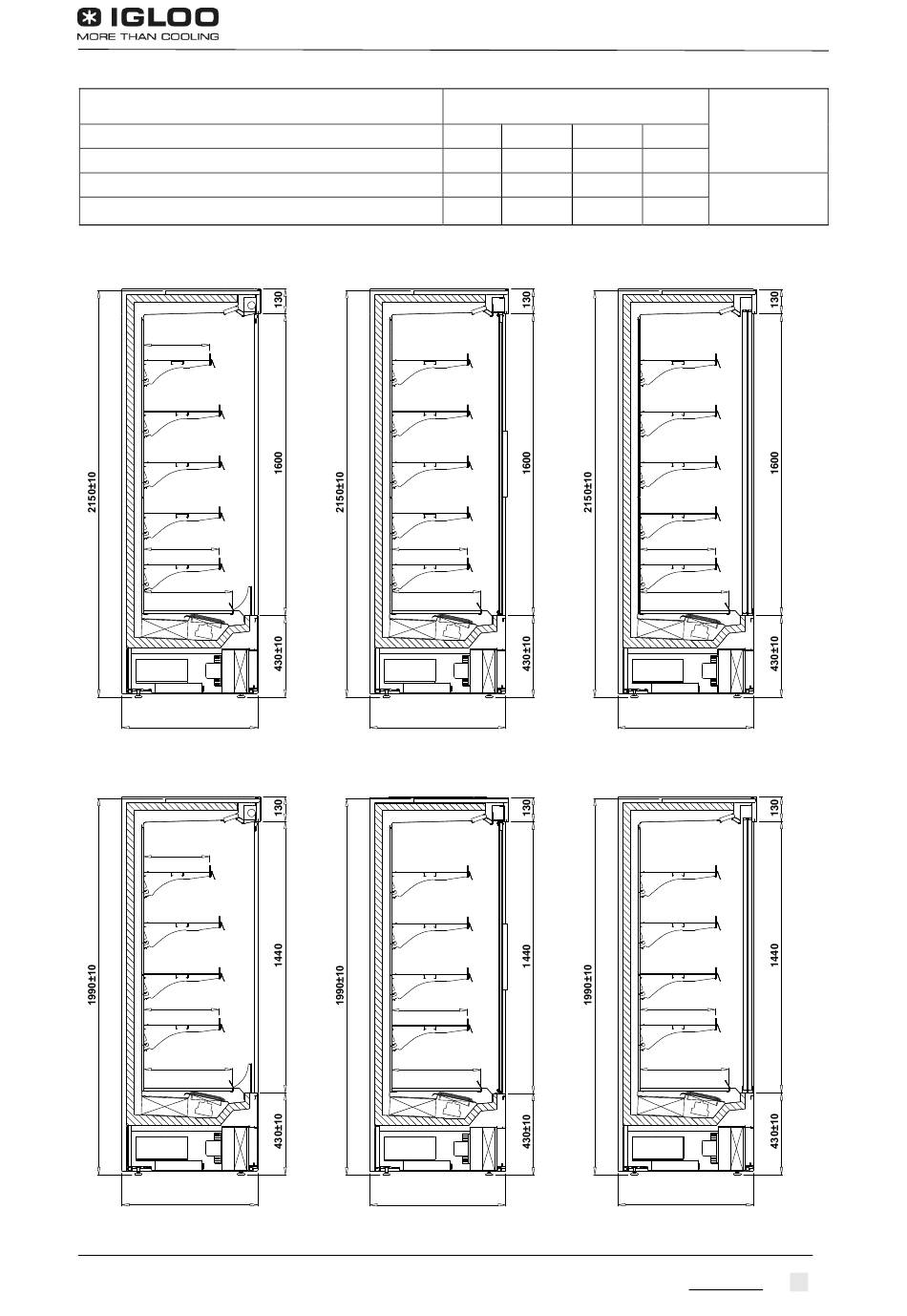

CHAPTER: SECTIONAL VIEWS
VARIANT 70H
350
400
470
720
VARIANT 70L
350
400
470
720
IGLOO Stary Wiśnicz 289, 32-720 Nowy Wiśnicz, Tel.: +48 14/662 19 10
REVISION
No. DATE
A
B
C
VARIANT 70H.DU
400
470
720
VARIANT 70L.DU
400
470
720
PAGE: 2/4
No. DATE
D
1st revision
E
DATE:
F
01.07.2022
VARIANT 70H.DP
400
470
720
VARIANT 70L.DP
400
470
720
