Configuration

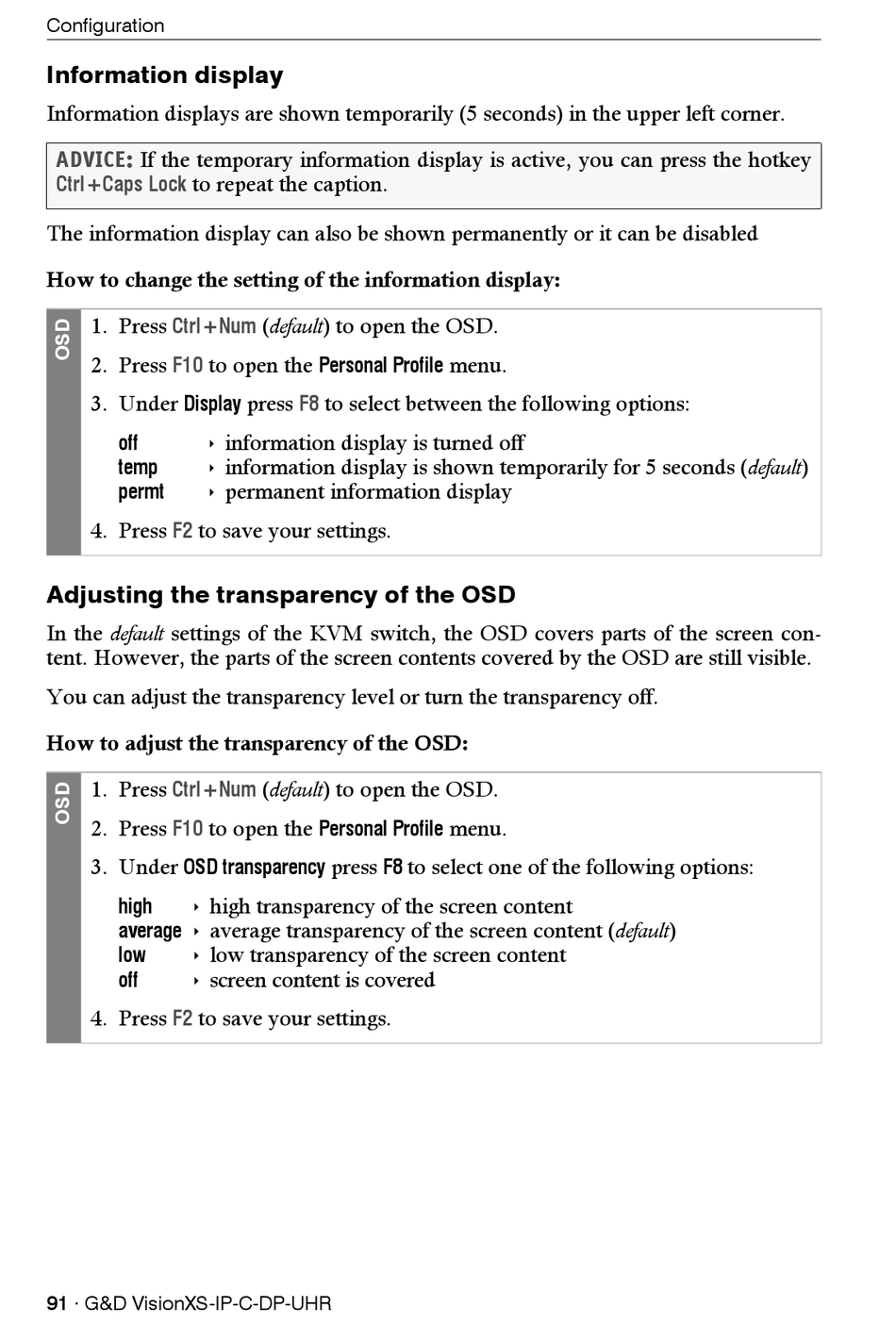

Information display

Information displays are shown temporarily (5 seconds) in the upper left corner.
ADVICE:
If the temporary information display is active, you can press the hotkey
Ctrl+Caps Lock to repeat the caption.
The information display can also be shown permanently or it can be disabled
How to change the setting of the information display:
1. Press Ctrl+Num
2. Press to open the
F10
3. Under
Display
off  information display is turned off
temp  information display is shown temporarily for 5 seconds (default)
permt  permanent information display
4. Press to save your settings.
F2

Adjusting the transparency of the OSD

In the default settings of the KVM switch, the OSD covers parts of the screen con-
tent. However, the parts of the screen contents covered by the OSD are still visible.
You can adjust the transparency level or turn the transparency off.
How to adjust the transparency of the OSD:
1. Press
Ctrl+Num
2. Press F10 to open the
3. Under
OSD transparency
high  high transparency of the screen content
average  average transparency of the screen content (default)
 low transparency of the screen content
low
 screen content is covered
off
4. Press F2 to save your settings.
91 · G&D VisionXS-IP-C-DP-UHR
(default) to open the OSD.
Personal Profile
press to select between the following options:
F8
(default) to open the OSD.
Personal Profile
press to select one of the following options:
F8
menu.
menu.
