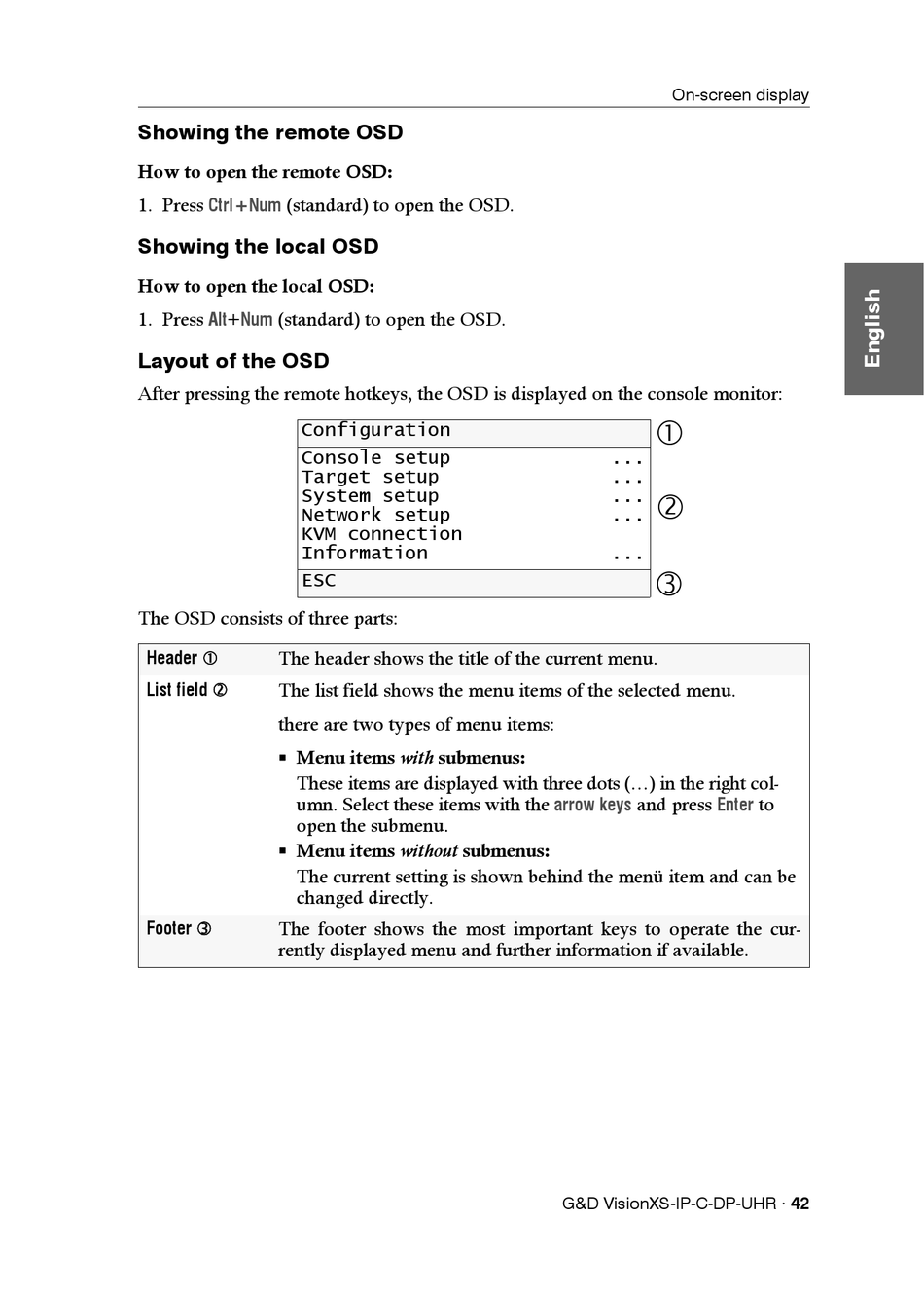

Showing the remote OSD

How to open the remote OSD:
1. Press (standard) to open the OSD.
Ctrl+Num

Showing the local OSD

How to open the local OSD:
1. Press Alt + Num (standard) to open the OSD.

Layout of the OSD

After pressing the remote hotkeys, the OSD is displayed on the console monitor:
Configuration
Console setup
Target setup
System setup
Network setup
KVM connection
Information
ESC
The OSD consists of three parts:
Header 
The header shows the title of the current menu.
List field  The list field shows the menu items of the selected menu.
there are two types of menu items:
 Menu items with submenus:
These items are displayed with three dots (...) in the right col-
umn. Select these items with the
open the submenu.
 Menu items without submenus:
The current setting is shown behind the menü item and can be
changed directly.
Footer 
The footer shows the most important keys to operate the cur-
rently displayed menu and further information if available.
On-screen display

...
...
...

...
...

arrow keys and press Enter
G&D VisionXS-IP-C-DP-UHR · 42
