Striking Plates - effeff 809 Montageanleitung

2.3.3 Striking Plates

2.3.3.1 Standard Striking plates
For the effeff security lock 809 we offer you four different, suitable striking plates: two flat
striking plates with a width of 20 or 24 mm and two angled striking plates.
The regulations on the following page must be observed when mounting the striking plates.

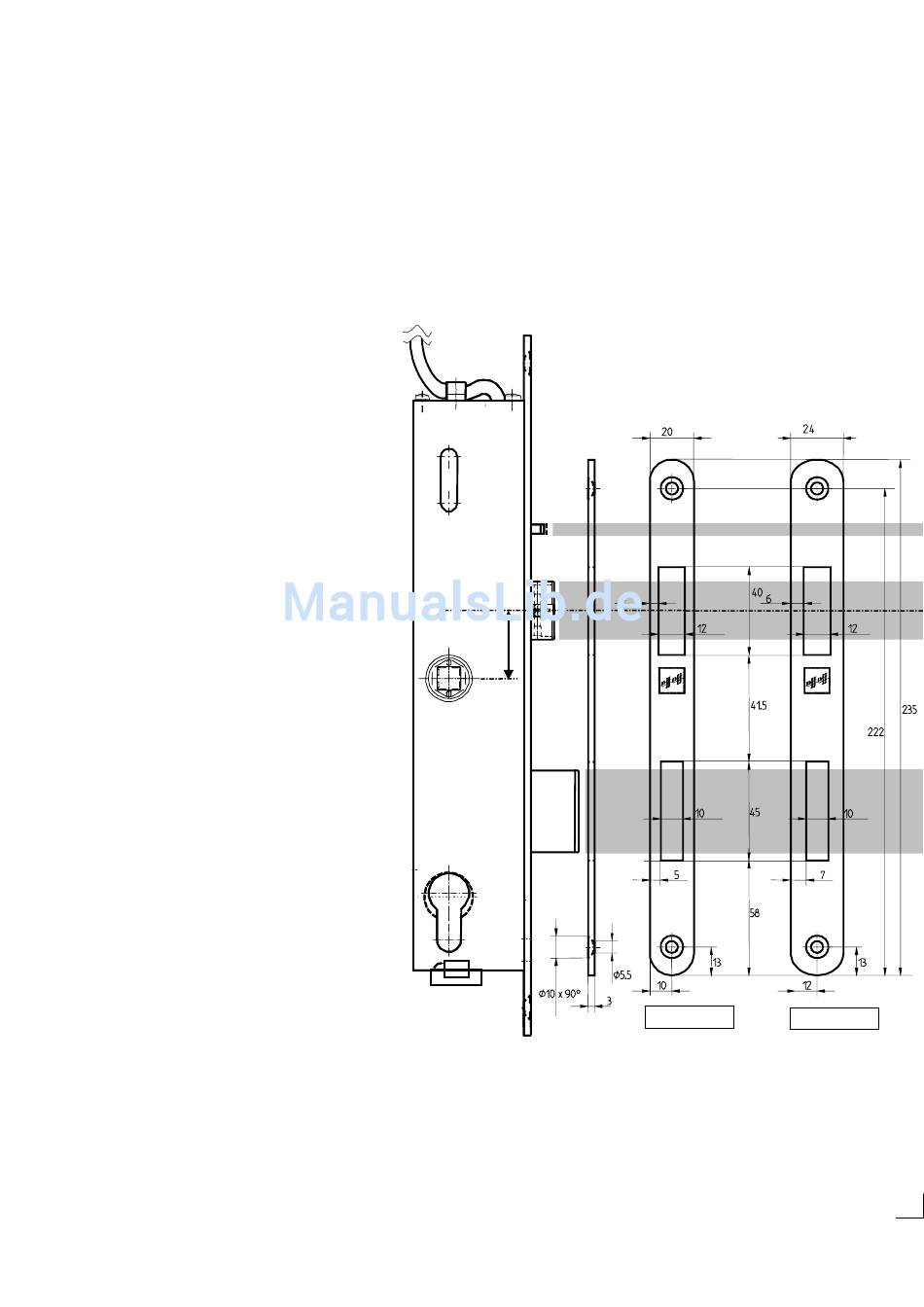

Flat Striking Plate
Attention!
The drawings opposite are not true-
to-scale presentations.
27,5
809 HZ 20
809 HZ 24
