between measurements with sensor 1 and measurements with sensor 2 is not
possible as both sensors are always measured together.
Important
Fit the supplied cover if you only use one input on the CMA5000/2.
The CMA charge amplifier is designed for direct voltage operation (18 ...
30 V ). The circuit is intended for operating with separated extra‐low voltage
DC
(SELV circuit).
Supply voltage 0V (GND) . . . . . . . . . . . . . . . . .
RANGE 1 / RANGE 2 . . . . . . . . . . . . . . . . . . . . . .
MEASURE / RESET . . . . . . . . . . . . . . . . . . . . . .
TEDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output signal -10 ... +10V . . . . . . . . . . . . . . . . . .
Ground for output signal . . . . . . . . . . . . . . . . . .
Do not assign ! . . . . . . . . . . . . . . . . . . . . . . . . . .
Supply voltage 18 ... 30V
1)
Operating on a SELV circuit (separated extra‐low voltage)

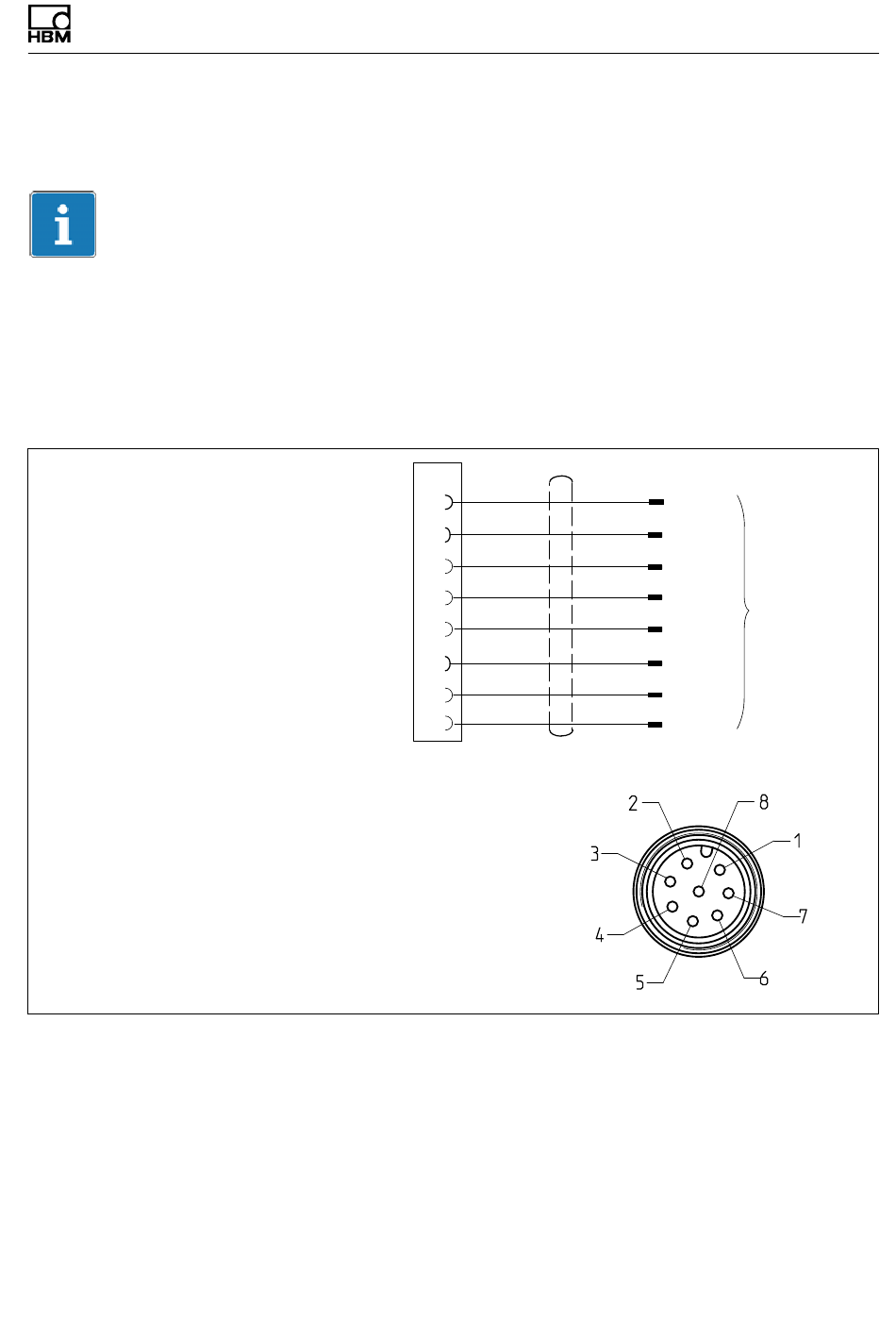

Fig. 7.1 Pin assignment
The output signal is present at pin 5 and pin 6 (ground), and is electrically
isolated from the supply voltage and the control inputs. The RANGE 1/2,
MEASURE/RESET and TEDS control inputs, as well as the supply voltage, are
at the same potential (pin 1, supply voltage 0 V). It is not necessary to ground
the housing.
CMA
1) . . . . . . . . . . . . . . . .
DC
A02559_04_YI0_01 HBM: public
1
2
3
4
5
6
7
8
Electrical connection
white
brown
green
KAB168
yellow
connection
cable wire
gray
assignment
pink
blue
red
M12 x 1, 8‐pin
17
