The user interface of the software HardBoot view

The user interface of the software HardBoot view enables you to control all functions
of the HardBoot system.

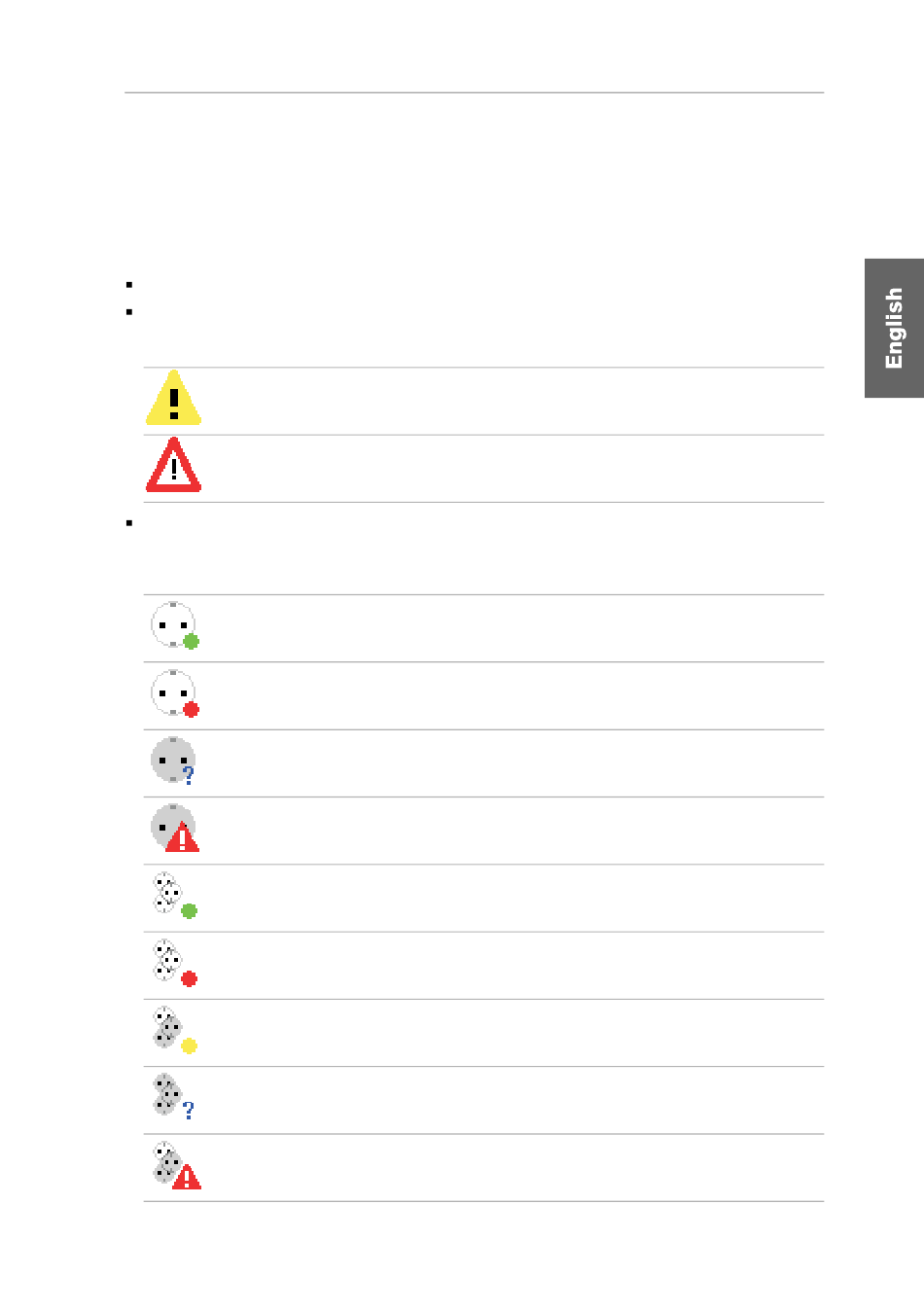

Functional division of the user interface
The user interface of the software consists of three functional areas:
All software functions can be operated through the menu bar .
A search field is placed within the status area. In this area, additional warning
signs appear where necessary:
The yellow warning sign appears if the network connection is disturbed
(see page 29).
The red warning sign appears if the power supply of the HardBoot system
is interrupted (see page 29).
The overview of power outlets provides a list of all power outlets and the established
groups. The updated status of the power outlet or of the group is signaled to the
user by different symbols:
The power outlet is turned on (green marker).
The power outlet is turned off (red marker).
The switching status of the power outlet could not be detected.
The HardBoot system does not supply the power outlet with power.
Check the power supply of the HardBoot system.
All power outlets of the group are turned on (green marker).
All power outlets of the group are turned off (red marker).
The power outlets of the group are partly turned on and partly turned off
(yellow marker).
The switching status of at least one power outlet could not be detected.
At least one power outlet is not supplied with power by the HardBoot system .
Check the system's power supply.
Operating with HardBoot view
