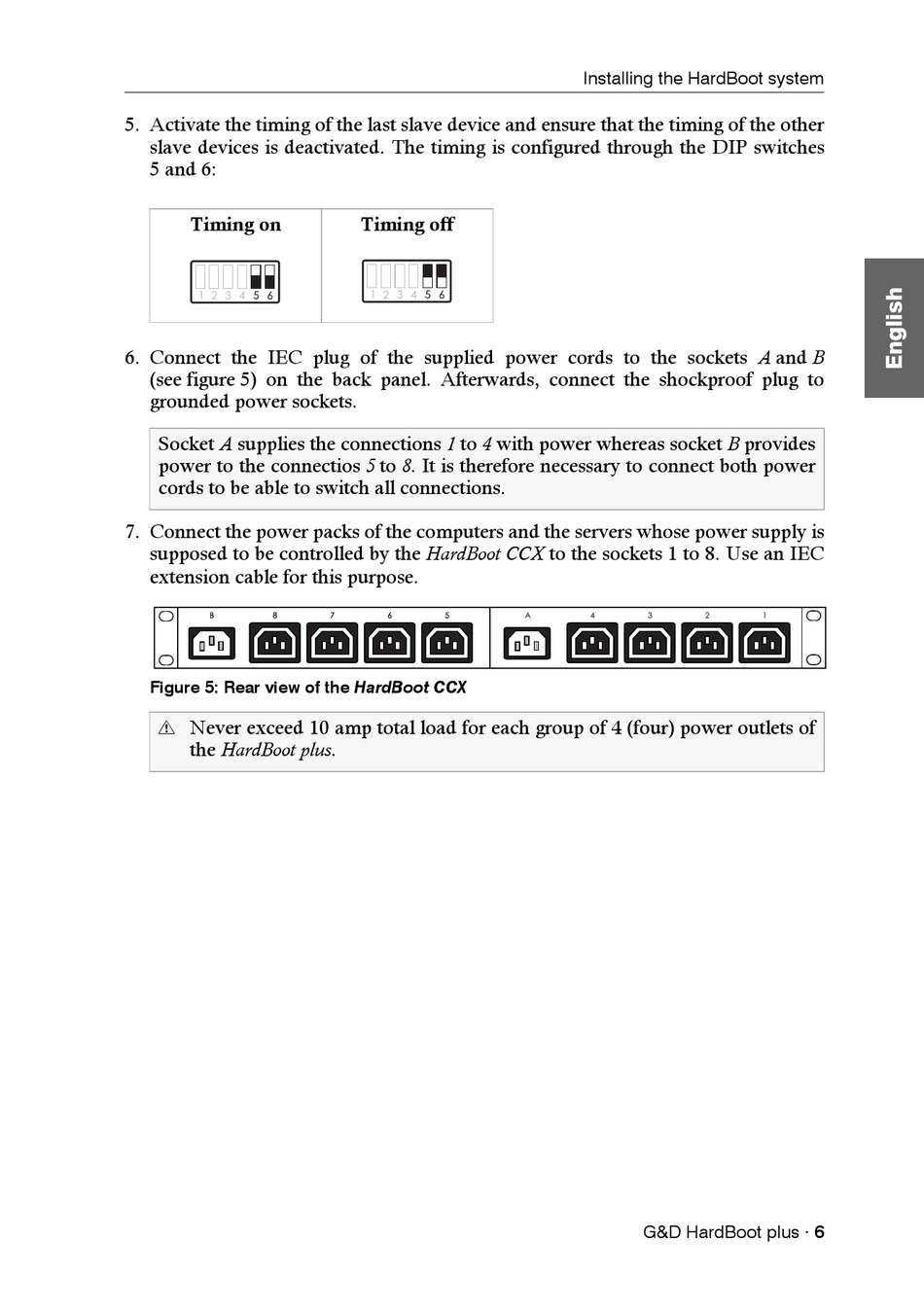

5. Activate the timing of the last slave device and ensure that the timing of the other
slave devices is deactivated. The timing is configured through the DIP switches
5 and 6:
Timing on
6. Connect the IEC plug of the supplied power cords to the sockets A and B
(see figure 5) on the back panel. Afterwards, connect the shockproof plug to
grounded power sockets.
Socket A supplies the connections 1 to 4 with power whereas socket B provides
power to the connectios 5 to 8. It is therefore necessary to connect both power
cords to be able to switch all connections.
7. Connect the power packs of the computers and the servers whose power supply is
supposed to be controlled by the HardBoot CCX to the sockets 1 to 8. Use an IEC
extension cable for this purpose.
Figure 5: Rear view of the HardBoot CCX
! Never exceed 10 amp total load for each group of 4 (four) power outlets of
the HardBoot plus.
Timing off
Installing the HardBoot system
G&D HardBoot plus · 6
