1.5.

Display elements and connectors

•
The MIE 8-00, MIE 16-00, MIE 4-02 and MIE 3-02 come with one module A.
•
The MIE 32-00, MIE 8-02 and MIE 6-02 come with two separate modules A and B.
1.5.1.

Display elements

The LEDs show the state of the output modulators:
•
When a modulator is filled with content and the modulator is not overloaded, the corresponding LED lights up green.
•
If a modulator is on but not filled (without content), the corresponding LED flashs.
•
If a modulator is overloaded (too much content), the LED lights up red.
•
In case a modulator is turned off, the corresponding LED is off.

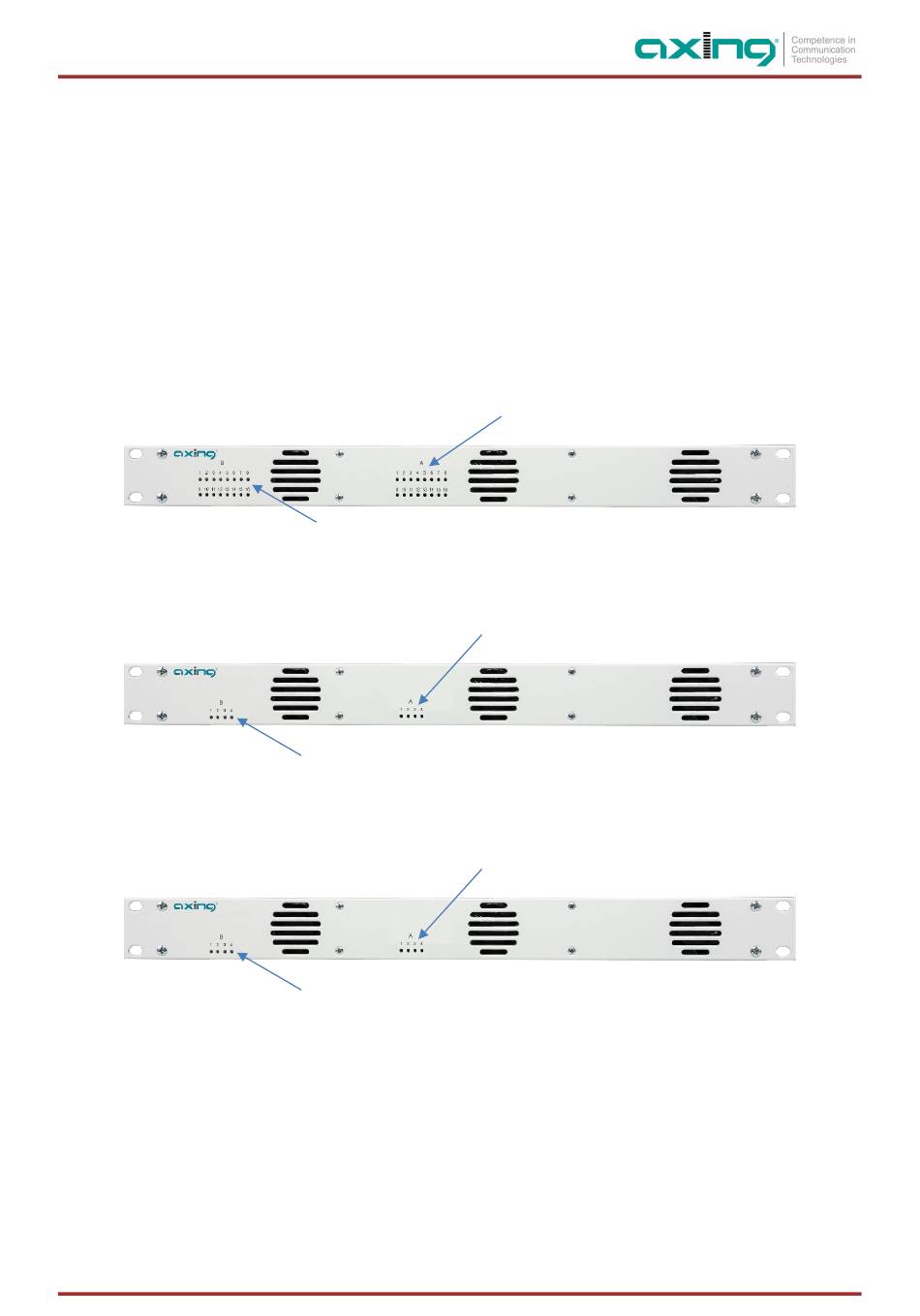

MIE 8-00, MIE 16-00, MIE 32-00
MIE 4-02 und MIE 8-02
MIE 3-02 und MIE 6-02
2022-05-31 | Technical improvements, changes in design, printing- and other errors reserved. | BA_MIE.pdf |
LEDs 1...16
of module B (MIE 32-00)
LEDs 1...4
of module B (MIE 8-02)
LEDs 1...4
of module B (MIE 3-02)
LEDs 1...8 of module A (MIE 8-00)
LEDs 1...16 of module A (MIE 16/32-00)
LEDs 1...4
of module A (MIE 4-02/8-02)
LEDs 1...3
of module A (MIE 3-02/6-02)
