3.2.

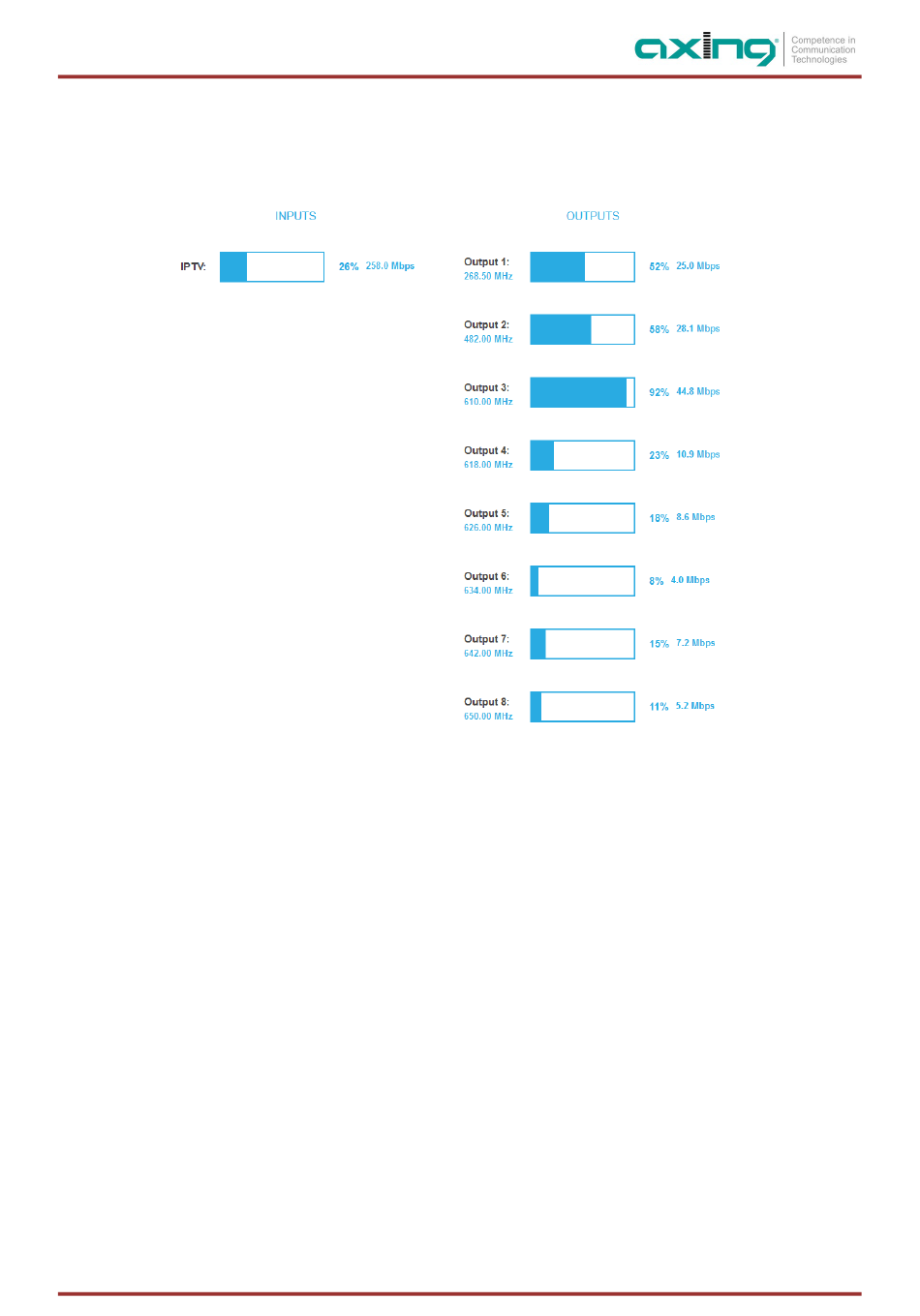

Front page

3.2.1.

Input

The data rate of the IPTV- input ist shown.
Input port redundancy
If the CAS interface is used as a redundant IPTV input and the MIE has switched to this input, this is displayed on the front page
(CAS port used).
3.2.2.

Outputs

The fill level of all modulators is shown. The number of chosen programmes and the configuration of the modulators have an
influence to the fill level. If the current fill level exceeds the maximal fill level, it may cause image disturbances, e.g. mosaic
images.
To ensure an undisturbed reception, a reserve must absolutely be observed. We recommend you to set the maximal fill level
to 90%.
From a fill level of 99%, this is indicated in red.
