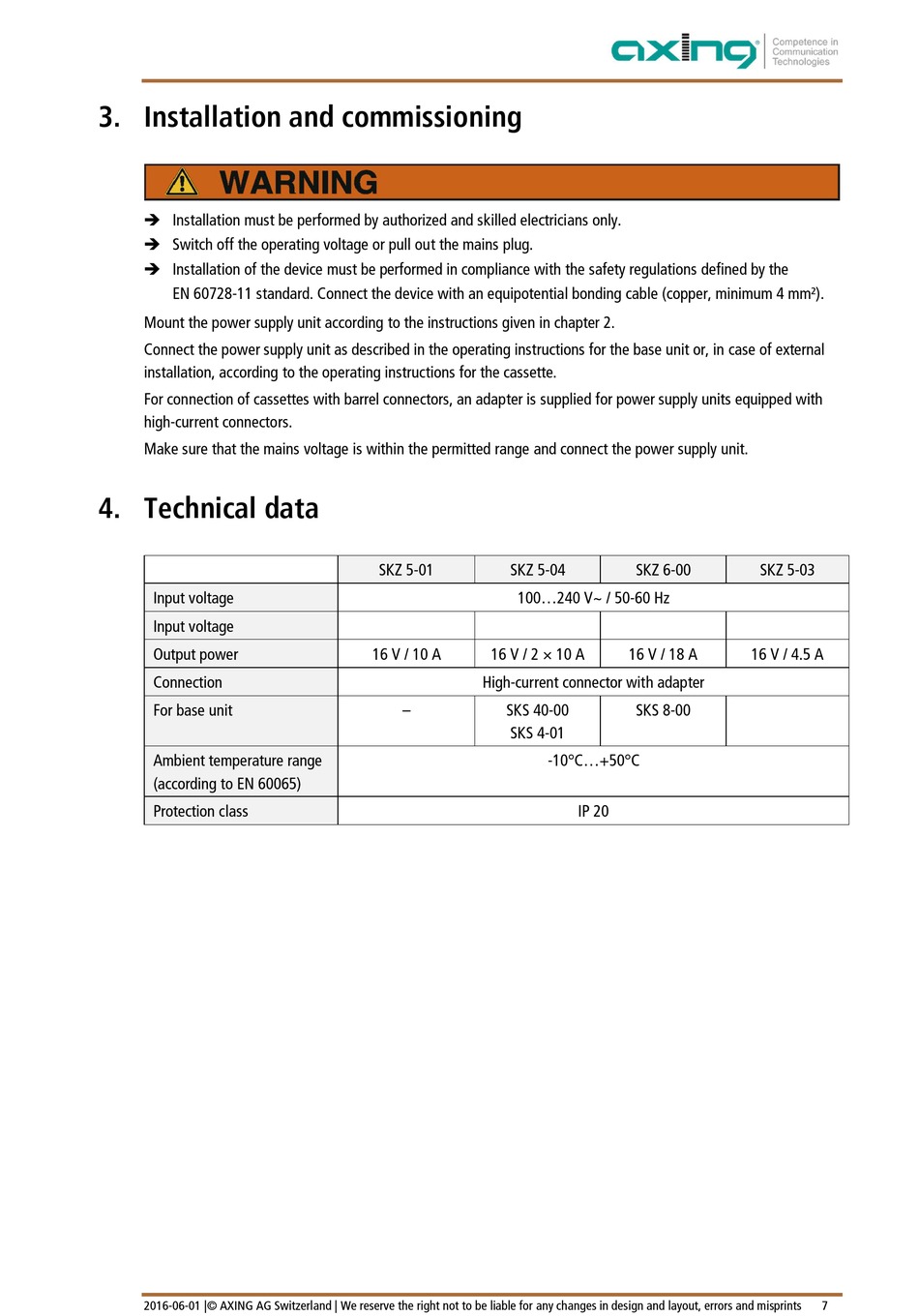

3. Installation and commissioning

 Installation must be performed by authorized and skilled electricians only.
 Switch off the operating voltage or pull out the mains plug.
 Installation of the device must be performed in compliance with the safety regulations defined by the
EN 60728-11 standard. Connect the device with an equipotential bonding cable (copper, minimum 4 mm²).
Mount the power supply unit according to the instructions given in chapter 2.
Connect the power supply unit as described in the operating instructions for the base unit or, in case of external
installation, according to the operating instructions for the cassette.
For connection of cassettes with barrel connectors, an adapter is supplied for power supply units equipped with
high-current connectors.
Make sure that the mains voltage is within the permitted range and connect the power supply unit.

4. Technical data

Input voltage
Input voltage
Output power
Connection
For base unit
Ambient temperature range
(according to EN 60065)
Protection class
2016-06-01 |© AXING AG Switzerland | We reserve the right not to be liable for any changes in design and layout, errors and misprints
SKZ 5-01 SKZ 5-04
100...240 V~ / 50-60 Hz
16 V / 10 A 16 V / 2 × 10 A
High-current connector with adapter
– SKS 40-00
SKS 4-01
SKZ 6-00
16 V / 18 A
SKS 8-00
-10°C...+50°C
IP 20
SKZ 5-03
16 V / 4.5 A
