Insert the Left and Right Handrail Arm (4L,4R) into the tube of the Left and Right Handrails (3L, 3R) and then tighten with removed four
M8×35 Carriage Bolts (32), four
Screwdriver provided.
Phillips Screwdriver provided.
6.

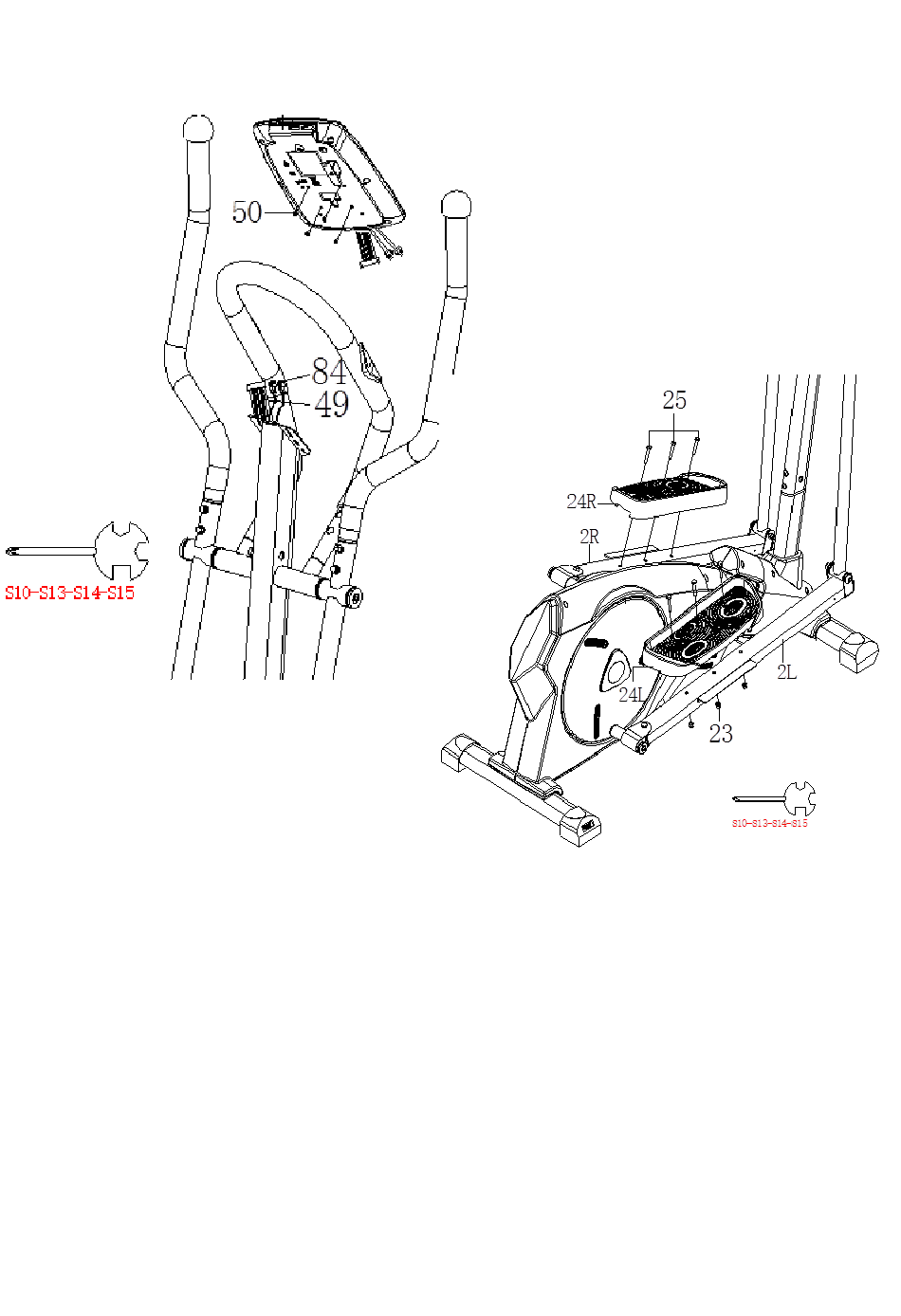

Left and Right Foot Pedals Installation
Attach the Left and Right Foot Pedal (24L,24R) onto the Left and Right Foot Bar (2L,2R) with six M10x45 Hexagon Bolts (25) and M8 Nylon
Nuts (23). Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
Φ16×Φ8×1.5 Arc Washers (33) and four M8 Cap Nuts (34). Tighten bolts with one Multi Hex Tool with Phillips
5.
Computer Installation
Remove four M5×10 Bolts (50) from the Computer (48).
Remove Bolts with Multi Hex Tool with Phillips Screwdriver
provided.
Connect the Extension Sensor Wire (49) and Hand Pulse Sensor
Wires (84) to the wires that come from the Computer (48). Tuck
wires into the Handlebar Post (5). Attach Computer (48) onto
the top end of the Handlebar Post (5) with four M5×10 Bolts
(50) that were removed. Tighten bolts with Multi Hex Tool with
