ASSEMBLY INSTRUCTION

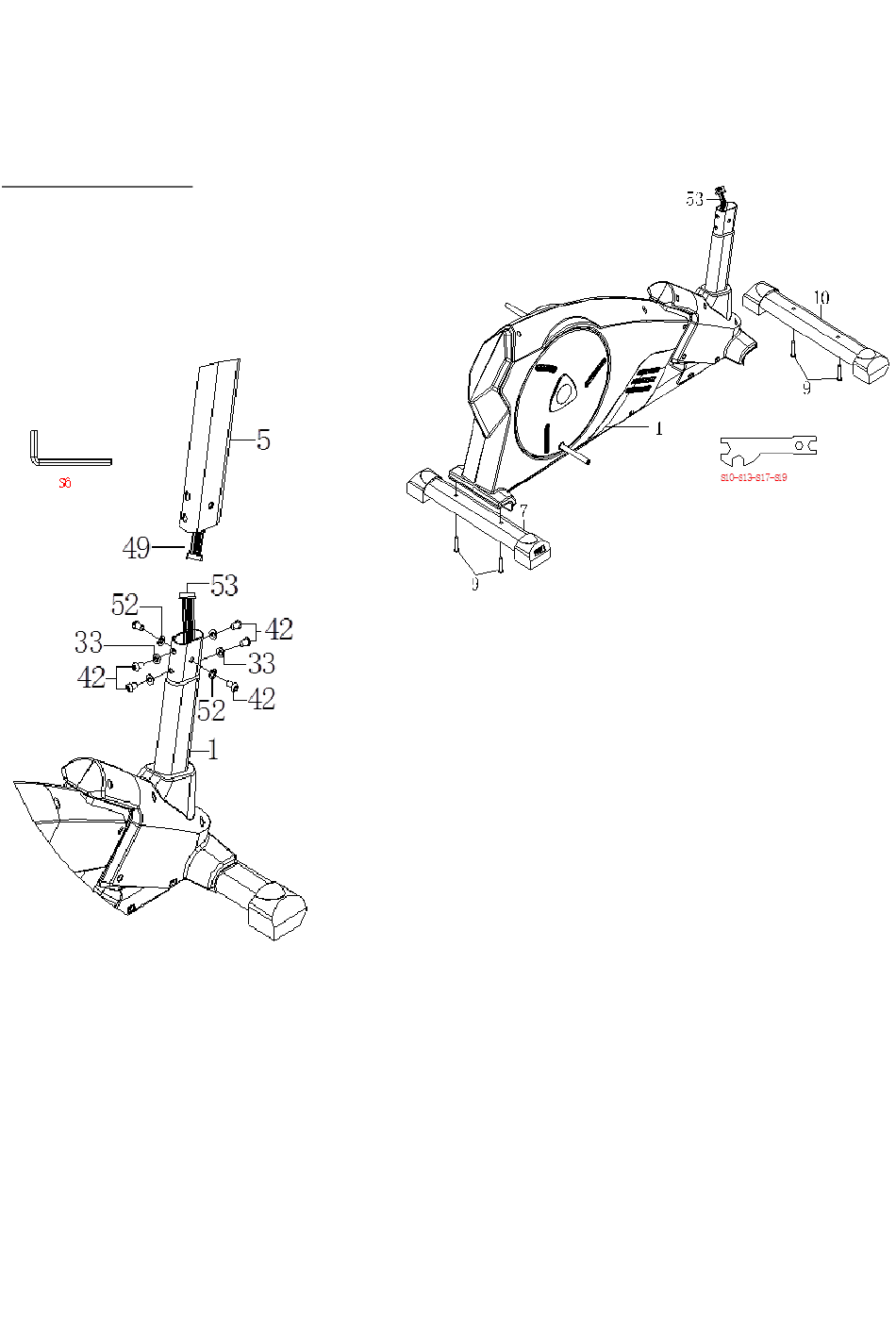

1.
Front and Rear Stabilizers Installation
Attach the Front Stabilizer (10) onto the front curve
of the Main Frame (1) with two M8 x 55 Hexagon
Bolts (9). Tighten bolts with Multi Hex Tool provided.
Attach the Rear Stabilizer (7) onto the front curve of
the Main Frame (1) with two M8 x 55 Hexagon Bolts
(9). Tighten bolts with Multi Hex Tool provided.
2.
Handlebar Post Installation
Remove six M8x15 Hexagon Bolts (42), two Φ8×Φ16×δ1.5 Flat Washers (52) and four
Φ16×Φ8×1.5 Arc Washers (33) from the tube of Main Frame (1). Remove bolts with S6
Allen Wrench provided.
Connect the Sensor Wire (53) from the Main Frame (1) to the Extension Sensor Wire
(49) from the Handlebar Post (5).
Insert the Handlebar Post (5) onto the tube of Main Frame (1) and secure with six
M8x15 Hexagon Bolts (42), two Φ8×Φ16×δ1.5 Flat Washers (52) and four
Φ16×Φ8×1.5 Arc Washers (33) that were removed. Tighten bolts with S6 Allen
Wrench provided.
