English
1 Blade scabbard
The blade scabbard protects against contact
with the cutting blades.
2 Loop handle
The loop handle is used to hold, control and
carry the hedge trimmer.
3 Control bar
The control bar switches the hedge trimmer
on and off together with the trigger.
4 Battery compartment
The battery compartment holds the battery.
5 Locking lever
The locking lever holds the battery in the bat‐
tery compartment.
6 Locking lever
The locking lever unlocks the trigger.
7 Ergo lever
The ergo lever holds the locking lever in posi‐
tion when the trigger is released.
8 Control handle
The control handle is used to control, hold
and guide the hedge trimmer.
9 Trigger
The trigger switches the hedge trimmer on
and off together with the control bar.
10 Locking slide
The locking slide unlocks the rotating control
handle.
11 Screw plug
The screw plug closes the filler opening for
STIHL multi-purpose grease.
12 Hand guard
The hand guard protects the hand on the loop
handle from contact with the cutting blades.
13 Cut protection
The cut protection helps protect user's thigh
from contact with rear end of the cutting
blades.
14 Cutting blades
The cutting blades cut the material to be trim‐
med.
15 Tip guard
The tip guard protects the tip of the cutting
blades from contact with foreign objects.
16 Battery
The battery supplies power to the hedge trim‐
mer.
17 LEDs
The LEDs indicate the state of charge of the
battery and any faults.
22
18 Pushbutton
The pushbutton activates the LEDs on the
battery. The pushbutton activates and deacti‐
vates Bluetooth® radio interface (if available).
19 "BLUETOOTH
®
" LED (only for batteries with
)
The LED indicates the activation and deacti‐
vation of the Bluetooth® interface.
# Rating plate with the machine number

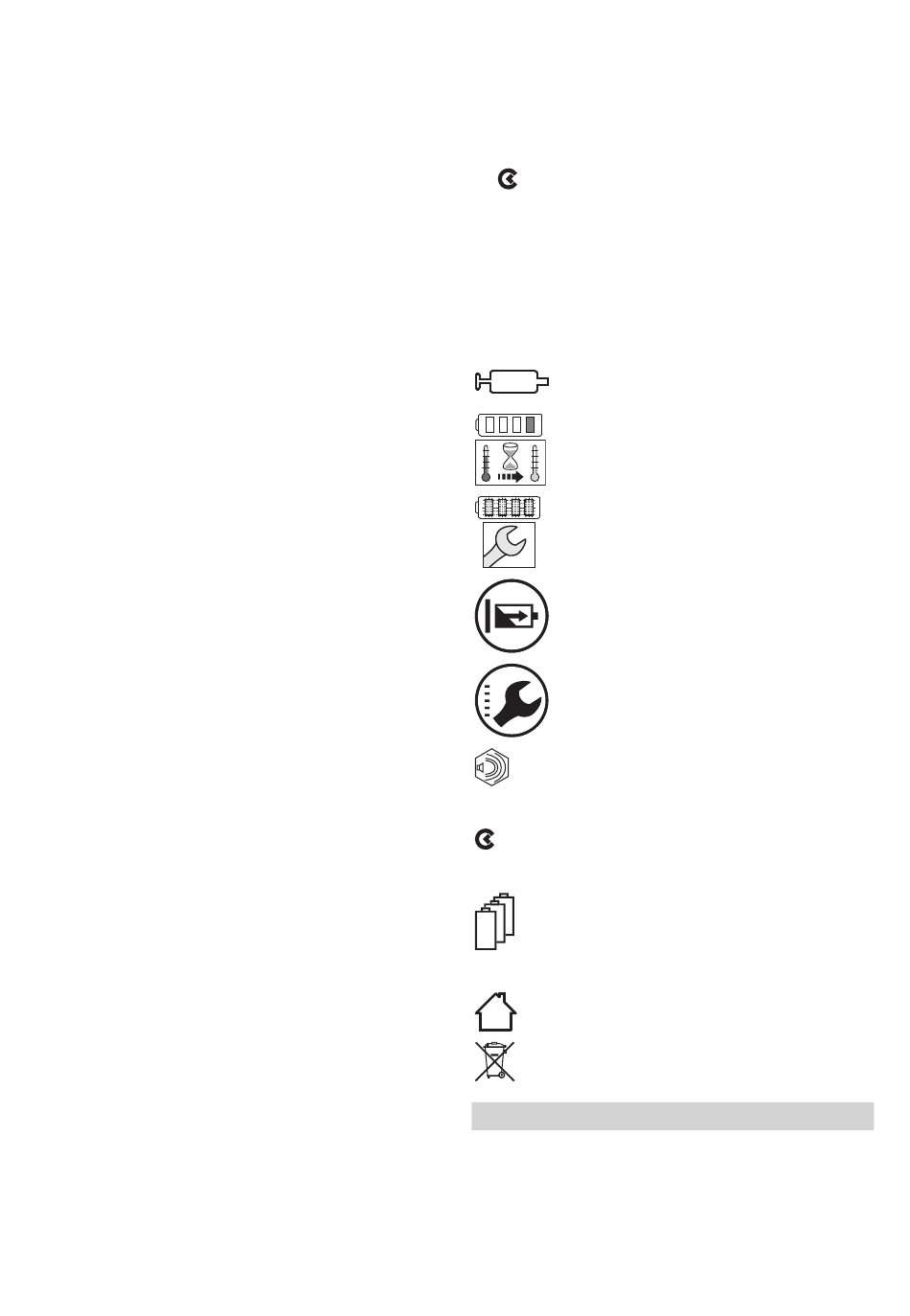

3.2 Symbols
Meanings of symbols that may be on the hedge
trimmer, battery and charger:
This symbol marks the filler opening for
STIHL multi-purpose grease.
1 LED lights up red. The battery is too
warm or too cold.
4 LEDs flash red. There is a fault in the
battery.
The LED lights up green and the LEDs
on the battery light up or flash green.
The battery is charging.
The LED flashes red. There is no elec‐
trical contact between the battery and
the charger or there is a fault in the
battery or in the charger.
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
The battery is equipped with a Bluetooth
radio interface and can be paired with the
STIHL connected app.
The information next to the symbol indi‐
cates the energy content of the battery
according to the cell manufacturer's specifi‐
cation. The energy content available in
operation is lower.
Operate the electric product in a dry place,
indoors only.
Do not dispose of the product with domes‐
tic waste.
4

Safety Precautions

4.1

Warning Symbols

Meanings of warning signs on the hedge trimmer
or battery:
4 Safety Precautions
®
0458-020-9601-A
