Spare Parts - ECOLAB Lubo-DryExx Advanced AB Betriebsanleitung

8.

Spare parts

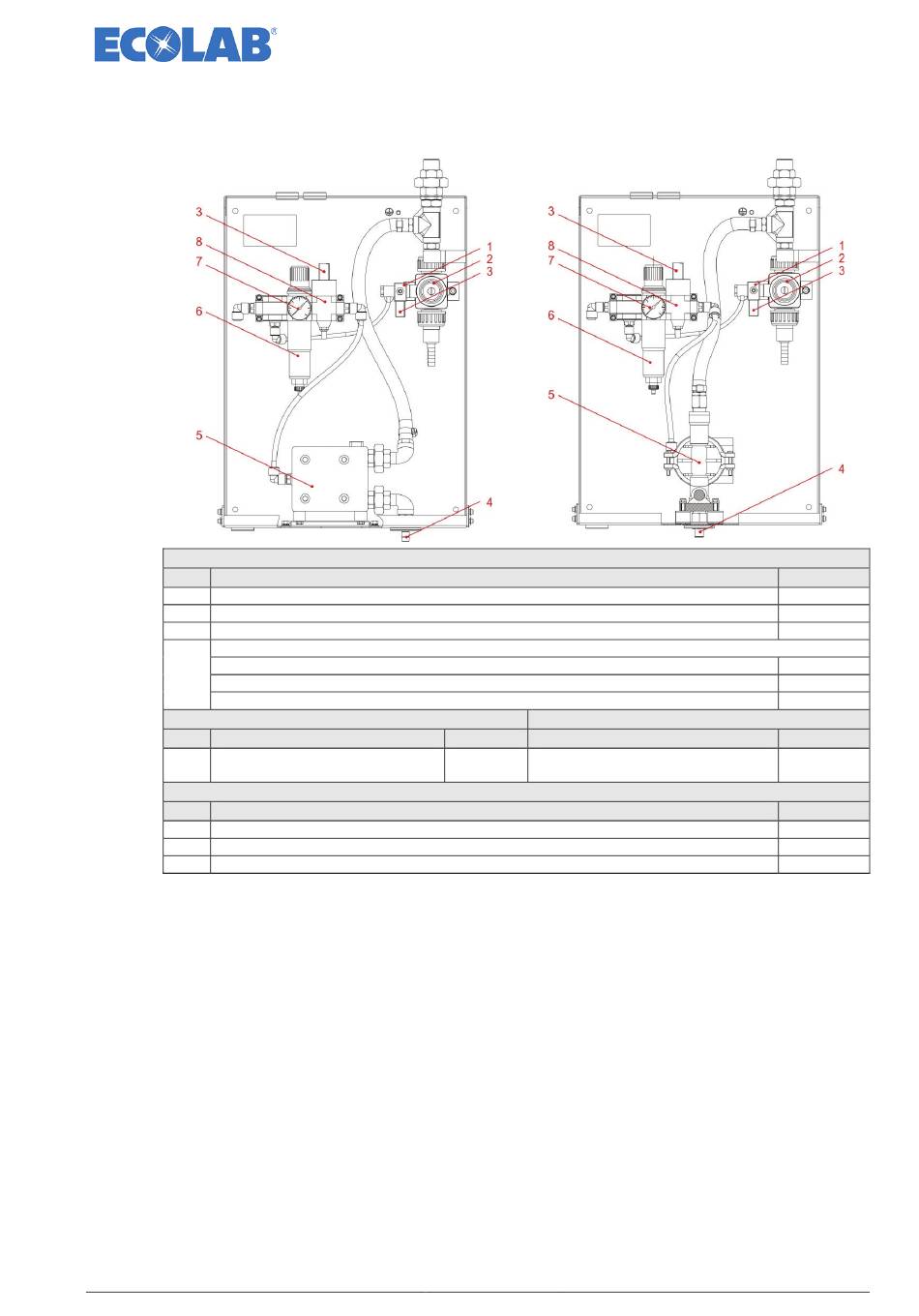

Fig. 8.1
Type 182830 & 182831
Pos Description
1
3/2 way solenoid valve NW1,2 PA/NBR, type 6012, 24 V/DC, 5W
2
2/2 way diapragm valve, DN 15 PP/EPDM
3
Standard Festo equipment socket
Lubricant connection consisting of:
Suction lance l=1125 mm, 12/21 (Accessories, not scope of supply)
4
Suction lance protective cover (Accessories, not scope of supply)
Fabric hose 12/21 PVC (Accessories, not scope of supply)
Type 182830
Pos Description
Diaphragm compressed air pump
5
Almatec type CUBUS 15 ET
Type 182830 & 182831
Pos Description
6
Compressed air filter regulator ¼", Festo.
7
Manometer 0-6 bar, G 1/8",Festo
8
3/2 way solenoid valve ¼", Festo, 24 V/DC, 2W
417102248_DryExx_Advanced_AB
unit type 182830
Fig. 8.2
Type 182831
Article no. Description
417502714 WILDEN Diaphragm pump
PP 1/4"
- 43 -
unit type 182831
Article no.
417704359
415502583
418468065
417400127
Article no.
417502707
Article no.
415503402
415502555
417704357
Rev.: 2-01.15
